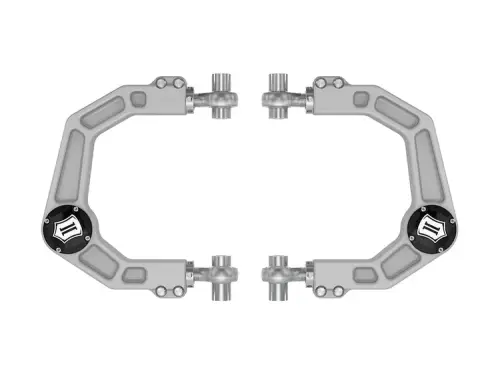

ICON Billet Upper Control Arm Kit for Toyota (1996-04) Tacoma / (1996-02) 4Runner w/ Delta Joint
58500DJ
ICON Billet Upper Control Arm Kit for Toyota Tacoma / 4Runner w/ Delta Joint
Take the performance of your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance. ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning. Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers. The additional droop travel provided by these components translates into superior performance and ride quality for your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Take the performance of your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance. ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning. Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers. The additional droop travel provided by these components translates into superior performance and ride quality for your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Please Call for Availability
1-855-KTPERFORMANCE
Description
Features:
•Direct bolt-in design makes for a simple and straightforward installation
•Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
•CNC machined steel taper adapter
•CNC Machined 6061 Billet Aluminum Construction
•High-Quality PTFE-lined ¾” FK Rod Ends
•On-Vehicle Adjustable For Quick And Precise Alignment
•Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
•Matte Anodized Finish Provides Exceptional Corrosion Resistance
•O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements
•Delta Joint upper control arms carry ICON's exclusive 5 year limited warranty when used in a complete ICON suspension system
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
•Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
Fitment:
1996 - 2002 Toyota 4Runner Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1995 - 2004 Toyota Tacoma Base 4WD Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1995 - 2003 Toyota Tacoma DLX 4WD Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1998 - 2000 Toyota Tacoma Limited Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1998 - 2004 Toyota Tacoma Pre Runner Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1995 - 2000 Toyota Tacoma SR5 4WD Front Upper 1 Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
•Direct bolt-in design makes for a simple and straightforward installation
•Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
•CNC machined steel taper adapter
•CNC Machined 6061 Billet Aluminum Construction
•High-Quality PTFE-lined ¾” FK Rod Ends
•On-Vehicle Adjustable For Quick And Precise Alignment
•Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
•Matte Anodized Finish Provides Exceptional Corrosion Resistance
•O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements
•Delta Joint upper control arms carry ICON's exclusive 5 year limited warranty when used in a complete ICON suspension system
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
•Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
Fitment:
1996 - 2002 Toyota 4Runner Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1995 - 2004 Toyota Tacoma Base 4WD Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1995 - 2003 Toyota Tacoma DLX 4WD Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1998 - 2000 Toyota Tacoma Limited Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1998 - 2004 Toyota Tacoma Pre Runner Front Upper, Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
1995 - 2000 Toyota Tacoma SR5 4WD Front Upper 1 Use Up To 33 (in) x 11.50 (in) Tires with 0 (in) - 3 (in) Suspension Lift 0 (mm) Offset Aftermarket Wheels Recommended
Details
- 58500DJ
- 58500DJ
- 840103431314
- ICON Vehicle Dynamics
- New
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W13.0000” x H8.0000” x L17.0000”
