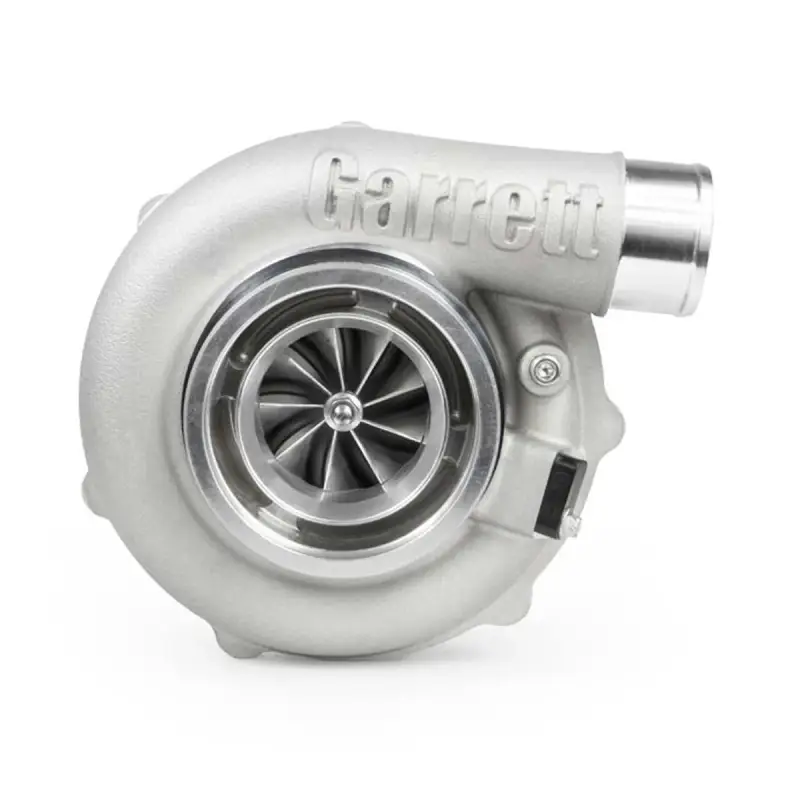

Industrial Injection Garrett G-Series II G30-725 Turbochargers w/ 0.83 A/R V-Band Inlet
934118-5001S
Industrial Injection Garrett G-Series II G30-725 Turbochargers w/ 0.83 A/R V-Band Inlet
High-Performance Turbo for 2.0L - 3.5L Engines | 350-725 HP | Standard Rotation
The Garrett G-Series II G30-725 Turbocharger is designed to deliver maximum performance, faster spool, and superior efficiency for 2.0L - 3.5L engines. This turbo supports 350-725 horsepower, making it an ideal choice for high-performance street builds, track cars, and race applications.
With next-generation compressor aerodynamics, the G-Series II increases flow by up to 10% more than the previous generation. It also retains compatibility with G-Series Gen I housings, ensuring an easy upgrade path for existing users.
Turbine Housing Options
The G30-725 is available in two turbine A/R options, allowing you to fine-tune performance based on your engine setup:
•0.83 A/R (PN: 934118-5001S) – Faster spool, great for street-driven performance builds.
•1.01 A/R (PN: 934118-5002S) – Higher flow, optimized for top-end power in race applications.
High-Performance Turbo for 2.0L - 3.5L Engines | 350-725 HP | Standard Rotation
The Garrett G-Series II G30-725 Turbocharger is designed to deliver maximum performance, faster spool, and superior efficiency for 2.0L - 3.5L engines. This turbo supports 350-725 horsepower, making it an ideal choice for high-performance street builds, track cars, and race applications.
With next-generation compressor aerodynamics, the G-Series II increases flow by up to 10% more than the previous generation. It also retains compatibility with G-Series Gen I housings, ensuring an easy upgrade path for existing users.
Turbine Housing Options
The G30-725 is available in two turbine A/R options, allowing you to fine-tune performance based on your engine setup:
•0.83 A/R (PN: 934118-5001S) – Faster spool, great for street-driven performance builds.
•1.01 A/R (PN: 934118-5002S) – Higher flow, optimized for top-end power in race applications.
Was:
$3,602.99
Sale:
$3,001.99
Save:
17%
Save:
$601.00
Description
Key Features & Benefits
✔ Next-Generation Compressor Aero – Increased efficiency, faster spool, and more power.
✔ Up to 10% More Flow – Compared to Gen I, improving boost response and top-end output.
✔ Direct Gen I Upgrade – Compatible with Gen I turbine and compressor housings for seamless installation.
✔ Pre-Assembled & Calibrated – Comes with a 0.5 bar actuator for precise boost control.
✔ Internal Wastegate – Designed for easy integration with OEM and custom setups.
Technical Specifications
General Specs
•Horsepower Range: 350-725 HP
•Engine Displacement: 2.0L - 3.5L
•Rotation: Standard
•Actuator: Pre-installed and calibrated at 0.5 bar
Compressor Specs
•Inducer: 54mm
•Exducer: 67mm
•Trim: 65
•A/R: 0.70
Turbine Specs (Varies by Selection)
•Inducer: 60mm
•Exducer: 55mm
•Trim: 84
•A/R Options: 0.83 / 1.01
Fitment & Installation
The Garrett G30-725 Turbocharger is built for performance-driven applications, offering multiple A/R options to fine-tune your setup:
•0.83 A/R: Best for quick spool and street-driven performance builds.
•1.01 A/R: Optimized for top-end power and high-boost race applications.
✔ Next-Generation Compressor Aero – Increased efficiency, faster spool, and more power.
✔ Up to 10% More Flow – Compared to Gen I, improving boost response and top-end output.
✔ Direct Gen I Upgrade – Compatible with Gen I turbine and compressor housings for seamless installation.
✔ Pre-Assembled & Calibrated – Comes with a 0.5 bar actuator for precise boost control.
✔ Internal Wastegate – Designed for easy integration with OEM and custom setups.
Technical Specifications
General Specs
•Horsepower Range: 350-725 HP
•Engine Displacement: 2.0L - 3.5L
•Rotation: Standard
•Actuator: Pre-installed and calibrated at 0.5 bar
Compressor Specs
•Inducer: 54mm
•Exducer: 67mm
•Trim: 65
•A/R: 0.70
Turbine Specs (Varies by Selection)
•Inducer: 60mm
•Exducer: 55mm
•Trim: 84
•A/R Options: 0.83 / 1.01
Fitment & Installation
The Garrett G30-725 Turbocharger is built for performance-driven applications, offering multiple A/R options to fine-tune your setup:
•0.83 A/R: Best for quick spool and street-driven performance builds.
•1.01 A/R: Optimized for top-end power and high-boost race applications.
Details
- 934118-5001S
- 934118-5001S
- Industrial Injection
- New
