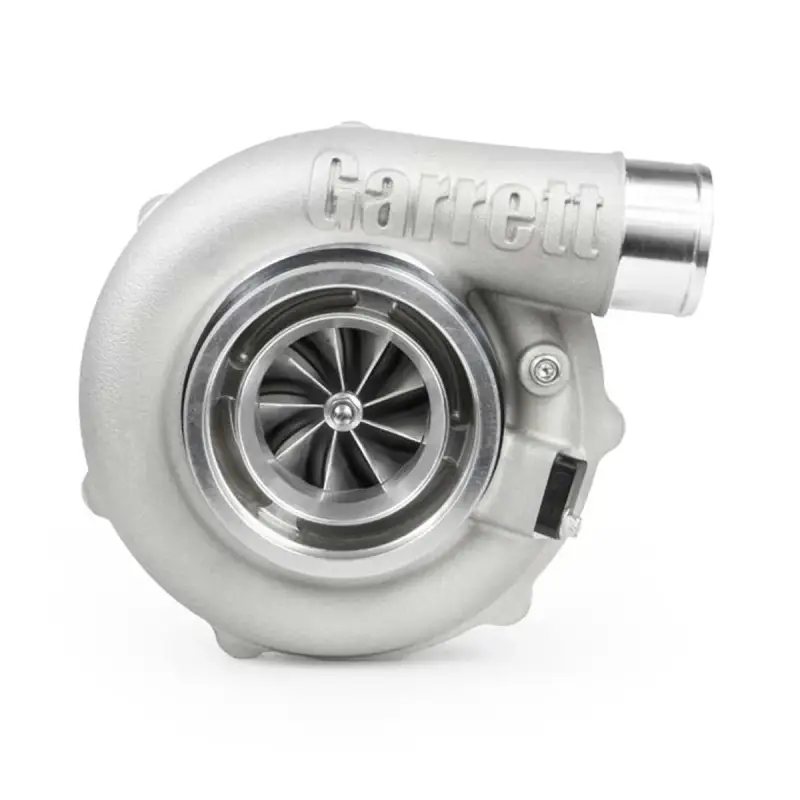

Industrial Injection Garrett G-Series II G30-965 Turbochargers w/ 1.01 A/R V-Band Inlet
934118-5006S
Industrial Injection Garrett G-Series II G30-965 Turbochargers w/ 1.01 A/R V-Band Inlet
High-Performance Turbo for 2.0L - 3.5L Engines | 550-965 HP | Standard Rotation
The Garrett G-Series II G30-965 Turbocharger is engineered for high-performance applications, offering greater airflow, faster spool, and higher efficiency. Designed for 2.0L - 3.5L engines, this turbo supports 550-965 HP, making it an excellent choice for street, track, and racing setups.
The G-Series II features next-generation compressor aerodynamics, delivering up to 10% more flow than the previous generation while retaining compatibility with G-Series Gen I housings for easy upgrades.
Turbine Housing Options
The G30-965 is available with two turbine A/R options, allowing you to fine-tune power delivery based on your needs:
•0.83 A/R (PN: 934118-5005S) – Faster spool, optimized for street-driven performance and quick boost response.
•1.01 A/R (PN: 934118-5006S) – Higher flow, designed for maximum horsepower and top-end performance.
High-Performance Turbo for 2.0L - 3.5L Engines | 550-965 HP | Standard Rotation
The Garrett G-Series II G30-965 Turbocharger is engineered for high-performance applications, offering greater airflow, faster spool, and higher efficiency. Designed for 2.0L - 3.5L engines, this turbo supports 550-965 HP, making it an excellent choice for street, track, and racing setups.
The G-Series II features next-generation compressor aerodynamics, delivering up to 10% more flow than the previous generation while retaining compatibility with G-Series Gen I housings for easy upgrades.
Turbine Housing Options
The G30-965 is available with two turbine A/R options, allowing you to fine-tune power delivery based on your needs:
•0.83 A/R (PN: 934118-5005S) – Faster spool, optimized for street-driven performance and quick boost response.
•1.01 A/R (PN: 934118-5006S) – Higher flow, designed for maximum horsepower and top-end performance.
Was:
$3,480.99
Sale:
$2,899.99
Save:
17%
Save:
$581.00
Description
Key Features & Benefits
✔ Next-Generation Compressor Aero – Increased efficiency, faster spool, and more power.
✔ Up to 10% More Flow – Compared to Gen I, improving boost response and top-end output.
✔ Direct Gen I Upgrade – Compatible with Gen I turbine and compressor housings for seamless installation.
✔ Pre-Assembled & Calibrated – Comes with a 0.5 bar actuator for precise boost control.
✔ Internal Wastegate – Designed for easy integration with OEM and custom setups.
Technical Specifications
General Specs
•Horsepower Range: 550-965 HP
•Engine Displacement: 2.0L - 3.5L
•Rotation: Standard
•Actuator: Pre-installed and calibrated at 0.5 bar
Compressor Specs
•Inducer: 62mm
•Exducer: 76mm
•Trim: 65
•A/R: 0.72
Turbine Specs (Varies by Selection)
•Inducer: 60mm
•Exducer: 55mm
•Trim: 84
•A/R Options: 0.83 / 1.01
Fitment & Installation
The Garrett G30-965 Turbocharger is engineered for performance enthusiasts looking to push their build to the next level:
•0.83 A/R: Best for quick spool and responsive street performance.
•1.01 A/R: Optimized for maximum airflow and high-boost applications.
✔ Next-Generation Compressor Aero – Increased efficiency, faster spool, and more power.
✔ Up to 10% More Flow – Compared to Gen I, improving boost response and top-end output.
✔ Direct Gen I Upgrade – Compatible with Gen I turbine and compressor housings for seamless installation.
✔ Pre-Assembled & Calibrated – Comes with a 0.5 bar actuator for precise boost control.
✔ Internal Wastegate – Designed for easy integration with OEM and custom setups.
Technical Specifications
General Specs
•Horsepower Range: 550-965 HP
•Engine Displacement: 2.0L - 3.5L
•Rotation: Standard
•Actuator: Pre-installed and calibrated at 0.5 bar
Compressor Specs
•Inducer: 62mm
•Exducer: 76mm
•Trim: 65
•A/R: 0.72
Turbine Specs (Varies by Selection)
•Inducer: 60mm
•Exducer: 55mm
•Trim: 84
•A/R Options: 0.83 / 1.01
Fitment & Installation
The Garrett G30-965 Turbocharger is engineered for performance enthusiasts looking to push their build to the next level:
•0.83 A/R: Best for quick spool and responsive street performance.
•1.01 A/R: Optimized for maximum airflow and high-boost applications.
Details
- 934118-5006S
- 934118-5006S
- Industrial Injection
- New
