Baja Designs OnX6+ White Straight LED Light Bar - Universal (50 Inch, Driving/Combo Light Pattern, Clear Lens)

SKU: 455003WT

Baja Designs OnX6+ White Straight LED Light Bar - Universal (50 Inch, Driving/Combo Light Pattern, Clear Lens)

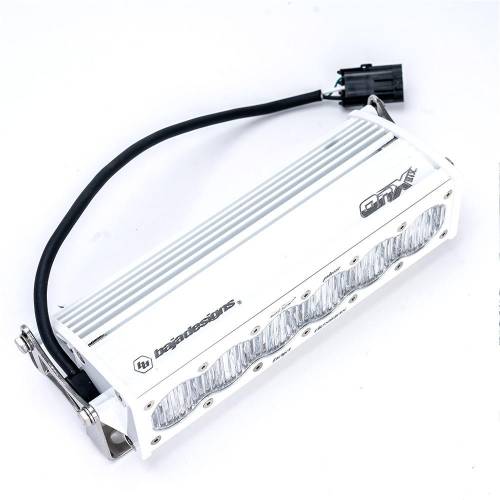

The OnX6+ white LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

NOTE: This light does NOT include a harness To access the High/low light function the applicable wiring harness is 640119. *640115 On/Off OnX6+ wiring harness is only applicable for 10-20in. OnX6+. *640119 OnX6+ wiring harness is applicable for 30-50in. OnX6+.

Pricing: $2,008.99

Description
Video
Details
Shipping
Documents
Reviews

Description

NOTE: Does NOT include a harness. Add the applicable wiring harness 640115 (On/Off 3-pin) or to access the hi/lo function 640119 (On/Off w/mode switch) for this light. *640115 On/Off OnX6+ wiring harness is only applicable for 10-20in. OnX6+. 640119 OnX6+ wiring harness must be used for 30-50in. OnX6+.

Specifications
Amperage Rating (A) 28.2 (High)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 39,430 (High)
Description Straight; Driving/Combo; Clear
Housing Color White
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam
Lighting Quantity 30
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 50 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 355 (High)
Wiring Harness Included No

Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Warranty: Limited Lifetime Warranty
