DieselSite PSD Branch Tube Line Lock for Ford (2003-04) 6.0L Power Stroke
BTL60
DieselSite PSD Branch Tube Line Lock for Ford 6.0L Power Stroke

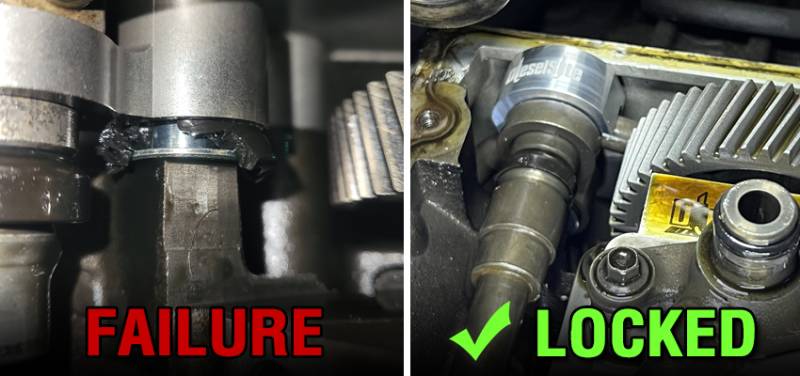

The 2003-2004 Ford 6.0L PSD came equipped with a branch tube that connected to the block with a rubber grommet and bolt. This rubber grommet holds the branch tube in place while the j-tube snaps with a quick connect style connection to the branch tube. As the rubber dry rots and wears out or the bolt vibrates loose, the branch tube breaks free of the quick connect (this connection was never intended to carry the load of the pressure developed in the HPOP system), and causes a failure to run and start.
The 2003-2004 Ford 6.0L PSD came equipped with a branch tube that connected to the block with a rubber grommet and bolt. This rubber grommet holds the branch tube in place while the j-tube snaps with a quick connect style connection to the branch tube. As the rubber dry rots and wears out or the bolt vibrates loose, the branch tube breaks free of the quick connect (this connection was never intended to carry the load of the pressure developed in the HPOP system), and causes a failure to run and start.
Was:
$68.99
Sale:
$59.99
Save:
13%
Save:
$9.00
Description
THE ISSUE:
The force in which the branch tube breaks free has everything to do with when the failure happens. If while under load and the force is the greatest, the branch tube can actually break the rear case cover resulting in catastrophic failure.
To replace the failed or worn rubber grommet requires removal of the engine or transmission and removing the rear engine case cover. To replace the branch tube requires all that work and then much more.
THE DIESELSITE SOLUTION:
This part repairs a failed rubber grommet, prevents a bolt from vibrating loose, and completely prevents a quick connect failure from ever happening in the first place.

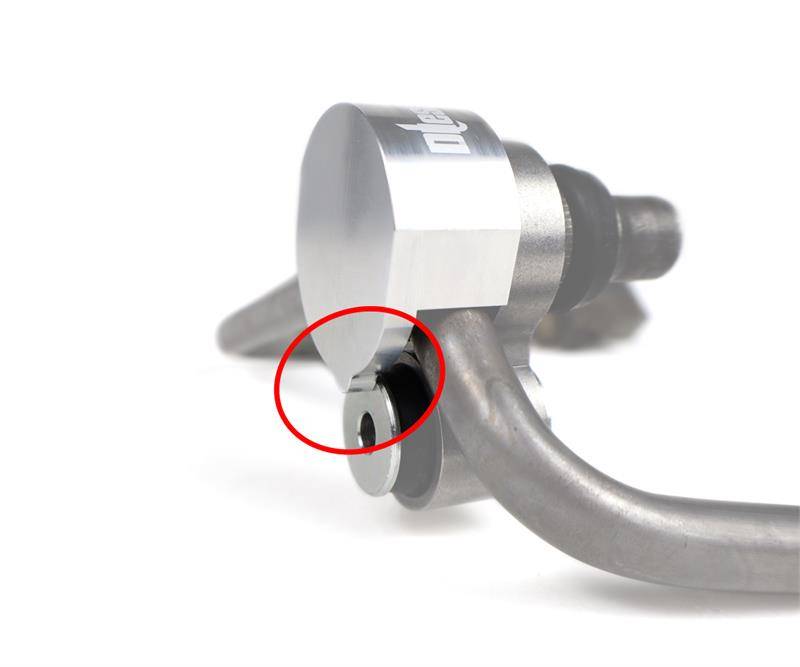

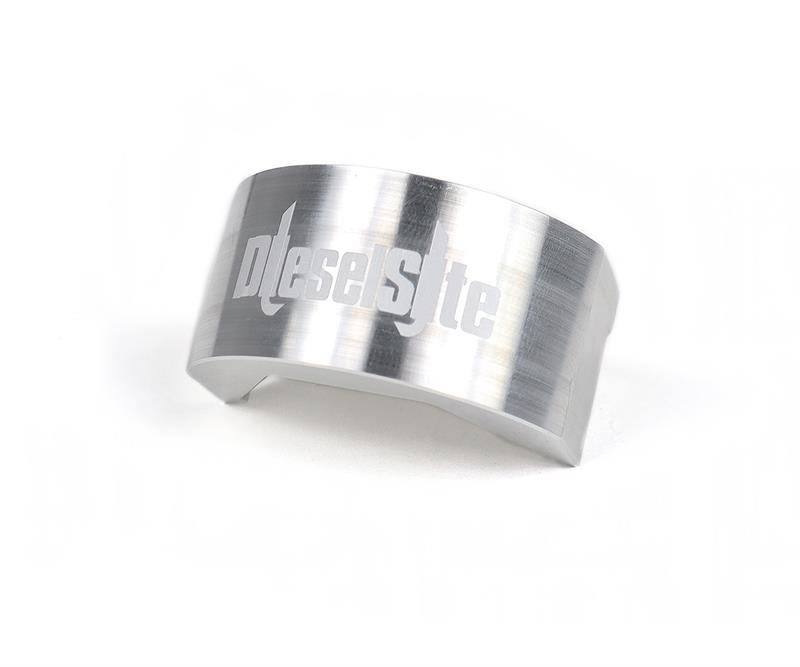

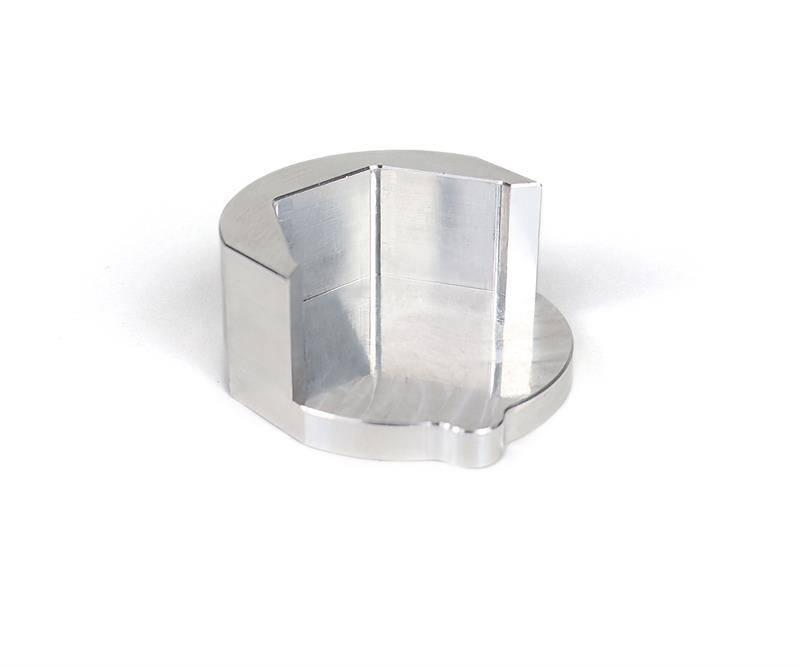

Installation involves removing the high pressure oil pump (HPOP) cover, slipping the line lock over the branch tube hex and then tapping into place until it seats. It is machined to be a perfect fit over the branch tube hex, aligning with the branch tubes and grommet bolt and will only seat in one position. The cover prevents the lock from ever unseating or lifting after installation so it cannot drop into the motor.
If you own a 2003-2004 Ford 6.0L PSD, this small and easy to install part will potentially save you thousands in repairs as this failure will happen to some degree on all of these models.
The force in which the branch tube breaks free has everything to do with when the failure happens. If while under load and the force is the greatest, the branch tube can actually break the rear case cover resulting in catastrophic failure.
To replace the failed or worn rubber grommet requires removal of the engine or transmission and removing the rear engine case cover. To replace the branch tube requires all that work and then much more.
THE DIESELSITE SOLUTION:
This part repairs a failed rubber grommet, prevents a bolt from vibrating loose, and completely prevents a quick connect failure from ever happening in the first place.
Installation involves removing the high pressure oil pump (HPOP) cover, slipping the line lock over the branch tube hex and then tapping into place until it seats. It is machined to be a perfect fit over the branch tube hex, aligning with the branch tubes and grommet bolt and will only seat in one position. The cover prevents the lock from ever unseating or lifting after installation so it cannot drop into the motor.
If you own a 2003-2004 Ford 6.0L PSD, this small and easy to install part will potentially save you thousands in repairs as this failure will happen to some degree on all of these models.
Details
- BTL60
- BTL60
- DieselSite
- New
Categories
Shipping Information
- Item Requires Shipping
- 1.0 lbs.
- W5.0000” x H2.0000” x L12.0000”
- This item ships in its own box.
