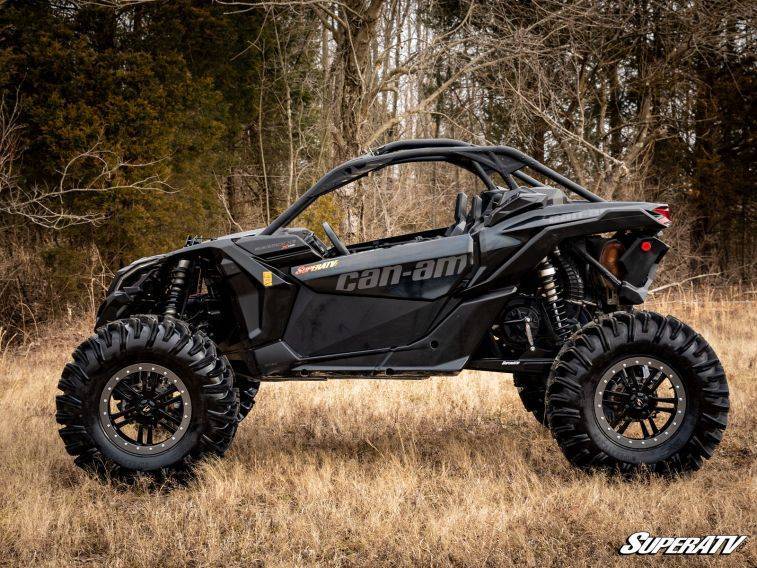

SuperATV 6" Lift Kit for Can-Am (2017-24) Maverick X3 (Non-Smart-Lok, Rhino 2.0 Axles)

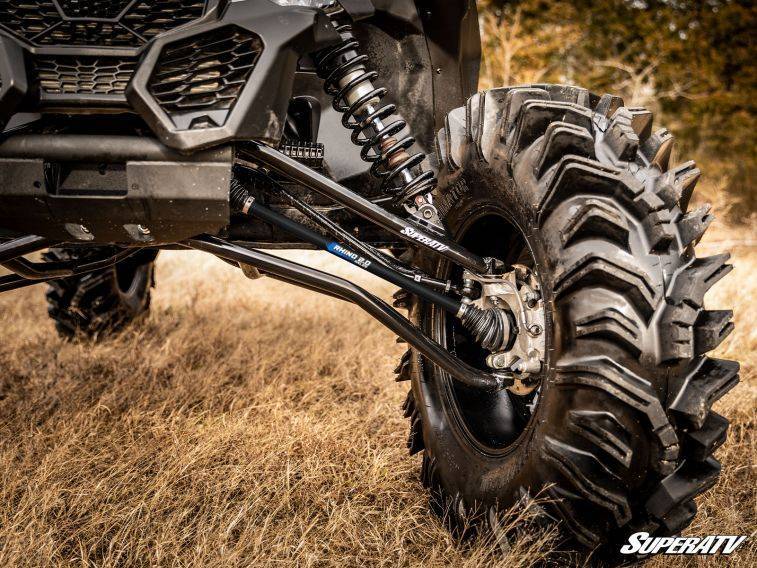

High Clearance Chromoly A-arms
We make our A-arms with 1-1/4” chromoly steel tubing for superior strength and performance. The design and tube bends give them 1-1/2” of additional high clearance. Plus, they come with preadjusted pivot blocks to give you perfect camber right out of the box.

Bulletproof Suspension
The boxed trailing arms and radius arms are made with high-strength, 1/8” steel plating that makes them the more capable in the most extreme riding conditions.

Upgrade to X300
Rhino X300 axles use a 300M steel shaft and maximized CVs to give you superior performance and strength. The unique properties of 300M allow it to flex under load without breaking to absorb force that would normally destroy your CVs, diff, or transmission. It’s a tougher axle that also saves your drivetrain — it’s exactly what you need to go big.

Backed by a Lifetime Warranty
All suspension components including tie rods, A-arms, trailing arms, radius arms, and lift brackets are backed by a Lifetime Warranty. Ride your UTV where you want the way you want — SuperATV’s got your back.

KIT INCLUDES

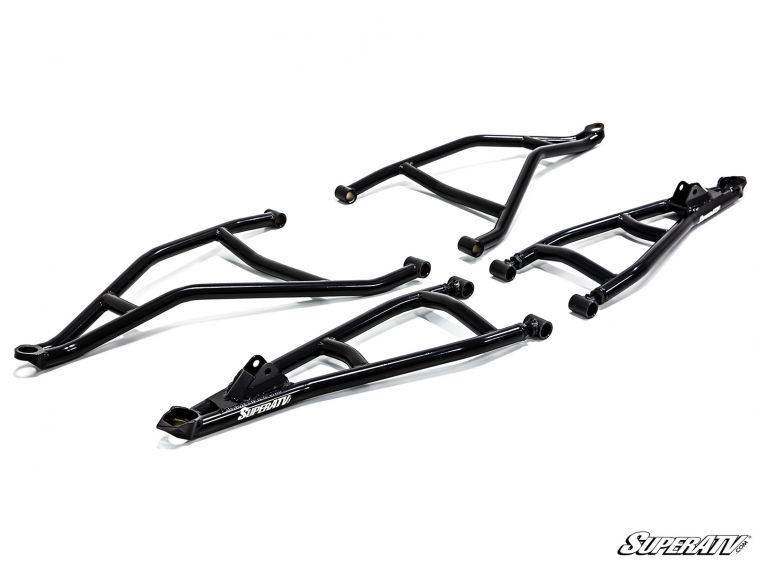

•Front high clearance A-arms (chromoly)

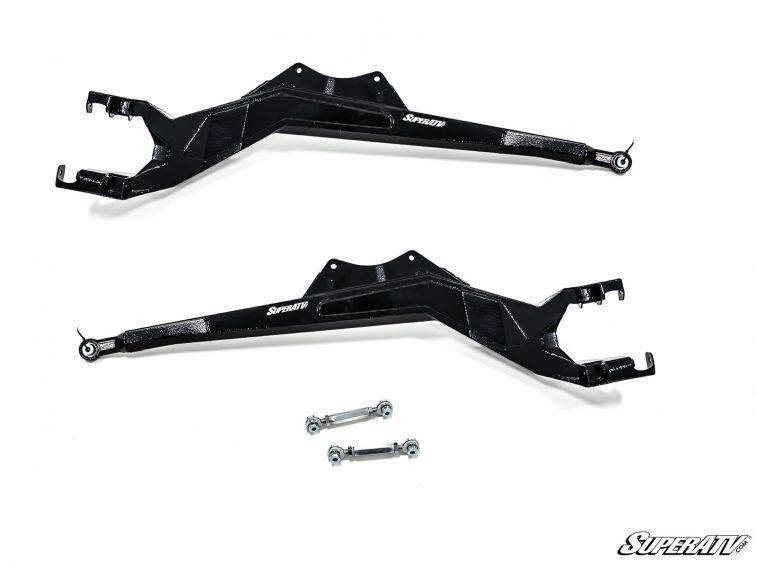

•Rear trailing arms

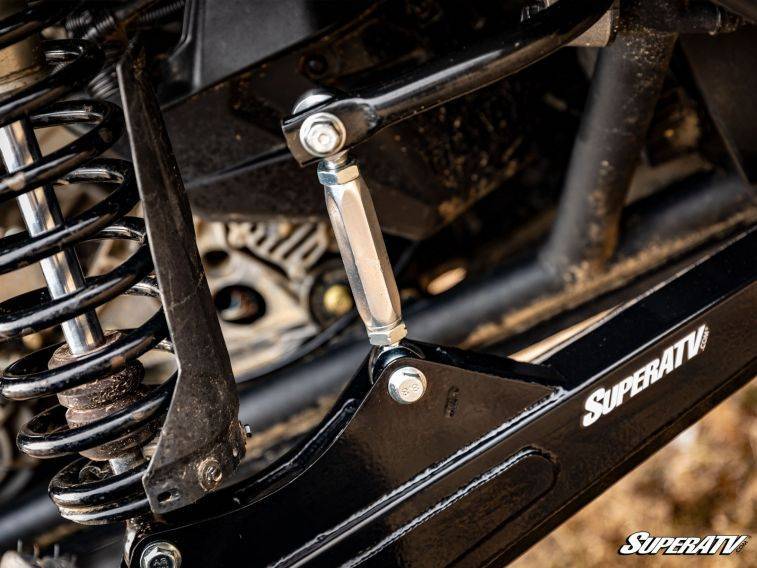

•Sway bar links (billet aluminum)

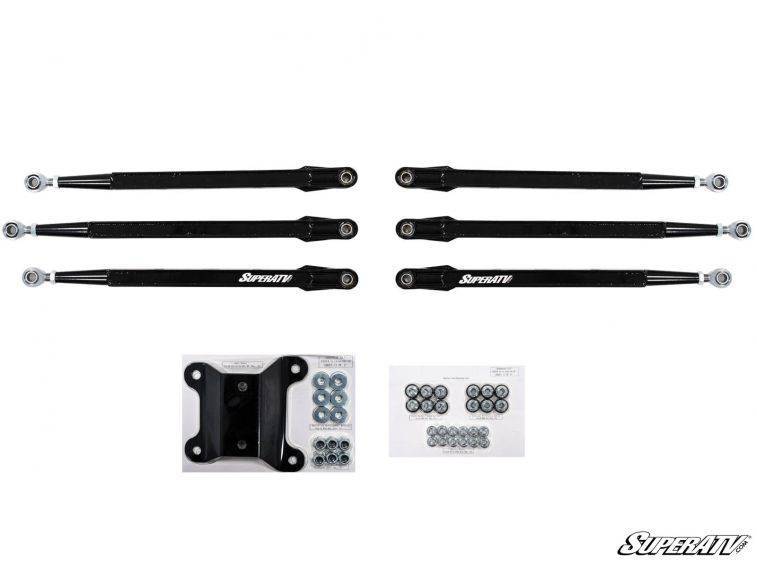

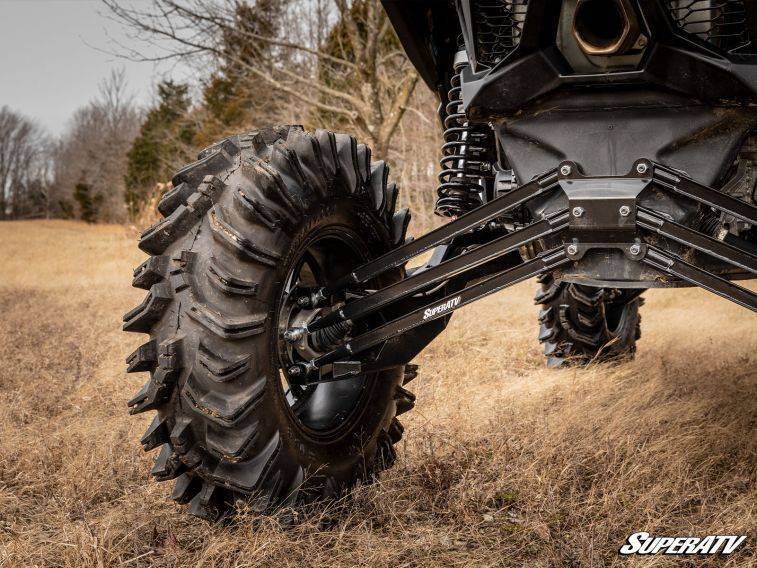

•Rear radius arms

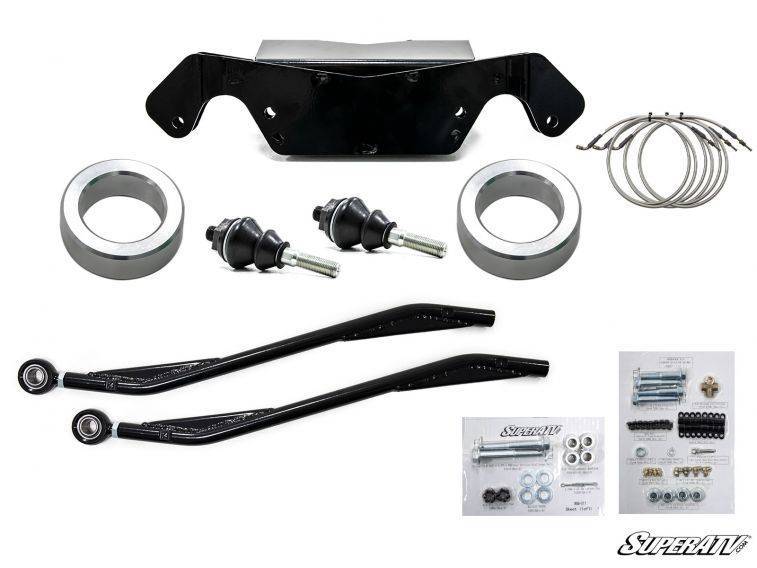

•Shock brackets and spacers
•4 SuperATV axles (X300 or Rhino 2.0)
•Heavy duty tie rod kit
•Extended brake lines
•Sway bar assembly and links
•All hardware and installation instructions
•Note: 1" wheel spacers required when running stock wheels

FEATURES

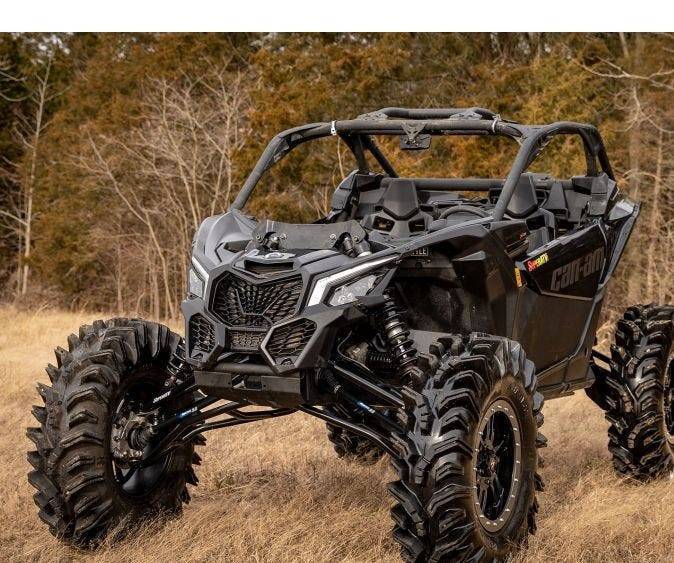

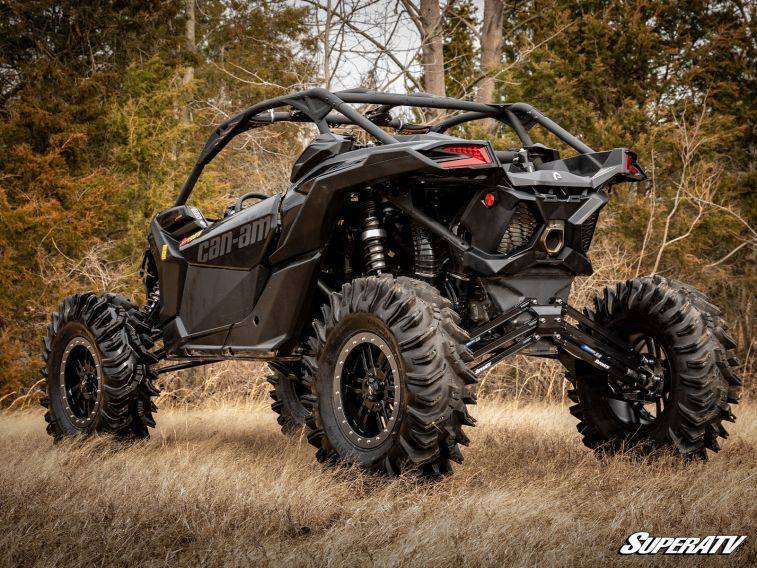

•True 6” of lift
•20” total ground clearance (14” stock)
•Clearance for up to 38” tires (up from 30” stock)
•6” wider stance for increased stability (on 64" models)
•Compatible with OEM and SuperATV heavy-duty ball joints
•Includes 4 SuperATV axles (Rhino 2.0)
•Preadjusted pivot blocks give you perfect camber out of the box
•Powder coated for increased durability and UV resistant
•Backed by a Lifetime Warranty!
X300 Axle Features:
•300M alloy steel shaft
•CV components made of 300M and 4340 alloy steel
•Maximized CV, spider, and cage size for superior strength
•Shaft flexes to absorb impact
•Reduces strain on CVs and drivetrain components
•CVs packed with proprietary high-temp grease
•Backed by a 3-Year Warranty — the industry’s best axle warranty
Rhino 2.0 Features:
•100% stronger than stock
•Utilizes the Rhino 2.0 Formula
•Size: Massive 4mm increase in size!
•Materials
•Heat Treatment
•Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
•Industry leading 18-month warranty
•Field and lab tested for extreme strength and endurance
•CAD drawn for expert precision

FITMENT
Can-Am Maverick X3 900 : 2018
Can-Am Maverick X3 Turbo : 2017-2020
Can-Am Maverick X3 Turbo R : 2018-2020
Can-Am Maverick X3 DS Turbo R : 2021
Can-Am Maverick X3 DS Turbo 64 : 2022+
Can-Am Maverick X3 DS Turbo RR 64 : 2022+
Can-Am Maverick X3 X DS Turbo R : 2017-2020
Can-Am Maverick X3 X DS Turbo RR : 2020-2021
Can-Am Maverick X3 X DS Turbo RR 64 : 2022+
Can-Am Maverick X3 X MR Turbo : 2018-2021
Can-Am Maverick X3 X MR Turbo RR 64 : 2022+
Can-Am Maverick X3 X RC Turbo RR 64 : 2022+
Can-Am Maverick X3 MAX Turbo : 2017-2020
Can-Am Maverick X3 MAX Turbo R : 2018-2020
Can-Am Maverick X3 MAX DS Turbo R : 2021
Can-Am Maverick X3 MAX DS Turbo 64 : 2022+
Can-Am Maverick X3 MAX DS Turbo RR 64 : 2022+
Can-Am Maverick X3 MAX X DS Turbo : 2017-2019
Can-Am Maverick X3 MAX X DS Turbo R : 2020
Can-Am Maverick X3 MAX X DS Turbo RR 64 : 2022+

NOTE:
•Does NOT fit X RS or 72" models
•1" wheel spacers required when running stock wheels
•Front Sway bar and links will not be re-installed with lift
•If using OEM ball joints, a 28” or 30” limit strap is required
•If using SuperATV ball joints, a 26” limit strap is required
