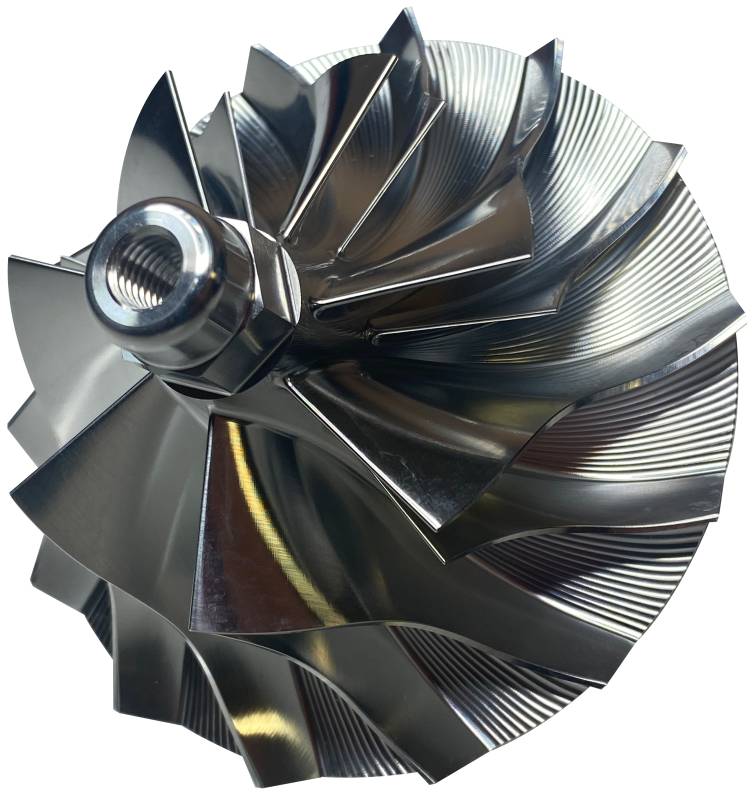

AVP Boost Master Quick Spool Billet Compressor Wheel, Ford (2005-07) 6.0L Power Stroke (7+7 Blade)

TCW605-7
Brand new performance billet compressor wheel for the Ford Power Stroke 6.0L GT3788VA Stock Garrett Turbochargers. The wheel comes pre-balanced and ready to install.
NOTE: This product has the following shipping restriction(s):
  • Cannot ship to California, Colorado or New York
Was: $199.99
Sale: $174.99
Save: 13%
Save: $25.00

Customize Your Item

Add a Turbine Wheel & Shaft
Add a Vane Kit
Qty:
NOTE: This product has the following shipping restriction(s):
  • Cannot ship to California, Colorado or New York
Free Shipping

Description

Brand new performance billet compressor wheel for the Ford Power Stroke 6.0L GT3788VA Stock Garrett Turbochargers. The wheel comes pre-balanced and ready to install.

These billet compressor wheels are much stronger than cast compressor wheels and are designed to flow more air. With a more aggressive blade design and the nose and hub designed to be significantly smaller allowing for larger blade size. The increase of blade surface area allows them to flow more air into the engine. This more efficient wheel lowers the intake temperatures to give you more horsepower and allowing you to stay in the throttle longer.

•Will not fit 2003-04 (build date 10/04 and before).


Special Note: This turbo has a reverse thread - meaning you turn the compressor wheel to the right to loosen. No need to torque the Wicked Wheel on. Simply snug the Wicked Wheel until it fully seats. It will self-tighten to full torque.


Before Ordering: When turbo re manufacturing facilities rebuild the 05-07 turbos, they almost always cut the compressor cover to clean up damages and scratches and then install 03 compressor wheels. This is a VERY common practice. Even turbos bought from Ford for an 05-07 truck will most likely have an 03 wheel installed. If your turbo has ever been out of the truck for repair, or you bought your truck used and don't know the history, you must measure the inducer of the compressor wheel before ordering. The 03 style wheel measures about 59mm and the 05 style measures about 56mm.

****If you do not have access to a caliper or micrometer, the part number of the OEM wheel is printed onto the back of the wheel. Remove the wheel and look for the part number. You may need to use brake parts cleaner to clean off any oil to read it. Do not use anything other than brake parts cleaner. Acetone or similar cleaners will remove the part number. The '03 wheel part number is 722142-0020M. The '05 wheel part number is 722142-0025M.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.5 lbs.
  • W5.0000” x H3.0000” x L5.0000”
  • Free Shipping
