Duramax LB7 & LLY FICM Diagnosis and Diamond T Upgrade Guide

Understanding the FICM in Your LB7 and LLY Duramax

The Fuel Injection Control Module (FICM) is a critical component in 2001–2005 Duramax LB7 and LLY engines. It regulates the voltage sent to your injectors, ensuring precise fuel delivery and optimal engine performance. When the FICM fails, it can leave your truck with hard starts, rough running, or worse-stranded and in need of a tow.

Common Symptoms of a Failing FICM

  • Hard starts or no start: Can be worse when cold or when hot, the engine may crank but not fire up, or require multiple attempts to start.
  • Rough idle and misfires: Noticeable shaking, stumbling, or uneven idle, sometimes accompanied by injector circuit codes (P0201–P0208, P2146, P2149).
  • Reduced power and sluggish acceleration: Loss of responsiveness or hesitation under load.
  • Excessive white or black smoke: Incomplete combustion from poor injector control.
  • Check Engine Light (CEL): Codes like P0611 (FICM performance) or multiple injector circuit codes may appear.
  • Poor fuel economy: Inefficient fuel delivery increases consumption.

If you notice these symptoms, especially in combination, your FICM may be failing and should be tested or replaced promptly to avoid further engine damage.

How to Diagnose FICM Issues

  1. Check Battery Voltage: Low voltage can mimic FICM failure. Ensure batteries read at least 12.6V (off) and 13.7–14.7V (running).
  2. Measure FICM Output: Use a multimeter at the FICM test points. Normal is 48–50V; below 45V indicates a problem.
  3. Scan for Trouble Codes: Use an OBD-II scanner for codes like P0611, P0201–P0208, P2146, P2149.
  4. Inspect Wiring and Connectors: Look for corrosion, loose pins, or damaged wires near the FICM and injectors.
  5. Bench Test (if needed): Remove the module and have it tested if voltage and wiring checks are inconclusive.

Addressing these steps helps prevent unnecessary injector or pump replacements and ensures you’re fixing the real issue.

Why Upgrade to a Diamond T Remanufactured FICM?

When it’s time for a replacement, not all FICMs are created equal. Diamond T remanufactured FICMs for the LB7 and LLY Duramax are engineered to exceed OEM standards and address all known failure points:

  • Completely overhauled and upgraded: Every unit is rebuilt with premium components for long-term durability and reliability.
  • Handles modifications and tunes: Designed to support performance upgrades, heavy towing, and aftermarket tuning without skipping a beat.
  • Plug-and-play installation: No dealer programming required; simply swap and go.
  • Free programming to latest calibrations: Ensures compatibility and peak performance.
  • Lifetime warranty: Drive with confidence knowing your investment is protected.
  • No rebuildable core required: Hassle-free core refund process.
  • American made: Quality you can trust for your Chevy or GMC Duramax.

Whether you’re dealing with a failing FICM or simply want peace of mind before a long trip, Diamond T’s reman units are the trusted choice for reliability and performance.

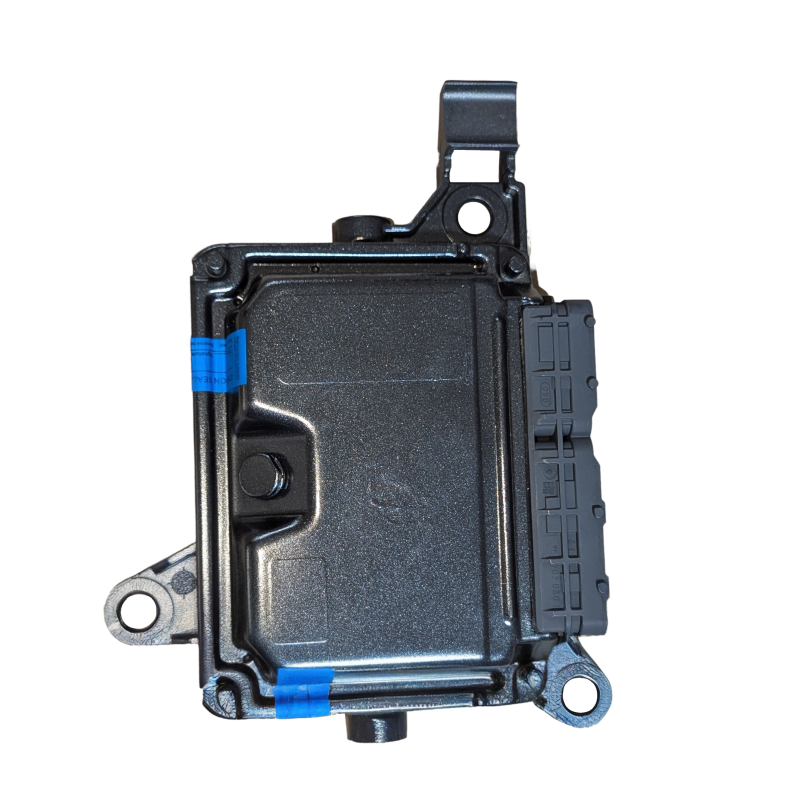

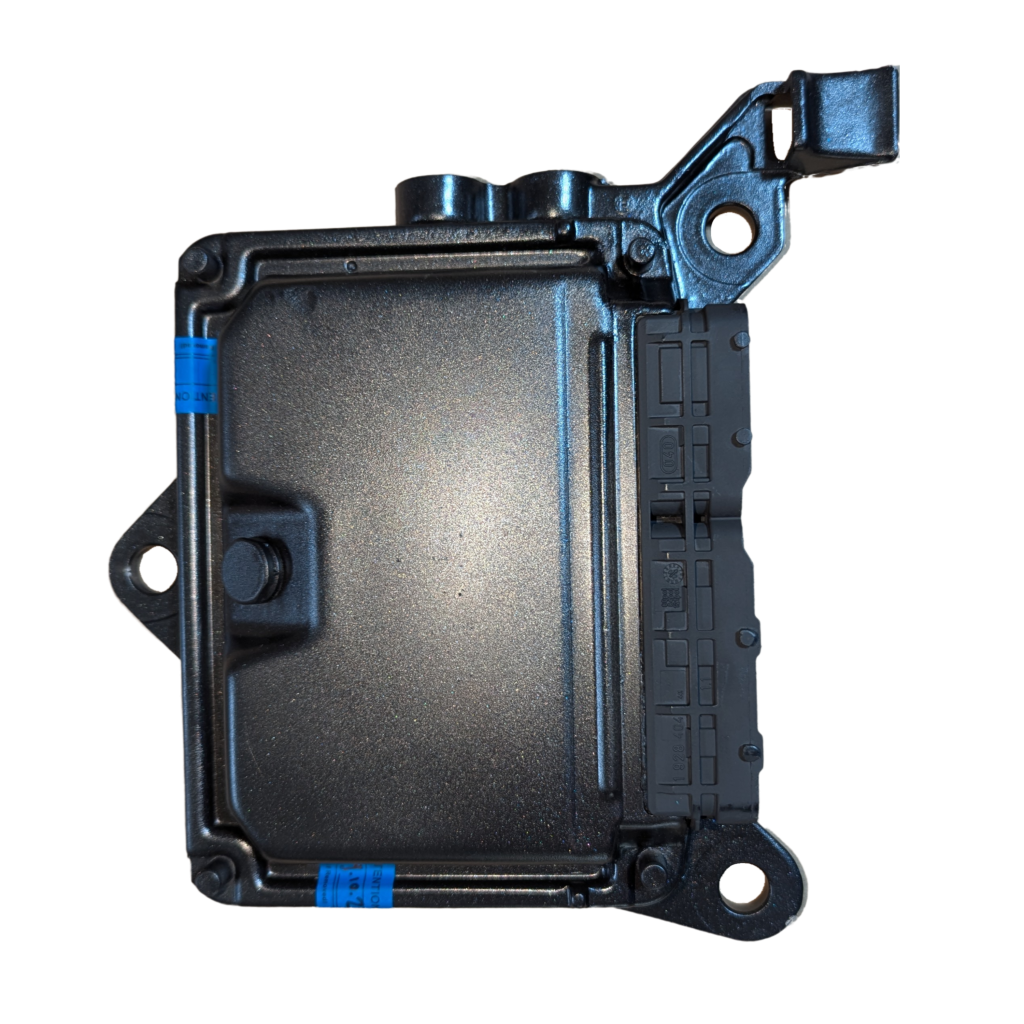

Diamond T Remanufactured FICM

Conclusion

A failing FICM can leave your LB7 or LLY Duramax with hard starts, rough running, and costly downtime. By diagnosing issues early and upgrading to a Diamond T remanufactured FICM, you restore reliability, support future modifications, and protect your investment for the long haul.
