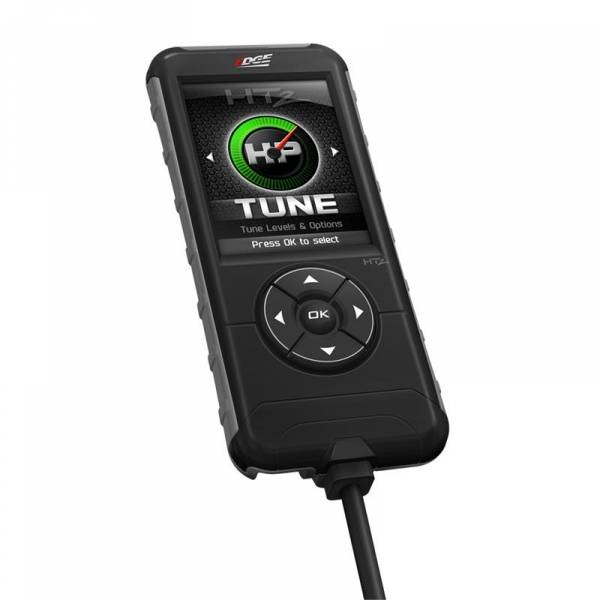

Edge Products EvoHT2, Dodge Gas And Diesel (1999-13) Ram

The EvoHT2 is a premium hand-held performance tuner from Edge Products. The EvoHT2 was developed specifically to give you the most power at the best price, with industry leading service and quality that comes standard with every Edge product. With the Edge EvoHT, you literally hold the power to unlock the hidden potential of your truck or SUV’s power and fuel economy in the palm of your hand!

FEATURES

• Improves fuel economy and towing capabilities
• Installs in minutes with no tools required
• Complete drivetrain tuning for your 2003 - 2012 Dodge Cummins
• Automatic transmission optimization
• Speedometer calibration for axle gear and tire size changes from 22.5" - 42"
• Advanced tuning selections from rev limits to shift points
• Monitor engine and transmission parameters
• Read and clear diagnostic trouble codes

PERFORMANCE
The EVOHT is loaded with multiple power levels for each application. Power levels range from mild to wild. Each level is designed for a specific type of requirement. There will be a mileage level, tow level, driving level, performance level, and Extreme level. The levels will vary on each make and model.



2010-12 6.7L
Programming: (Peak to Peak gains)
1. Economy Gain: 25 HP / 75 TQ
2. Tow Gain: 45 HP / 145 TQ
3. Extreme Gain: 70 HP / 190 TQ
4. Hot Gain: 95 HP / 270 TQ

Custom Options
•Tire Size 22.5 – 42”
•Axle Ratio (2.00 – 10.00)


2007.5-09 6.7L
Programming: (Peak to Peak gains)
1. Tow Gain: 35 hp \ 130 tq
2. Economy Gain: 60 hp \ 180 tq
3. Extreme Gain: 85 hp \ 235 tq
4. Hot Gain: 125 hp \ 340 tq

Custom Options
•Rev Limiter (Stock, or raised to 3600)
•Speed Limiter (110 - 152)
•Tire Size (23 – 42”)
•Axle Ratio (2.00 – 10.00)
•Engine idle up (STK – 1500 RPM)
•TPMS Adjustment (26 – 75 PSI)


2006-07 610 5.9L
Programming: (Peak to Peak gains)
1. Tow Gain: 55 HP / 150 TQ
2. Economy Gain: 80 HP / 215 TQ
3. Extreme Gain: 115 HP / 300 TQ
4. Hot Gain: 175 HP / 470 TQ

Custom Options:
•Tire Size (23 – 42”)
•Axle Ratio (2.00 – 10.00)
•Engine idle up (STK – 1500 RPM)
•TPMS Adjustment (26 – 75 PSI)


2004-05 325 Diesel
Programming: (Peak to Peak gains)
1. Tow Gain: 55 HP / 130 TQ
2. Economy Gain: 80 HP / 185 TQ
3. Extreme Gain: 115 HP / 275 TQ
4. Hot Gain: 175 HP / 430 TQ

Custom Options:
•Tire Size (22.5 – 42”)
•Engine idle up (STK – 1500 RPM)


2003-04 305 5.9L
Programming: (Peak to Peak gains)
1. Tow Gain: 25 HP / 110 TQ
2. Economy Gain: 70 HP / 165 TQ
3. Extreme Gain: 95 HP / 220 TQ
4. Hot Gain: 120 HP / 340 TQ

Custom Options:
•Tire Size (22.5 – 42”)
•Engine idle up (STK – 1500 RPM)


SCAN TOOL/DIAGNOSTICS
The EvoHT is a full functioning scan tool that reads and clears diagnostic trouble codes

EXPANDABLE TUNING
The EvoHT contains advanced tunes which are available for download and purchase on Edge’s internet update site including:
• Tunes compatible with hard parts such as cold air intake, exhaust, air filter, and throttle body spacer
• Advanced transmission tuning to further adjust shift schedules and parameters within each shift point


INTERNET UPDATEABLE
The EvoHT is internet updateable via the built-in USB port. Simply plug in and update your EvoHT for the latest updates, software, and calibration files. (in compliance with all CARB requirements regarding downloadable information)

* Results and feature set may vary based on vehicle make, model and aftermarket upgrades on the vehicle. Read all instructions before installation and/or operation of this product.

CARB/EPA COMPLIANCE
CARB certification pending. CARB E.O testing currently in progress.
