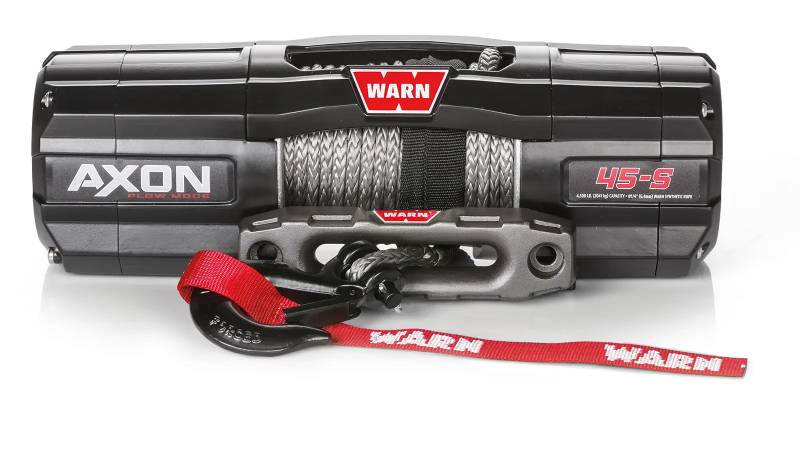

Warn AXON 45-S Powersports Winch with Plow Mode, 4,500 lb Synthetic Rope
110240

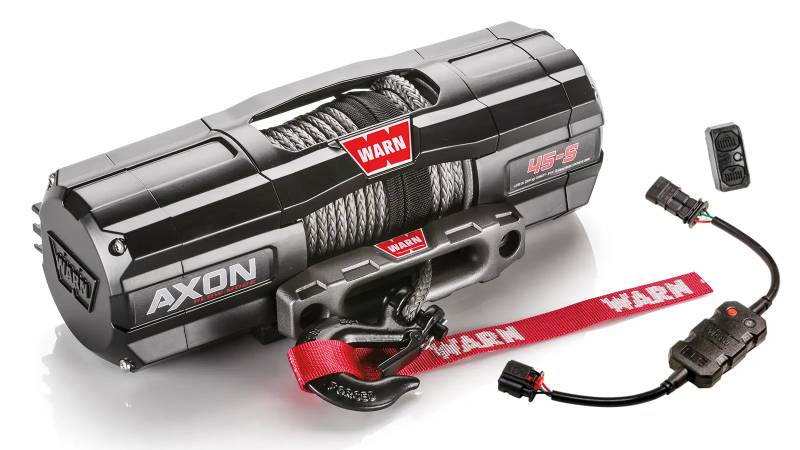

The WARN AXON 45-S with Plow Mode is a 4,500 lb winch built for UTVs and side-by-sides. It comes with 50 ft of 1/4 in synthetic rope and a hawse fairlead. It also includes a corded remote socket and wiring harness (corded remote sold separately).\r\n\r\nIt handles trail recovery, raising and lowering a plow, dragging logs or game out of the woods, and everyday chores around the property.\r\n\r\n•Motactor combines the motor and contactor in one unit to save space and install time\r\n•Dash switch runs the winch and shows winching feedback\r\n•Plow Mode sets upper and lower blade limits and adds one-touch Auto Move to raise or lower the plow (requires the HUB receiver and a smartphone)\r\n•Smartphone control from over 100 ft away through the WARN HUB receiver, with motor temperature, load, and battery readouts\r\n•Designed, engineered, tested, and assembled in the USA\r\n•239:1 gear ratio with 3-stage planetary gearing\r\n\r\nAXON is WARN's premium powersports winch line, designed, engineered, tested, and assembled in the USA. WARN has been building recovery and off-road equipment since 1948, and it designs, engineers, and tests its products at its Oregon headquarters.\r\n\r\nNot sure it's the right fit for your rig? Call KT Performance at 1-855-587-3736 and we'll help you sort it out.
Availability: This winch requires a compatible winch mount or winch-ready bumper (sold separately).
Was:
$949.99
Sale:
$759.99
Save:
20%
Save:
$190.00
Description

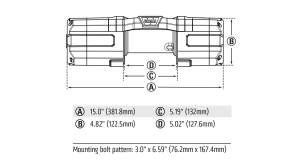

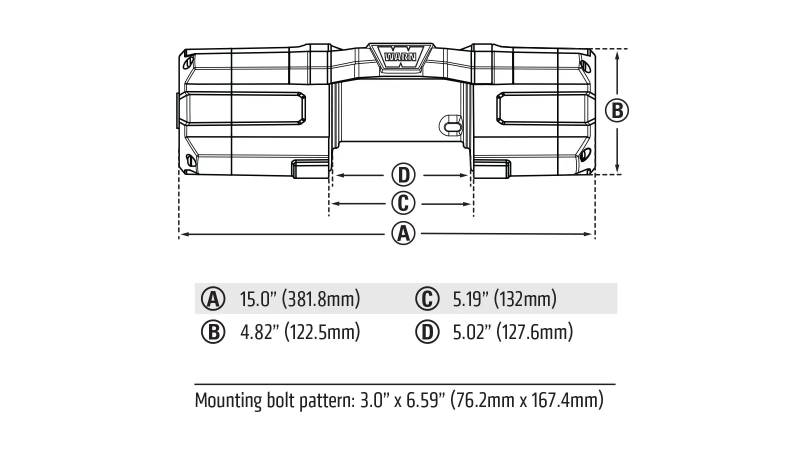

Specifications\r\n•Part Number: 110240\r\n•Rated Line Pull: 4,500 lb\r\n•Rope Material: Synthetic rope\r\n•Rope Diameter: 1/4 in\r\n•Rope Length: 50 ft\r\n•Fairlead: Hawse\r\n•Motor Type: Permanent Magnet\r\n•Motor Voltage: 12V DC\r\n•Gear Ratio: 239:1\r\n•Gearing: 3-Stage Planetary\r\n•Brake Type: Drum\r\n•Brake Activation: Automatic\r\n•Free Spooling: Yes\r\n•Power In/Power Out: Yes\r\n•Plow Mode: Yes\r\n•Overall Length: 15 in\r\n•Overall Width: 4.6 in\r\n•Overall Height: 4.8 in\r\n•Mounting Bolt Pattern Length: 6.59 in\r\n•Mounting Bolt Pattern Width: 3 in\r\n•Mounting Hole Quantity: 4\r\n•D Shackle Included: No\r\n•Winch Type: Electric\r\n\r\nWhat's Included\r\n•WARN AXON 45-S winch\r\n•50 ft of 1/4 in synthetic rope\r\n•Hawse fairlead\r\n\r\nFitment\r\n•Requires a compatible winch mount, winch plate, or winch-ready bumper (sold separately)\r\n•Mounting bolt pattern: 6.59 in x 3 in, 4 holes\r\n\r\nManuals & Warranty\r\n•Axon - Operators Manual\r\n•Axon - Winch Rope Installation\r\n•WARN Warranty\r\n•The Basic Guide to Powersports Winching Techniques
Details
- 110240
- 110240
- 012748121725
- Warn
- This winch requires a compatible winch mount or winch-ready bumper (sold separately).
- New
Shipping Information
- Item Requires Shipping
- 29.0 lbs.
- Free Shipping
