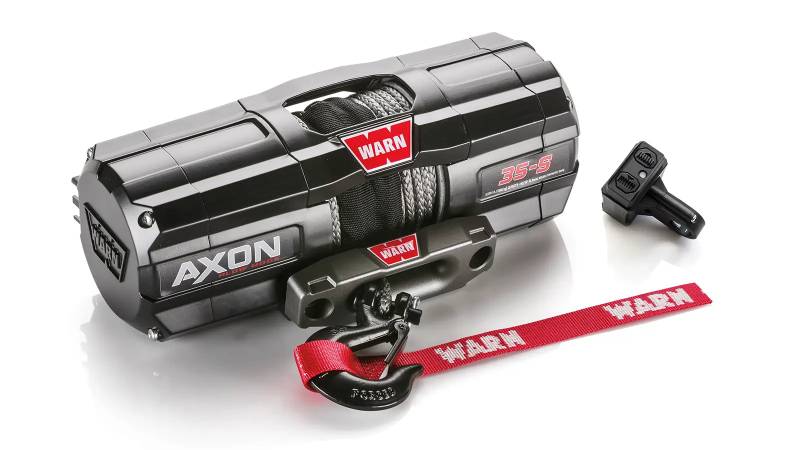

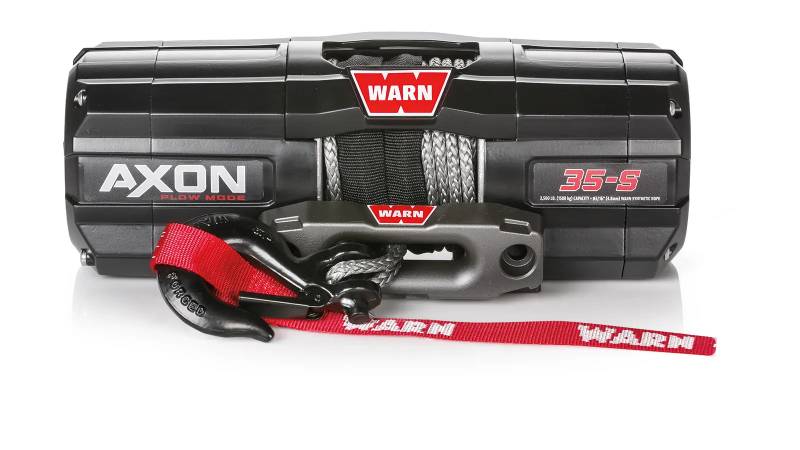

Warn AXON 35-S Powersports Winch with Plow Mode, 3,500 lb Synthetic Rope
- 3,500 lb rated line pull with synthetic rope
- Motactor combines the motor and contactor in one unit to save space and install time
- Dash switch runs the winch and shows winching feedback
- Plow Mode sets upper and lower blade limits and adds one-touch Auto Move to raise or lower the plow (requires the HUB receiver and a smartphone)
- Smartphone control from over 100 ft away through the WARN HUB receiver, with motor temperature, load, and battery readouts
- Designed, engineered, tested and assembled in the USA
This winch requires a compatible winch mount or winch-ready bumper (sold separately).
Description
The WARN AXON 35-S with Plow Mode is a 3,500 lb winch built for ATVs and smaller UTVs. It comes with 50 ft of 3/16 in synthetic rope and a hawse fairlead. The dash switch includes a handlebar adapter, and the HUB receiver is sold separately.
It handles trail recovery, raising and lowering a plow, dragging logs or game out of the woods, and everyday chores around the property.
AXON is WARN's premium powersports winch line, designed, engineered, tested, and assembled in the USA. WARN has been building recovery and off-road equipment since 1948, and it designs, engineers, and tests its products at its Oregon headquarters.
Specifications
- Part Number: 110230
- Rated Line Pull: 3,500 lb
- Rope Material: Synthetic rope
- Rope Diameter: 3/16 in
- Rope Length: 50 ft
- Fairlead: Hawse
- Motor Type: Permanent Magnet
- Motor Voltage: 12V DC
- Gear Ratio: 168:1
- Gearing: 3-Stage Planetary
- Brake Type: Drum
- Brake Activation: Automatic
- Free Spooling: Yes
- Power In/Power Out: Yes
- Plow Mode: Yes

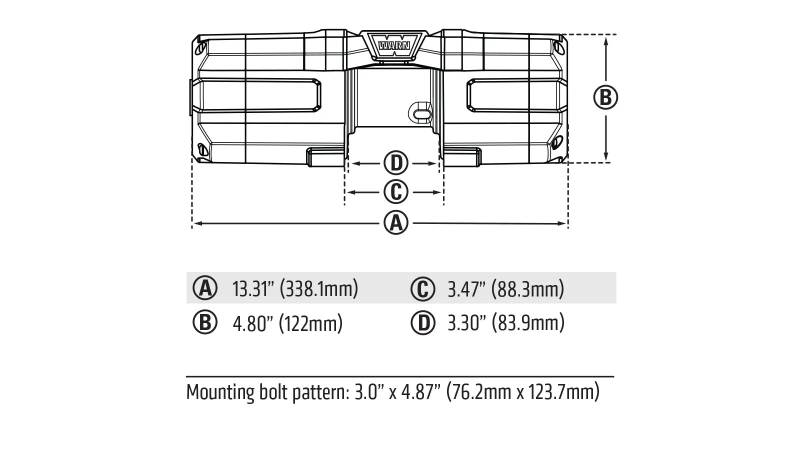

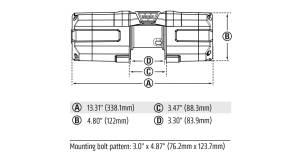

- Overall Length: 13.3 in
- Overall Width: 4.6 in
- Overall Height: 4.8 in
- Mounting Bolt Pattern Length: 4.87 in
- Mounting Bolt Pattern Width: 3 in
- Mounting Hole Quantity: 4
- D Shackle Included: No
- Winch Type: Electric
What's Included
- WARN AXON 35-S winch
- 50 ft of 3/16 in synthetic rope
- Hawse fairlead
Fitment
- Requires a compatible winch mount, winch plate, or winch-ready bumper (sold separately)
- Mounting bolt pattern: 4.87 in x 3 in, 4 holes
