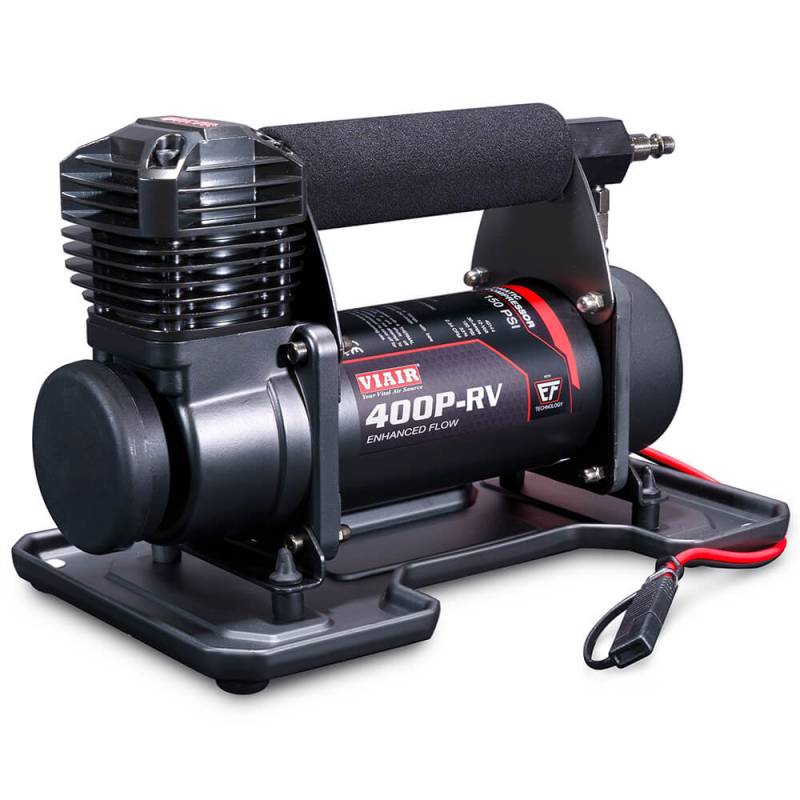

Viair, 400P-RV EF Automatic Portable Compressor
40144
The 400P-RV EF is an updated version of our popular 400P RV. It features VIAIR's new EF (Enhanced Flow) Technology that delivers up to 10% faster fill and 20% more performance, getting you back on the road faster than ever. EF compressors also feature an SAE power cord that allows you to use different power attachments for maximum versatility, an updated head for better heat dissipation and the same legendary VIAIR durability. The 400P-RV EF is compatible with dually tires, has 45ft of total hose reach and comes with a 40" twist-on chuck so you don't have to crouch while inflating your tires.
Pricing:
$414.99
Description
SPECS:
•12-Volt
•Permanent Magnetic Motor
•Duty Cycle: 33% @100 PSI
•Max. Working Pressure: 150 PSI
•Max. Amp Draw: 30-Amps
•Ingress Protection Rating: IP54
•Max. Ambient Temp: 158°F
•Max. Ambient Temp: -40°F

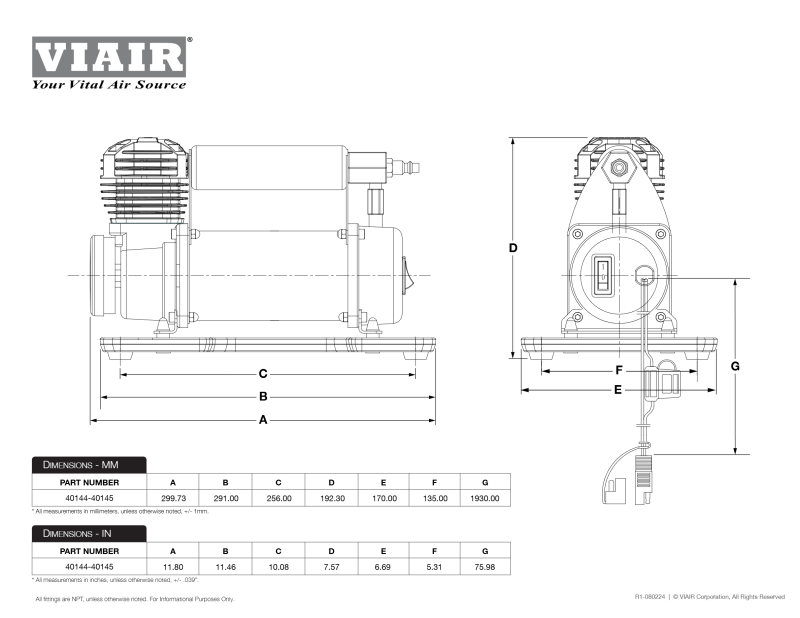

•Dimensions: 11.8" x 7.57" x 6.69"
•Net Weight: 10.35 lbs.
•Power Cord Length: 6 ft.
•Primary Air Hose Length: 25 ft.
•Extension Air Hose Length: 20ft.
•Inrush Current @ 0 PSI = 110
•dB @ 0 PSI = 73

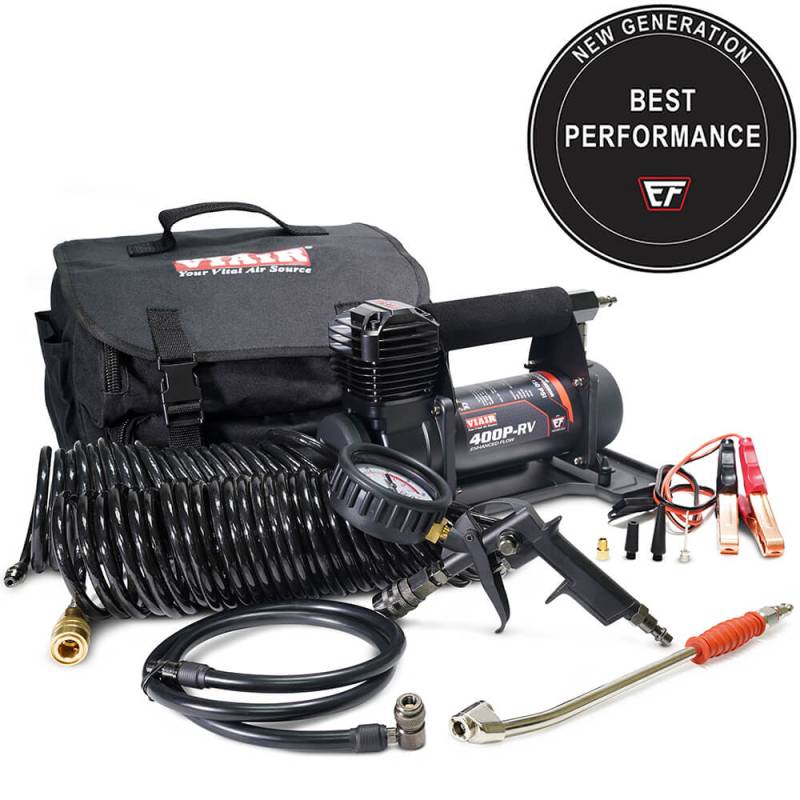

FEATURES:
•EF (Enhanced Flow) Technology
•2-Pin SAE Power connection with 40-Amp inline fuse holder
•Gas Station-Style Tire Inflation Gun with 160 PSI Gauge
•Primary & Extension Air Hoses
•45-Degree Extended Reach Chuck
•3 pc. Inflation Tips Kit and Presta valve Adapter
•Patented I-Beam Sand Tray
•Stealth Black Look
•Rugged Carry Bag
•High Flow output for Oversize Tires
Performance:
PSI CFM AMP BAR LPM AMP
0 2.59 14 0 73.3 14
10 2.38 17 1 66.0 18
20 2.26 19 2 61.3 21
30 2.17 22 3 57.3 24
40 2.05 23 4 52.3 26
50 1.93 25 5 49.3 27
60 1.84 26 6 45.7 28
70 1.75 27 7 43.3 28
80 1.66 28 8 40.0 29
90 1.59 28 9 37.3 29
100 1.53 28 10 34.3 29
110 1.45 29
120 1.38 29
130 1.32 29
140 1.25 29
150 1.18 28
Fill Rates:
35 x 12.5 R15 FILL RATE
•0 to 40 PSI 6 min. 25 sec. (+/- 15 sec.)
•10 to 40 PSI 4 min. 56 sec. (+/- 15 sec.)
37 x 12.5 R15 FILL RATE
•0 to 40 PSI 7 min. 15 sec. (+/- 15 sec.)
•10 to 40 PSI 5 min. 30 sec. (+/- 15 sec.)
RV TIRE FILL RATES
245/70R19.5 FILL RATE
•50 to 60 PSI 40 sec. (+/- 5 sec.)
•60 to 80 PSI 1 min. 39 sec. (+/- 5 sec.)
•80 to 90 PSI 55 sec. (+/- 5 sec.)
•90 to 110 PSI 2 min. 2 sec. (+/- 10 sec.)
255/70R22.5 FILL RATE
•50 to 60 PSI 1 min. 10 sec. (+/- 5 sec.)
•60 to 80 PSI 2 min. 37 sec. (+/- 10sec.)
•80 to 90 PSI 1 min. 25 sec. (+/- 5 sec.)
•90 to 110 PSI 3 min. 20 sec. (+/- 10sec.)
•100 to 120 PSI 1 min. 35 sec. (+/- 5 sec.)
275/80R22.5 FILL RATE
•50 to 60 PSI 1 min. 37 sec. (+/- 5 sec.)
•60 to 80 PSI 3 min. 27 sec. (+/- 10 sec.)
•80 to 90 PSI 1 min. 52 sec. (+/- 5 sec.)
•90 to 110 PSI 2 min. 7 sec. (+/- 10 sec.)
•12-Volt
•Permanent Magnetic Motor
•Duty Cycle: 33% @100 PSI
•Max. Working Pressure: 150 PSI
•Max. Amp Draw: 30-Amps
•Ingress Protection Rating: IP54
•Max. Ambient Temp: 158°F
•Max. Ambient Temp: -40°F
•Dimensions: 11.8" x 7.57" x 6.69"
•Net Weight: 10.35 lbs.
•Power Cord Length: 6 ft.
•Primary Air Hose Length: 25 ft.
•Extension Air Hose Length: 20ft.
•Inrush Current @ 0 PSI = 110
•dB @ 0 PSI = 73
FEATURES:
•EF (Enhanced Flow) Technology
•2-Pin SAE Power connection with 40-Amp inline fuse holder
•Gas Station-Style Tire Inflation Gun with 160 PSI Gauge
•Primary & Extension Air Hoses
•45-Degree Extended Reach Chuck
•3 pc. Inflation Tips Kit and Presta valve Adapter
•Patented I-Beam Sand Tray
•Stealth Black Look
•Rugged Carry Bag
•High Flow output for Oversize Tires
Performance:
PSI CFM AMP BAR LPM AMP
0 2.59 14 0 73.3 14
10 2.38 17 1 66.0 18
20 2.26 19 2 61.3 21
30 2.17 22 3 57.3 24
40 2.05 23 4 52.3 26
50 1.93 25 5 49.3 27
60 1.84 26 6 45.7 28
70 1.75 27 7 43.3 28
80 1.66 28 8 40.0 29
90 1.59 28 9 37.3 29
100 1.53 28 10 34.3 29
110 1.45 29
120 1.38 29
130 1.32 29
140 1.25 29
150 1.18 28
Fill Rates:
35 x 12.5 R15 FILL RATE
•0 to 40 PSI 6 min. 25 sec. (+/- 15 sec.)
•10 to 40 PSI 4 min. 56 sec. (+/- 15 sec.)
37 x 12.5 R15 FILL RATE
•0 to 40 PSI 7 min. 15 sec. (+/- 15 sec.)
•10 to 40 PSI 5 min. 30 sec. (+/- 15 sec.)
RV TIRE FILL RATES
245/70R19.5 FILL RATE
•50 to 60 PSI 40 sec. (+/- 5 sec.)
•60 to 80 PSI 1 min. 39 sec. (+/- 5 sec.)
•80 to 90 PSI 55 sec. (+/- 5 sec.)
•90 to 110 PSI 2 min. 2 sec. (+/- 10 sec.)
255/70R22.5 FILL RATE
•50 to 60 PSI 1 min. 10 sec. (+/- 5 sec.)
•60 to 80 PSI 2 min. 37 sec. (+/- 10sec.)
•80 to 90 PSI 1 min. 25 sec. (+/- 5 sec.)
•90 to 110 PSI 3 min. 20 sec. (+/- 10sec.)
•100 to 120 PSI 1 min. 35 sec. (+/- 5 sec.)
275/80R22.5 FILL RATE
•50 to 60 PSI 1 min. 37 sec. (+/- 5 sec.)
•60 to 80 PSI 3 min. 27 sec. (+/- 10 sec.)
•80 to 90 PSI 1 min. 52 sec. (+/- 5 sec.)
•90 to 110 PSI 2 min. 7 sec. (+/- 10 sec.)
