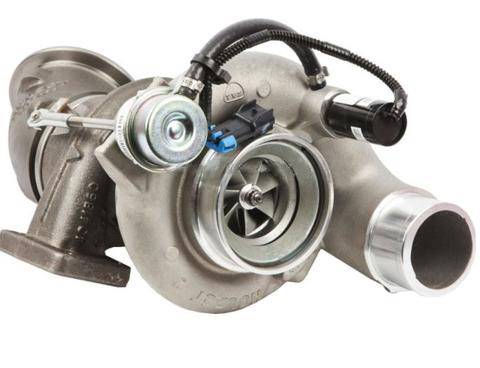

Flight Diesel Remanufactured Holset Turbocharger for Dodge/Ram (2004.5-07) 6.7L Cummins
R3770974
This pneumatically actuated turbocharger undergoes a complete remanufacturing process developed by experienced engineers.
•Each turbo is carefully disassembled and thoroughly cleaned using different cleaning methods. Once the parts are cleaned, they are visually inspected and measured by qualified •technicians. The rotating components are balanced individually and then again as an assembly.
•The cartridges are assembled using all new critical components. The assembled cartridge is then high speed tested in a Vibration Sorting Rig (VSR) which spins the turbo in excess of •90,000 RPM while it measures any amount of unbalance throughout the RPM range.
•Once fully assembled, the pneumatic actuator is tested to verify functionality. All remanufacturing takes place in the USA.
•Our units do not include a command valve, you would simply detach and reuse your existing command valve.
•Each turbo is carefully disassembled and thoroughly cleaned using different cleaning methods. Once the parts are cleaned, they are visually inspected and measured by qualified •technicians. The rotating components are balanced individually and then again as an assembly.
•The cartridges are assembled using all new critical components. The assembled cartridge is then high speed tested in a Vibration Sorting Rig (VSR) which spins the turbo in excess of •90,000 RPM while it measures any amount of unbalance throughout the RPM range.
•Once fully assembled, the pneumatic actuator is tested to verify functionality. All remanufacturing takes place in the USA.
•Our units do not include a command valve, you would simply detach and reuse your existing command valve.
Shipping: Free Shipping
Pricing:
$900.99
Description
•Unique 100% functional end-of-line testing with full RPM sweep
•Hydraulic and pneumatic leak testing
•Full VGT/VNT operational testing
•Hot gas stand validation
•Burst testing validation
•100% oil slinger, journal and thrust bearing replacement (reman)
•100% wear component and fastener replacement (reman)
•Bearing surface machined to OE-like condition using precision machining process (reman)
•Verified performance to meet OE specifications
•Gaskets included for installation
Fitment:
•2004.5-2007 5.9L Cummins 24 Valve Diesel - Ram Pickup
Reference Numbers: 4043600
Installation Notes:
Please follow all manufactures installation instructions. Professional installation may be required.
WARNING!! CHANGE ENGINE OIL PRIOR TO TURBOCHARGER INSTALLATION. NOT DOING SO MAY RESULT IN PREMATURE TURBOCHARGER FAILURE.
TURBOCHARGER INSTALLATION INSTRUCTIONS INSPECT – LINES AND FITTINGS
1. Visually inspect the oil supply and drain lines for kinks, clogging, or other restrictions.
3. Check exhaust manifold, oil supply, and oil drain line flanges for cracks or rust. Verify flatness on surface areas. Remove any old gaskets or any gasket material present on these surface areas.
3. Check air cleaner; air cleaner duct; and the exhaust manifold for any foreign objects.
ANY FOREIGN OBJECTS LEFT IN THESE AREAS CAN FATALLY DAMAGE THE TURBOCHARGER AND MAY CAUSE DAMAGE TO THE ENGINE! INSPECT AND PREP– NEW TURBOCHARGER
1. Ensure that no dirt or foreign objects have entered the turbocharger openings.
2. Place new o-ring and gaskets on oil inlet side of turbo, use clean engine oil to lubricate o-rings before assembly.
TURBOCHARGER INSTALLATION
1. Install turbocharger, mount both rear and front side, using high temperature nickel anti-seize lubricant to the bolt threads.
2. Position all wire retainers and install bolts.
3. Lubricate turbocharger by pouring clean engine oil into the oil inlet hole of the turbo. With your fingers, spin the compressor wheel several times to coat the turbocharger bearings with oil. Pour more oil into the oil inlet hole to top it off. There may be some drainage, but this is of no concern.
4. Connect the oil supply line, position the oil feed tube and install oil inlet bolts.
5. Connect the air cooler duct inlet, installed with v-band clamp.
6. Connect the air exhaust duct, installed with v-band clamp.
7. Check for proper crankcase oil level.
8. Test to prevent “engine start – fuel shut off”: crank the engine for a short duration of 15 seconds until the gauge shows an oil pressure build up.
9. Start the engine and let it idle for 5-10 minutes. (Do not rev the engine during this time)
10. Inspect installation for any oil leaks.
TURBOCHARGER TORQUE SPECIFICATIONS
•Exhaust Pipe V-band 100 lb-in
•Mounting Nuts 32 lb-ft
•Drain Tube Mounting Bolts 18 lb-ft
•Air Inlet Hose 35 lb-in
•Oil Drain Tube 18 lb-ft
•Oil Supply Line 18 lb-ft
•Charge Air Cooler Inlet Pipe 95 lb-in
Warranty:
•1 Year
•Unlimited Mileage
•Hydraulic and pneumatic leak testing
•Full VGT/VNT operational testing
•Hot gas stand validation
•Burst testing validation
•100% oil slinger, journal and thrust bearing replacement (reman)
•100% wear component and fastener replacement (reman)
•Bearing surface machined to OE-like condition using precision machining process (reman)
•Verified performance to meet OE specifications
•Gaskets included for installation
Fitment:
•2004.5-2007 5.9L Cummins 24 Valve Diesel - Ram Pickup
Reference Numbers: 4043600
Installation Notes:
Please follow all manufactures installation instructions. Professional installation may be required.
WARNING!! CHANGE ENGINE OIL PRIOR TO TURBOCHARGER INSTALLATION. NOT DOING SO MAY RESULT IN PREMATURE TURBOCHARGER FAILURE.
TURBOCHARGER INSTALLATION INSTRUCTIONS INSPECT – LINES AND FITTINGS
1. Visually inspect the oil supply and drain lines for kinks, clogging, or other restrictions.
3. Check exhaust manifold, oil supply, and oil drain line flanges for cracks or rust. Verify flatness on surface areas. Remove any old gaskets or any gasket material present on these surface areas.
3. Check air cleaner; air cleaner duct; and the exhaust manifold for any foreign objects.
ANY FOREIGN OBJECTS LEFT IN THESE AREAS CAN FATALLY DAMAGE THE TURBOCHARGER AND MAY CAUSE DAMAGE TO THE ENGINE! INSPECT AND PREP– NEW TURBOCHARGER
1. Ensure that no dirt or foreign objects have entered the turbocharger openings.
2. Place new o-ring and gaskets on oil inlet side of turbo, use clean engine oil to lubricate o-rings before assembly.
TURBOCHARGER INSTALLATION
1. Install turbocharger, mount both rear and front side, using high temperature nickel anti-seize lubricant to the bolt threads.
2. Position all wire retainers and install bolts.
3. Lubricate turbocharger by pouring clean engine oil into the oil inlet hole of the turbo. With your fingers, spin the compressor wheel several times to coat the turbocharger bearings with oil. Pour more oil into the oil inlet hole to top it off. There may be some drainage, but this is of no concern.
4. Connect the oil supply line, position the oil feed tube and install oil inlet bolts.
5. Connect the air cooler duct inlet, installed with v-band clamp.
6. Connect the air exhaust duct, installed with v-band clamp.
7. Check for proper crankcase oil level.
8. Test to prevent “engine start – fuel shut off”: crank the engine for a short duration of 15 seconds until the gauge shows an oil pressure build up.
9. Start the engine and let it idle for 5-10 minutes. (Do not rev the engine during this time)
10. Inspect installation for any oil leaks.
TURBOCHARGER TORQUE SPECIFICATIONS
•Exhaust Pipe V-band 100 lb-in
•Mounting Nuts 32 lb-ft
•Drain Tube Mounting Bolts 18 lb-ft
•Air Inlet Hose 35 lb-in
•Oil Drain Tube 18 lb-ft
•Oil Supply Line 18 lb-ft
•Charge Air Cooler Inlet Pipe 95 lb-in
Warranty:
•1 Year
•Unlimited Mileage
Details
- R3770974
- R3770974
- Flight Diesel
- New
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W14.0000” x H14.0000” x L14.0000”
- Free Shipping
- This item ships in its own box.
- Free Shipping
