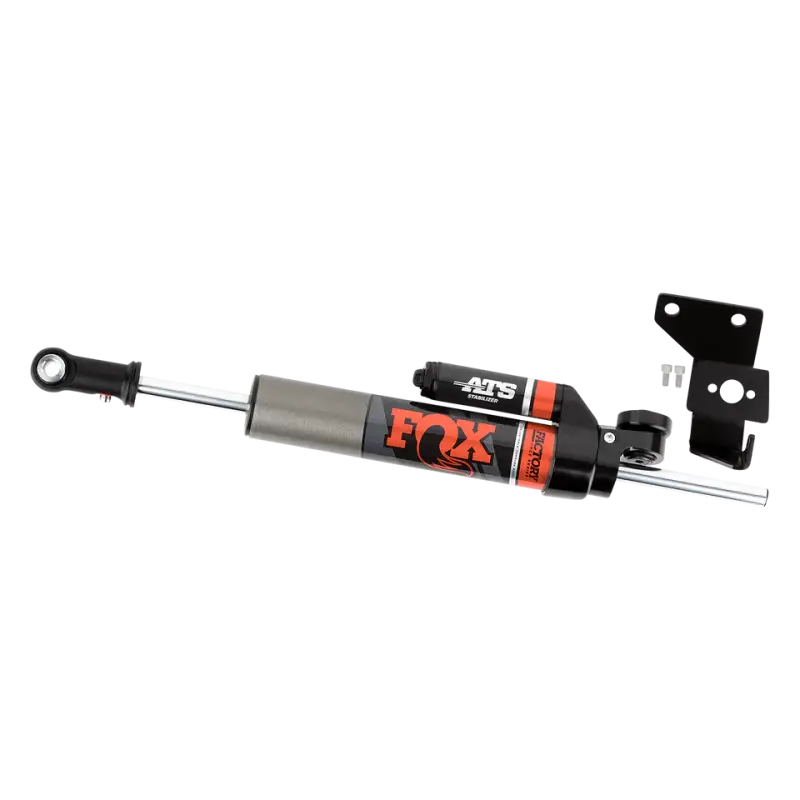

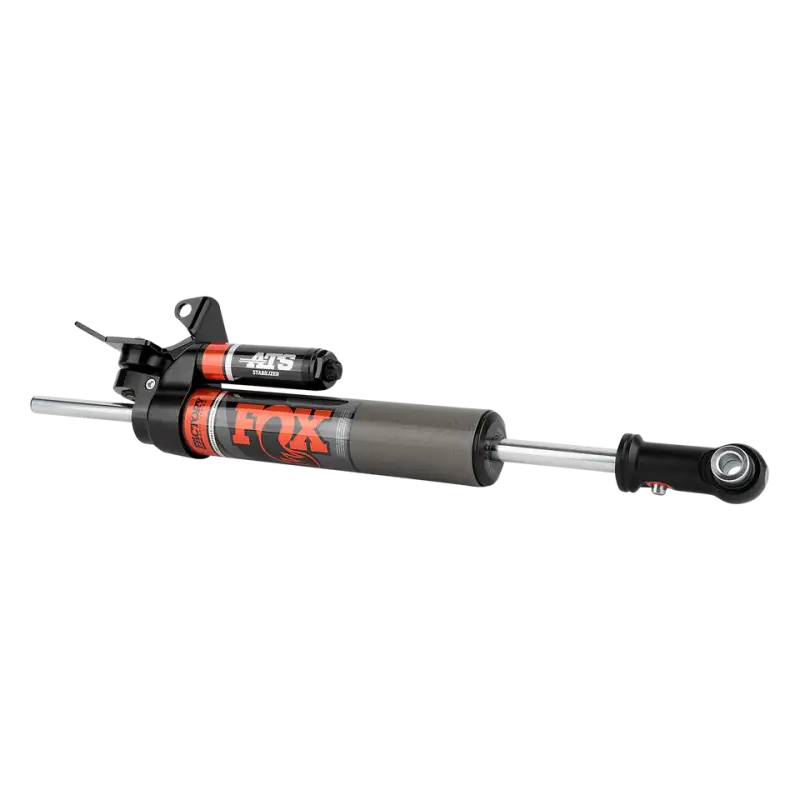

Fox 2.0 ATS Stabilizer for Jeep (2020-26) Gladiator / (2018-26) Wrangler
983-02-148
With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space.
The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.
The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.
Pricing:
$524.99
Description
Specifications:
•SERIES Factory Race
•TRAVEL 8.12
•BODY 2.0” impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time
•BODY PLATING Hard-anodized for a durable finish
•COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
•SHAFT 5/8" hard chrome plated heat-treated alloy steel
•PISTON Race-developed high-flow piston design
•VALVING Application specific valving to maximize performance
•SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
•EXTENDED LENGTH 23.19
•COMPRESSED LENGTH 15.07

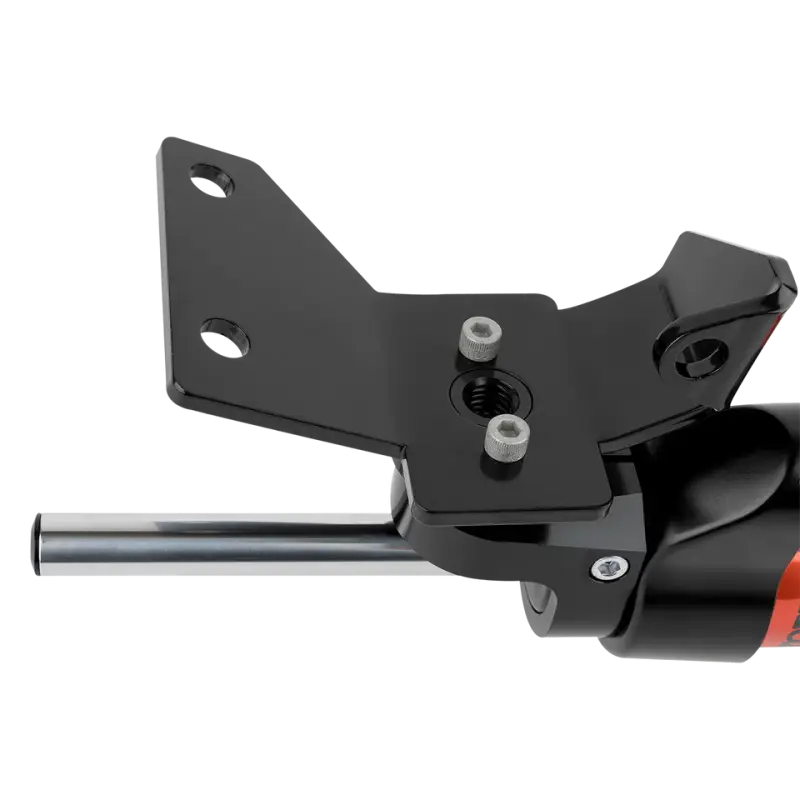

•TOP MOUNT Axle Mount

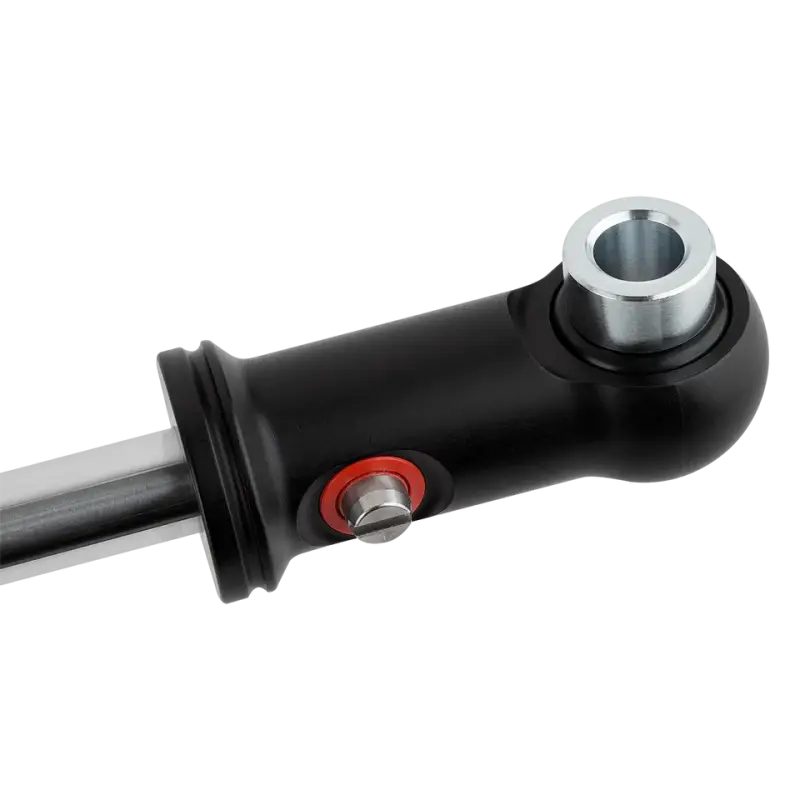

•BOTTOM MOUNT Eyelet
•FITMENT NOTES Axle Mount
Fitment:
2020 Jeep Gladiator All All All All Stabilizer
2021 Jeep Gladiator All All All All Stabilizer
2022 Jeep Gladiator All All All All Stabilizer
2023 Jeep Gladiator All All All All Stabilizer
2024 Jeep Gladiator All All All All Stabilizer
2025 Jeep Gladiator All All All All Stabilizer
2026 Jeep Gladiator All All All All Axle Mount N/A
2018 Jeep Wrangler All All All All Stabilizer
2019 Jeep Wrangler All All All All Stabilizer
2020 Jeep Wrangler All All All All Stabilizer
2021 Jeep Wrangler All All All All Stabilizer
2022 Jeep Wrangler All All All All Stabilizer
2023 Jeep Wrangler All All All All Stabilizer
2024 Jeep Wrangler All All All All Stabilizer
2025 Jeep Wrangler All All All All Stabilizer
2026 Jeep Wrangler All All All All Axle Mount N/A
•SERIES Factory Race
•TRAVEL 8.12
•BODY 2.0” impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time
•BODY PLATING Hard-anodized for a durable finish
•COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
•SHAFT 5/8" hard chrome plated heat-treated alloy steel
•PISTON Race-developed high-flow piston design
•VALVING Application specific valving to maximize performance
•SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
•EXTENDED LENGTH 23.19
•COMPRESSED LENGTH 15.07
•TOP MOUNT Axle Mount
•BOTTOM MOUNT Eyelet
•FITMENT NOTES Axle Mount
Fitment:
2020 Jeep Gladiator All All All All Stabilizer
2021 Jeep Gladiator All All All All Stabilizer
2022 Jeep Gladiator All All All All Stabilizer
2023 Jeep Gladiator All All All All Stabilizer
2024 Jeep Gladiator All All All All Stabilizer
2025 Jeep Gladiator All All All All Stabilizer
2026 Jeep Gladiator All All All All Axle Mount N/A
2018 Jeep Wrangler All All All All Stabilizer
2019 Jeep Wrangler All All All All Stabilizer
2020 Jeep Wrangler All All All All Stabilizer
2021 Jeep Wrangler All All All All Stabilizer
2022 Jeep Wrangler All All All All Stabilizer
2023 Jeep Wrangler All All All All Stabilizer
2024 Jeep Wrangler All All All All Stabilizer
2025 Jeep Wrangler All All All All Stabilizer
2026 Jeep Wrangler All All All All Axle Mount N/A
Details
- 983-02-148
- 983-02-148
- Fox Racing
- New
Shipping Information
- Item Requires Shipping
- 6.6 lbs.
- W5.0000” x H2.7500” x L28.2500”
