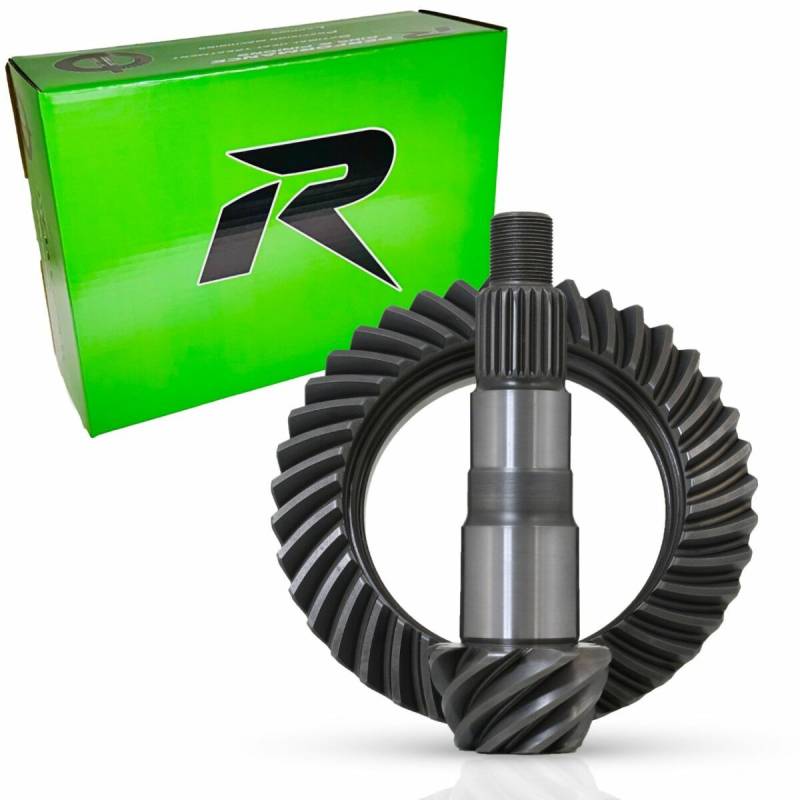

Revolution Gear & Axle Ring & Pinion Set for Jeep (2007-18) Wrangler JK & (2018-26) Wrangler JL, Dana 30 Front Axle (4.88 Ratio, Reverse Rotation)

This Revolution Gear & Axle ring and pinion set is built for the front Dana 30 in 2007-18 Jeep Wrangler JK and 2018-26 Jeep Wrangler JL non-Rubicon models, cut in a 4.88 ratio with reverse rotation to match the front housing.

The gears use a 26-spline pinion, a 7.2" ring gear, and heat-treated 8620 steel. The carrier break is 3.55/3.73, so this 4.88 set is designed to work with the deeper-ratio carrier. To keep the axles turning the same effective ratio, run a matching 4.88 set in the rear.

A 4.88 re-gear is a popular move on JK and JL Wranglers running larger tires. Taller tires raise your effective gearing and dull throttle response and crawl ratio; 4.88s restore that torque at the wheels for both trail performance and daily drivability.

This is a gear set only. It does not include bearings, shims, a crush sleeve, a pinion seal, or a locker – those are sold separately. Confirm you have the JK/JL front Dana 30 with reverse rotation and a compatible carrier before ordering. Gear setup is precision work, so professional installation is strongly recommended.

Pair this set with a Revolution Dana 30 JK front master install kit and a matching rear gear set for a balanced, quiet re-gear backed by a 2-year warranty against manufacturing defects.
