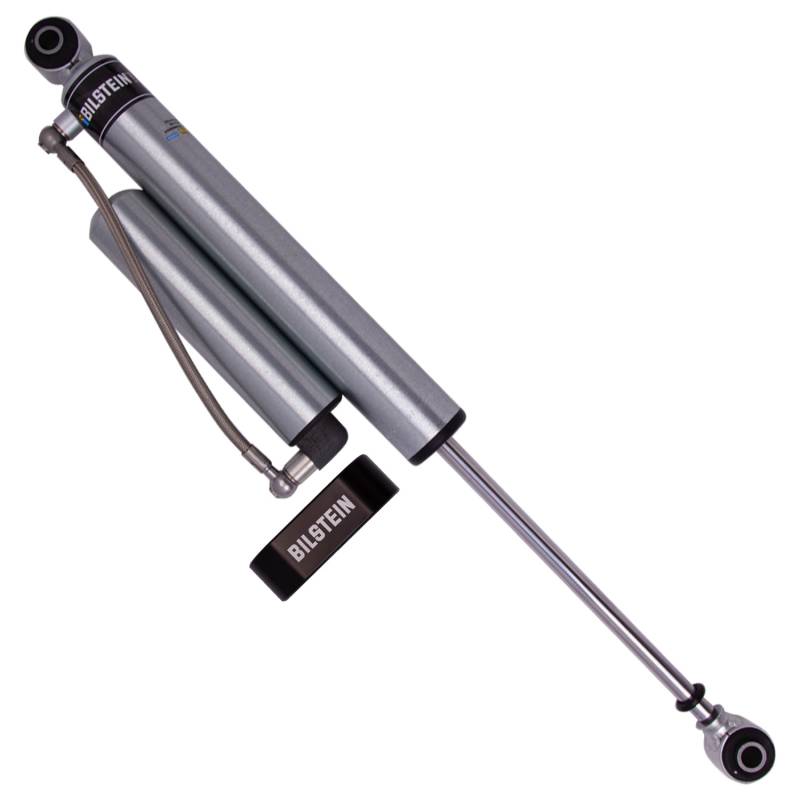

BILSTEIN B8 5160 Series Suspension Shock Absorber for Chevy/GMC (1999-18) 1500
25-311297
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 2
•Warranty: Limited 2-Year Warranty
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 2
•Warranty: Limited 2-Year Warranty
Pricing:
$299.99
Description
Specifications:
•Collapsed Length (in): 16.12
•Extended Length (in): 26.33
•Collapsed Length (mm): 409.5
•Extended Length (mm): 668.7
•Stroke/travel Length (in): 10.21
•Lower Mount Type: Eye 14.4mm
•Upper Mount Type: Eye 14.4mm
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: Yes
•Body Design: Smooth Body (Non-Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: No
•Spring Seat Included: No
•Billet Reservoir Clamp Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Chevrolet Silverado 1500 1999-2018, Silverado 1500 Classic 2007, Silverado 1500 LD 2019,
GMC Sierra 1500 1999-2018, Sierra 1500 Classic 2007, Sierra 1500 Limited 2019
Interchange Numbers
•Bilstein 25-176414
•Bilstein 25-242515
•Bilstein BR5-H641
•Bilstein F4-BR5-H641-H0
•BQNV 25311297
•ICON Vehicle Dynamics 76526R
•Collapsed Length (in): 16.12
•Extended Length (in): 26.33
•Collapsed Length (mm): 409.5
•Extended Length (mm): 668.7
•Stroke/travel Length (in): 10.21
•Lower Mount Type: Eye 14.4mm
•Upper Mount Type: Eye 14.4mm
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: Yes
•Body Design: Smooth Body (Non-Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: No
•Spring Seat Included: No
•Billet Reservoir Clamp Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Chevrolet Silverado 1500 1999-2018, Silverado 1500 Classic 2007, Silverado 1500 LD 2019,
GMC Sierra 1500 1999-2018, Sierra 1500 Classic 2007, Sierra 1500 Limited 2019
Interchange Numbers
•Bilstein 25-176414
•Bilstein 25-242515
•Bilstein BR5-H641
•Bilstein F4-BR5-H641-H0
•BQNV 25311297
•ICON Vehicle Dynamics 76526R
Details
- 25-311297
- 25-311297
- 651860890937
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W3.0000” x H3.0000” x L23.0000”
- Free Shipping
