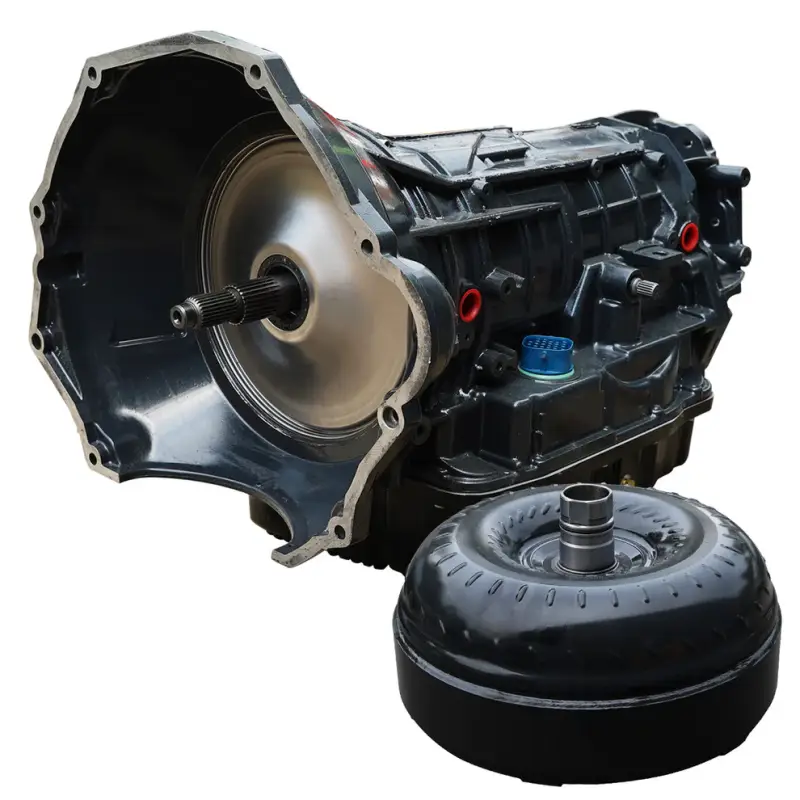

BD Diesel Towmaster 68RFE Transmission & Converter Package for Dodge/Ram (2019-24) 2500/3500 6.7L Cummins, 2WD
1064292SS
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy-Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Pricing:
$6,994.99
Description
Features:

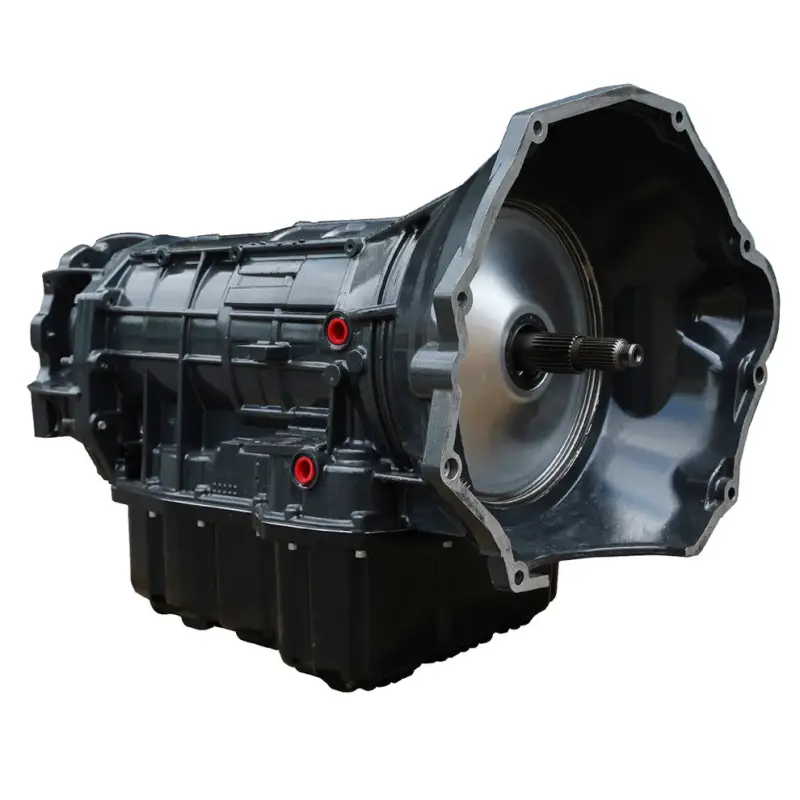

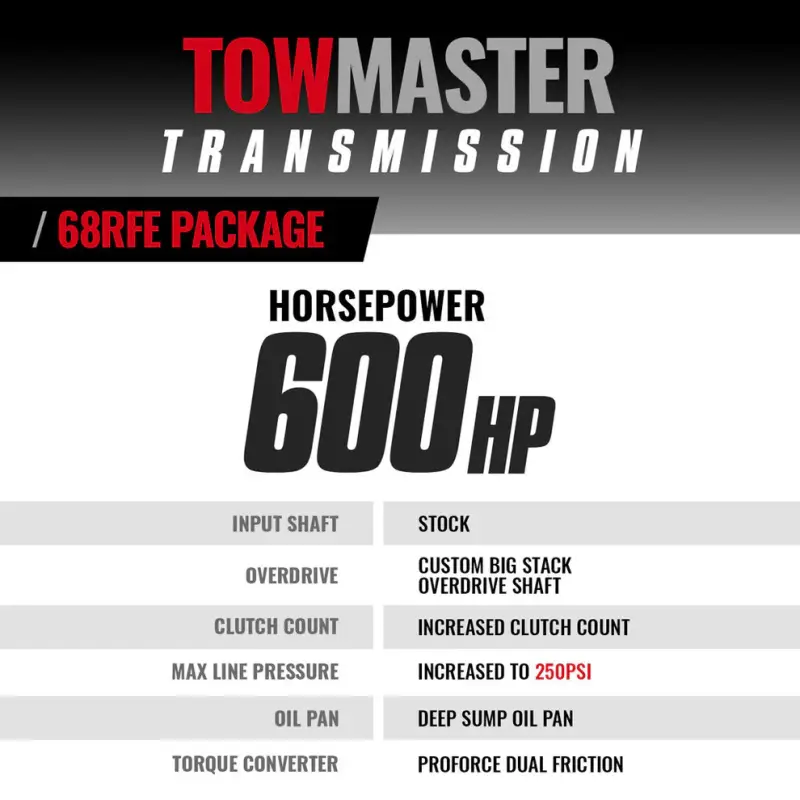

Transmission:
•Hard anodized valve body and new solenoid pack installed in every unit
•Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
•Heavy duty cam & roller design low reverse one way clutch
•New 4C billet spring retainer
•Steel girdle added to 2C piston to allow for more clutches and broader apply area
•BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
•Over Drive clutches 33% increase & 2C clutches 33% increase

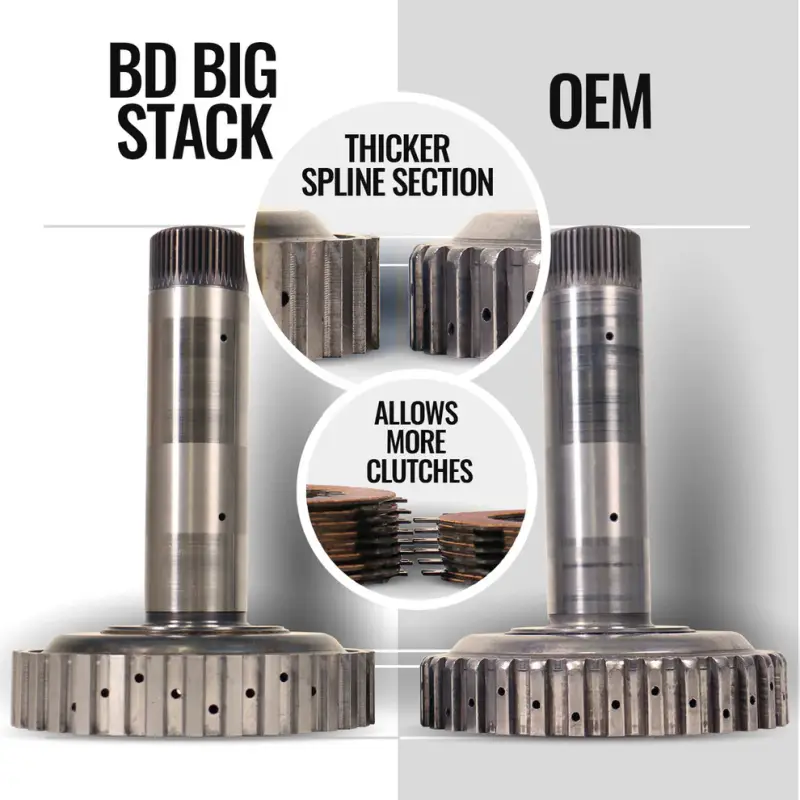

•Custom Big Stack overdrive shaft
•BD reinforced accumulator plate
•BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex

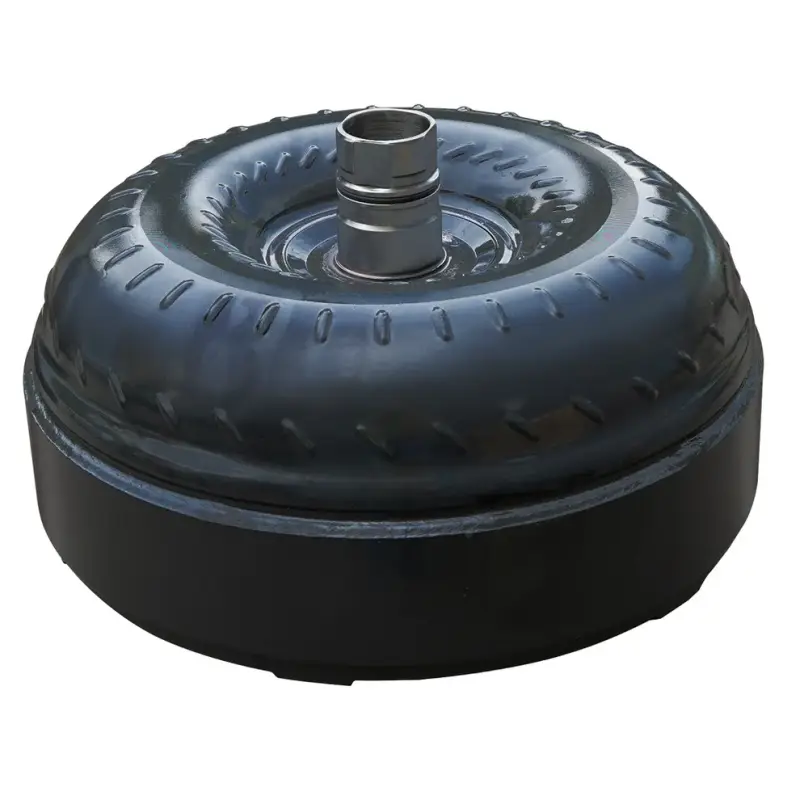

Proforce Converter:
•Good for 550 flywheel HP
•Ideal replacement for stock torque converter
•High performance Enhanced stall stator
•Great for street and towing applications
•Lower rpm response than the stock converter
•Furnaced brazed turbine fins for improved fluid coupling efficiency
•Damper springs replaced
•11.625 inch dual-clutch
•Billet forged front cover with thicker walls and stronger mounting pads
INSTALL TIME
9 Hours
WARRANTY
Parts
36-Months
150,000 Miles
Labor
12-Months
24,000 Miles
Notes:
•Remote filter required for inspection with a cooler flow rate in GPM at Oil/Air transmission cooler outlet
•Special tuning required for 2019-up applications for increased line pressure
Fitment:
2019-2024 Dodge Ram 2500/3500 4WD 6.7L Cummins & 68RFE
EMISSIONS
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
Transmission:
•Hard anodized valve body and new solenoid pack installed in every unit
•Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
•Heavy duty cam & roller design low reverse one way clutch
•New 4C billet spring retainer
•Steel girdle added to 2C piston to allow for more clutches and broader apply area
•BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
•Over Drive clutches 33% increase & 2C clutches 33% increase
•Custom Big Stack overdrive shaft
•BD reinforced accumulator plate
•BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
Proforce Converter:
•Good for 550 flywheel HP
•Ideal replacement for stock torque converter
•High performance Enhanced stall stator
•Great for street and towing applications
•Lower rpm response than the stock converter
•Furnaced brazed turbine fins for improved fluid coupling efficiency
•Damper springs replaced
•11.625 inch dual-clutch
•Billet forged front cover with thicker walls and stronger mounting pads
INSTALL TIME
9 Hours
WARRANTY
Parts
36-Months
150,000 Miles
Labor
12-Months
24,000 Miles
Notes:
•Remote filter required for inspection with a cooler flow rate in GPM at Oil/Air transmission cooler outlet
•Special tuning required for 2019-up applications for increased line pressure
Fitment:
2019-2024 Dodge Ram 2500/3500 4WD 6.7L Cummins & 68RFE
EMISSIONS
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
Details
- 1064292SS
- 1064292SS
- BD Diesel Performance
- New
Categories
Shipping Information
- Item Requires Shipping
- 240.0 lbs.
- W23.5000” x H27.3000” x L44.5000”
- Free Shipping
- This item will require a special quote for shipping charges.
