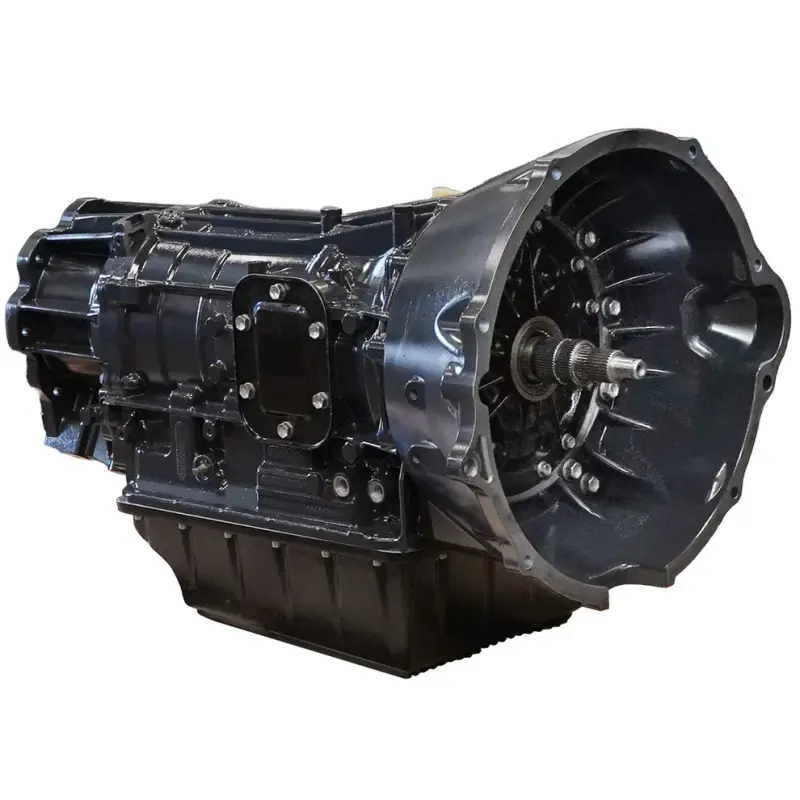

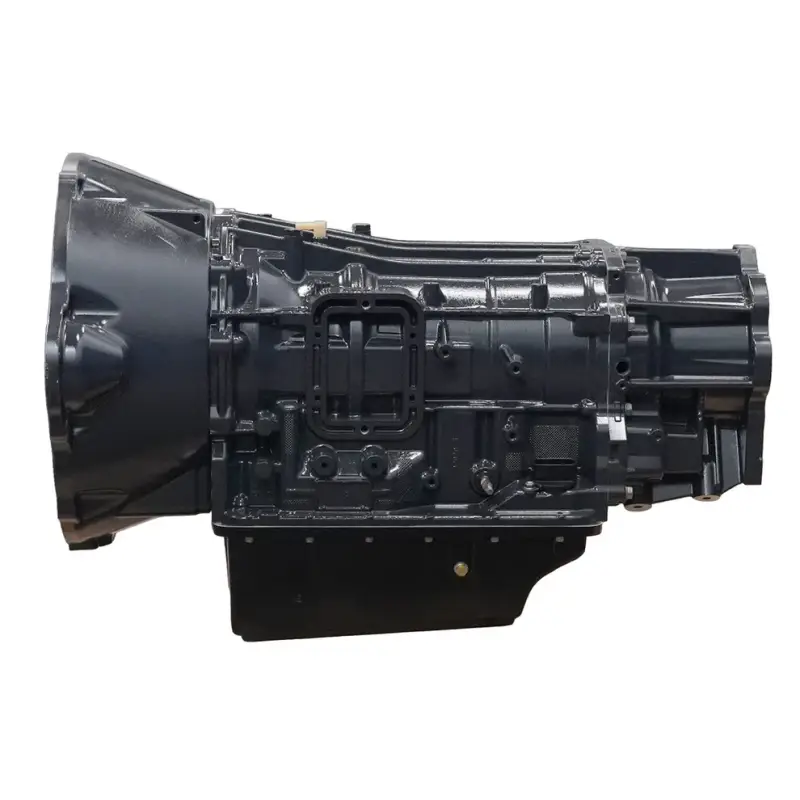

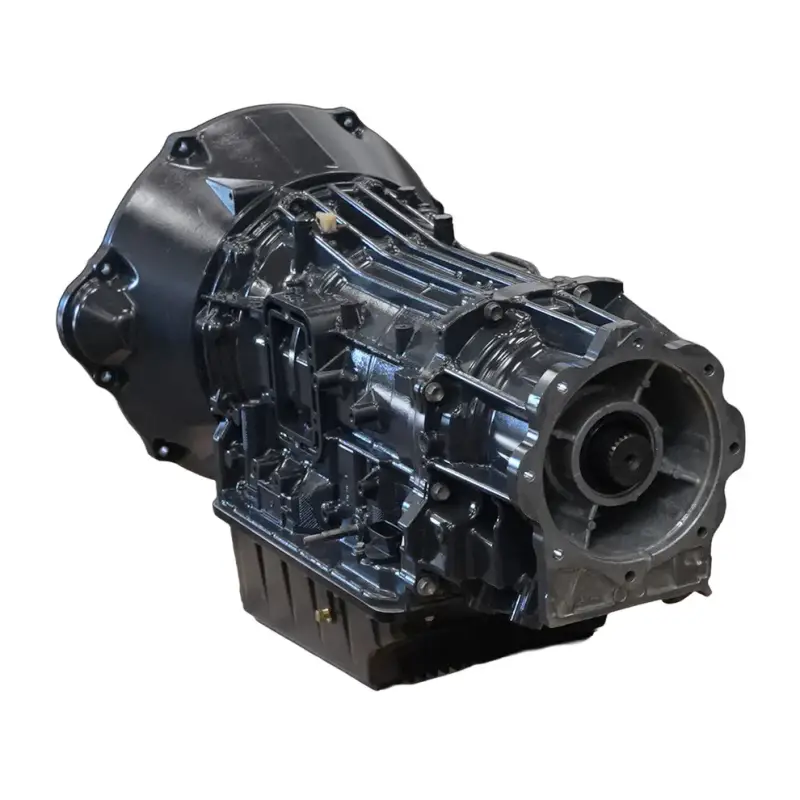

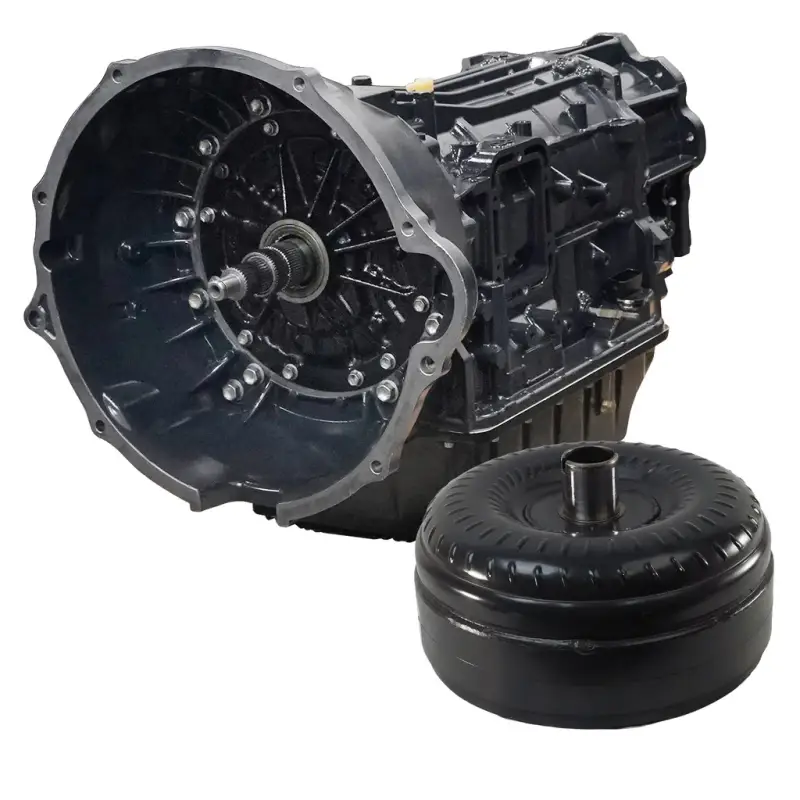

BD Diesel Torquemaster Transmission & Converter Package AISIN AS69RC for Ram (2013-18) 3500/4500/5500 6.7L, 4WD
1064364SM
BD Diesel Torquemaster Transmission & Converter Package AISIN AS69RC for Ram 3500/4500/5500 6.7L, 4WD

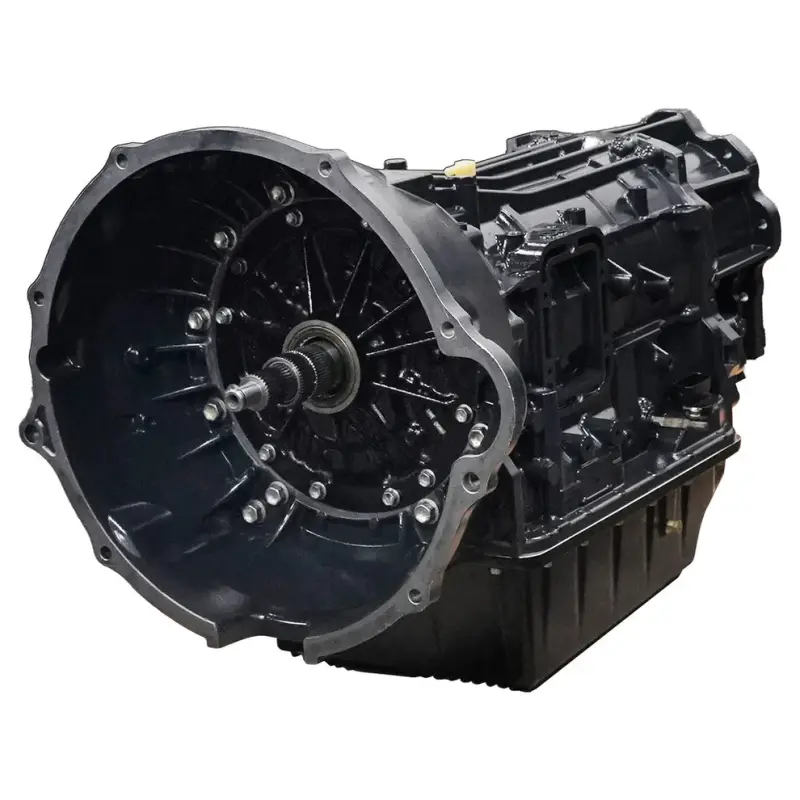

The 2013-2018 AS69RC is found in the Ram 3500-5500 with the 6.7L diesel and is the most demanding transmission in BD's Aisin lineup. The Torquemaster package is built for performance applications where increased friction counts in the K2, K3, and B1 clutch packs are required. Custom billet nitride K2 hub and apply piston resist spline wear, while the billet K3 hub and piston deliver durability with 40% more clutches than stock.
The 2013-2018 AS69RC is found in the Ram 3500-5500 with the 6.7L diesel and is the most demanding transmission in BD's Aisin lineup. The Torquemaster package is built for performance applications where increased friction counts in the K2, K3, and B1 clutch packs are required. Custom billet nitride K2 hub and apply piston resist spline wear, while the billet K3 hub and piston deliver durability with 40% more clutches than stock.
Pricing:
$9,500.99
Description
Features
Transmission:

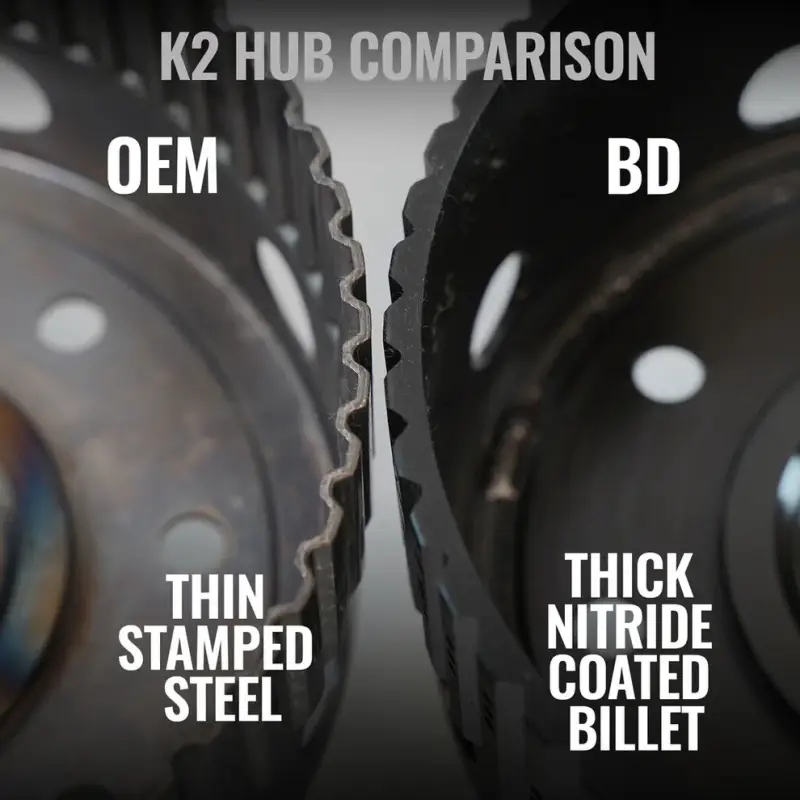

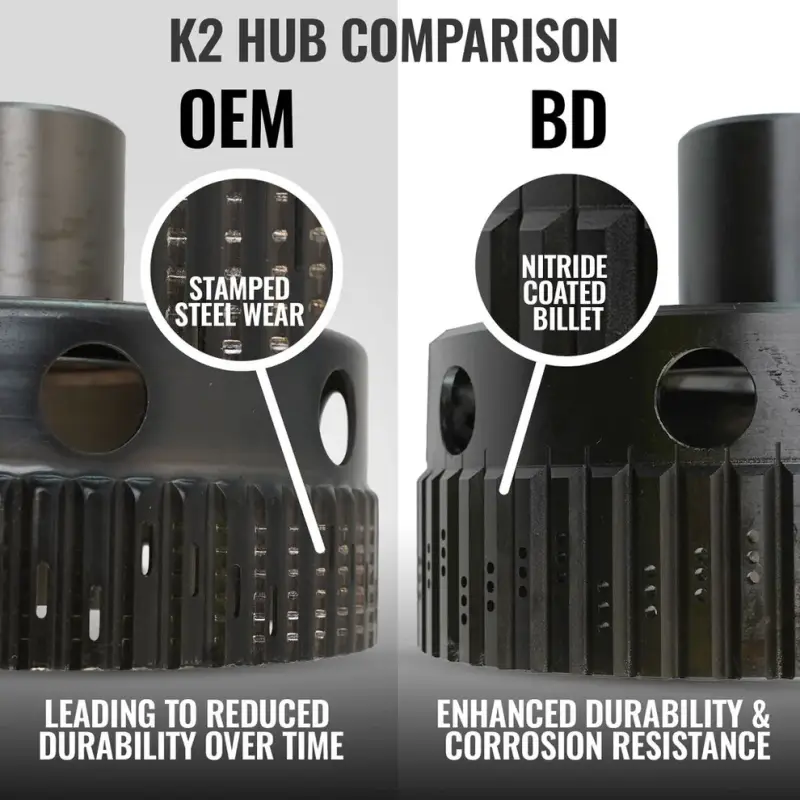

•BD exclusive billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions

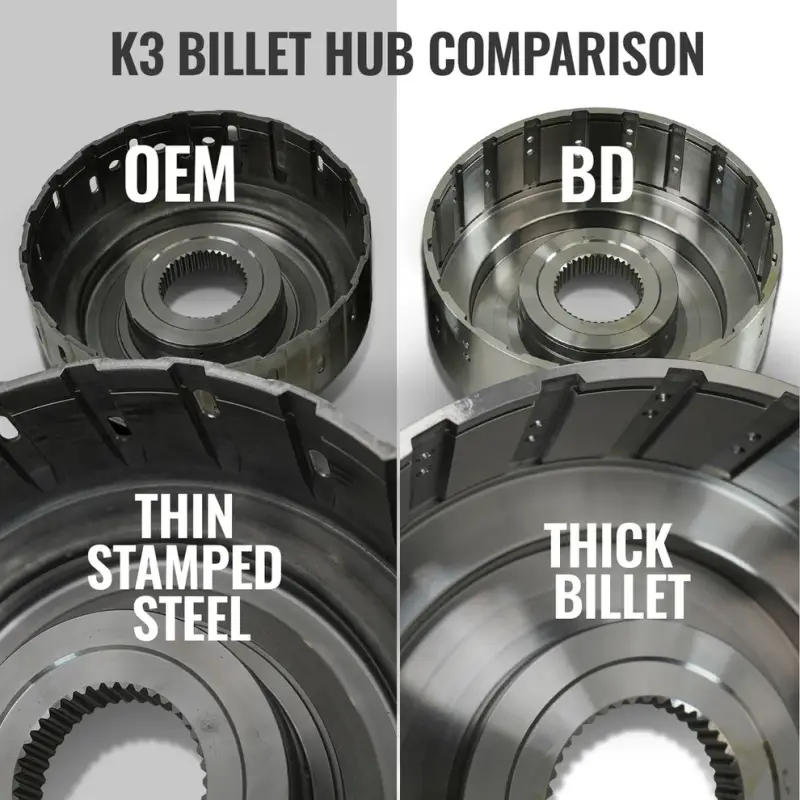

•Billet K3 drum increases clutch capacity, rigidity, and resists ring groove failure

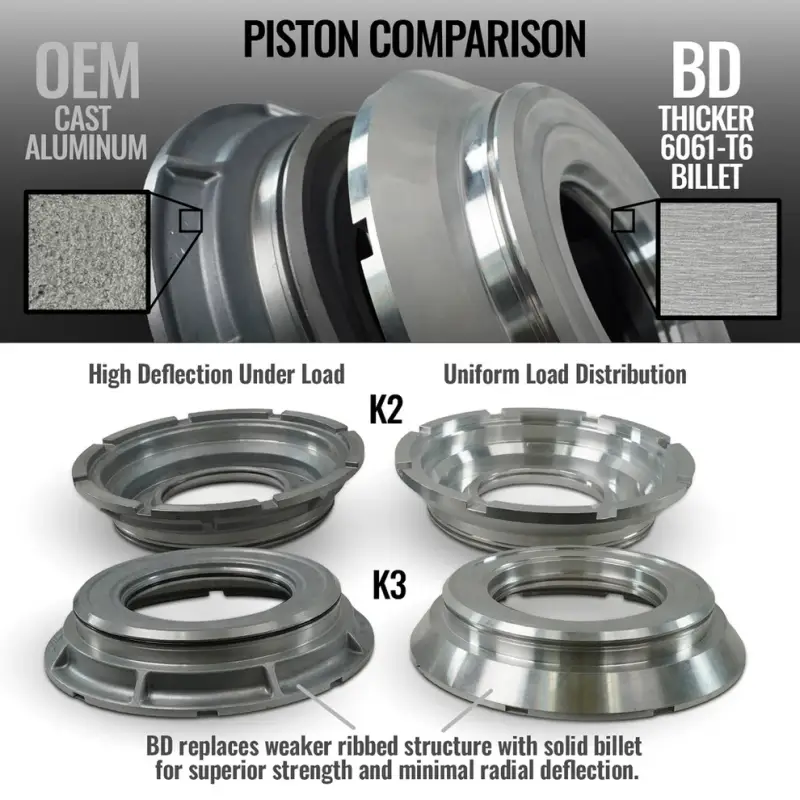

•Billet clutch apply pistons in K2 and K3
•More clutches vs. stock and competitors

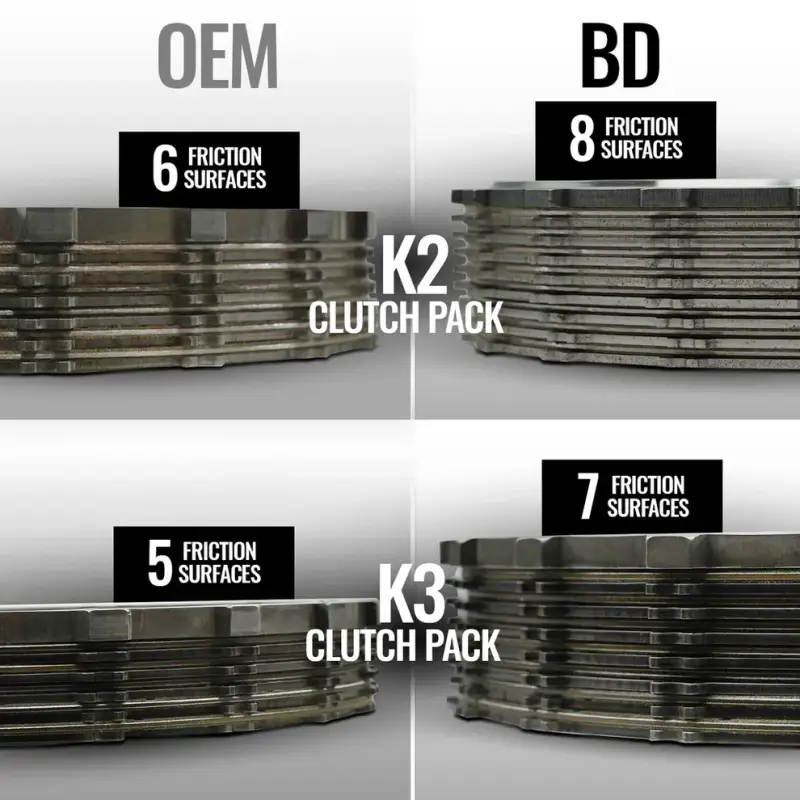

•Clutch Count K1: 7
•Clutch Count K2: 8 (33% increase over stock)
•Clutch Count K3: 7 (40% increase over stock)
•Clutch Count B1: 6 (20% increase over stock)
•Clutch Count B2: 9
•Increased valve body line pressure

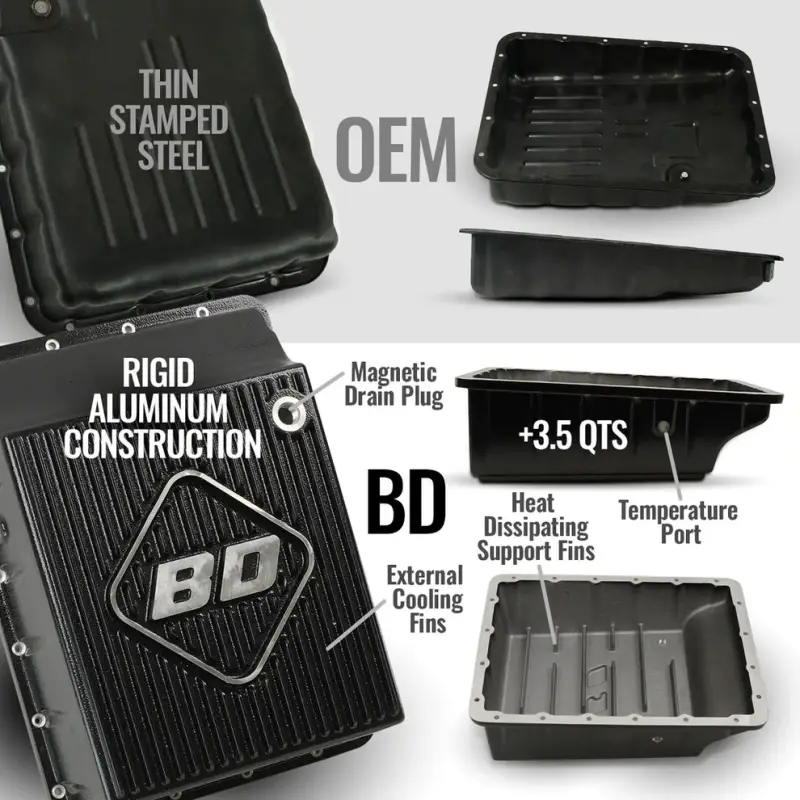

•BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling

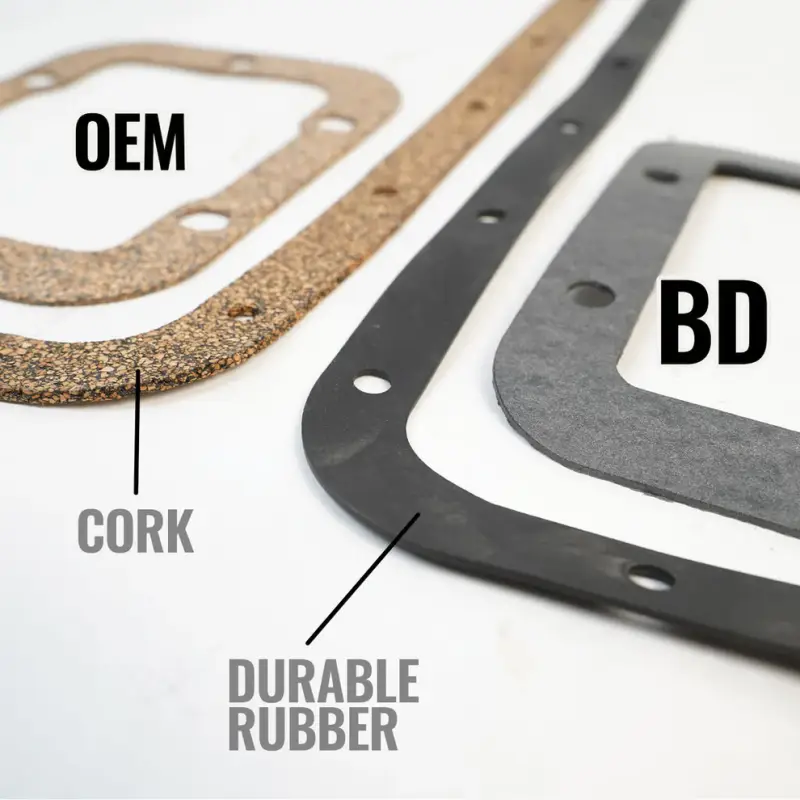

•Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets
Specifications
•Install Time: 8 Hours
•Warranty: 36 Months Parts / 12 Months Labor
Replaces OEM Part Numbers
•4WD: 68300150AB, R8300150AB
Transmission:
•BD exclusive billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions
•Billet K3 drum increases clutch capacity, rigidity, and resists ring groove failure
•Billet clutch apply pistons in K2 and K3
•More clutches vs. stock and competitors
•Clutch Count K1: 7
•Clutch Count K2: 8 (33% increase over stock)
•Clutch Count K3: 7 (40% increase over stock)
•Clutch Count B1: 6 (20% increase over stock)
•Clutch Count B2: 9
•Increased valve body line pressure
•BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling
•Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets
Specifications
•Install Time: 8 Hours
•Warranty: 36 Months Parts / 12 Months Labor
Replaces OEM Part Numbers
•4WD: 68300150AB, R8300150AB
