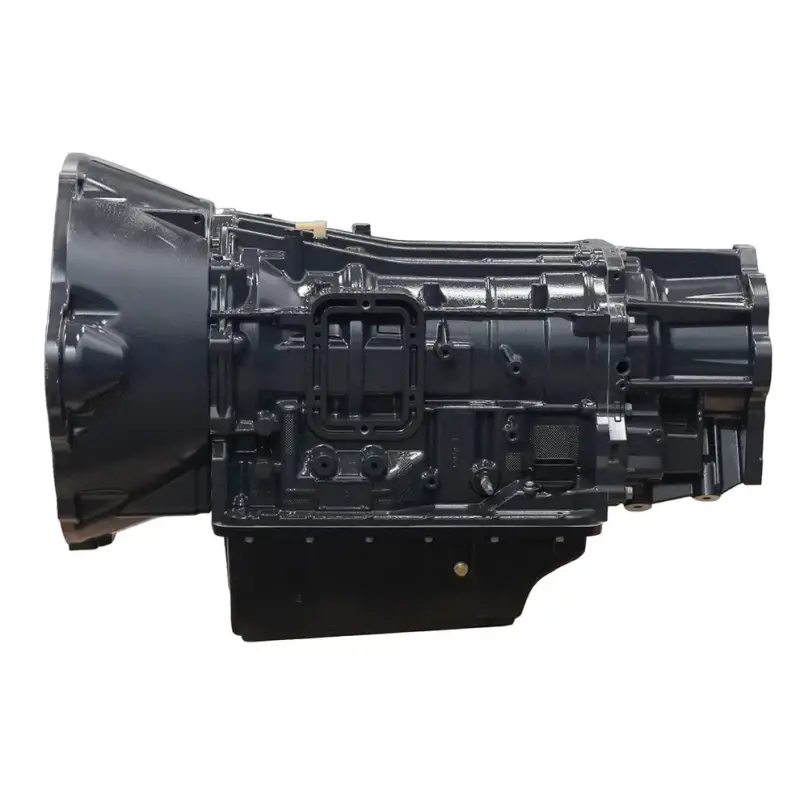

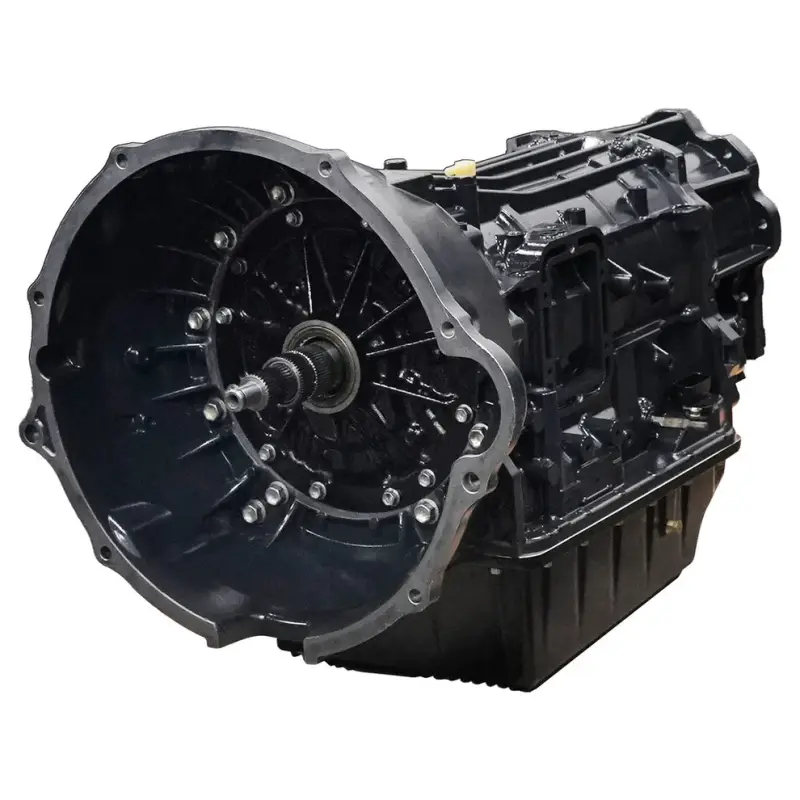

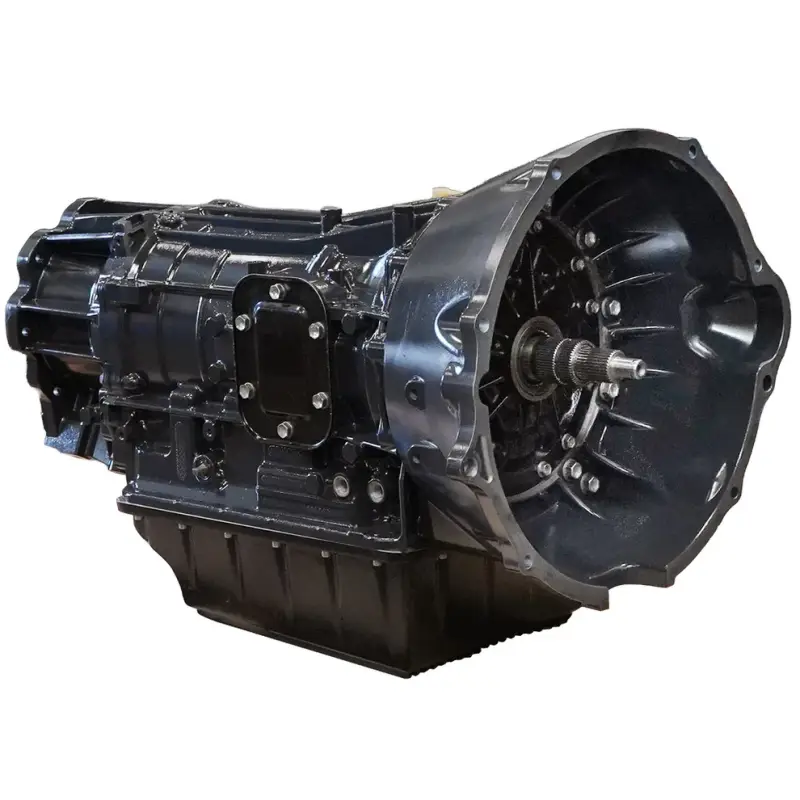

BD Diesel Torquemaster Transmission & Converter Package AISIN AS69RC for Ram (2019-24) 3500/4500/5500 6.7L Cummins, 4WD
1065024SM

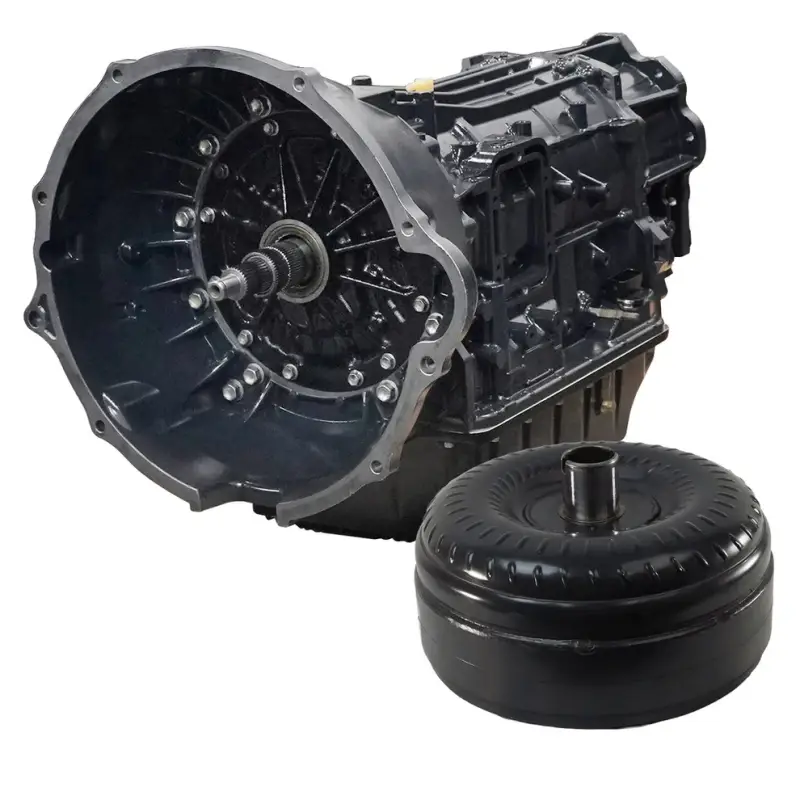

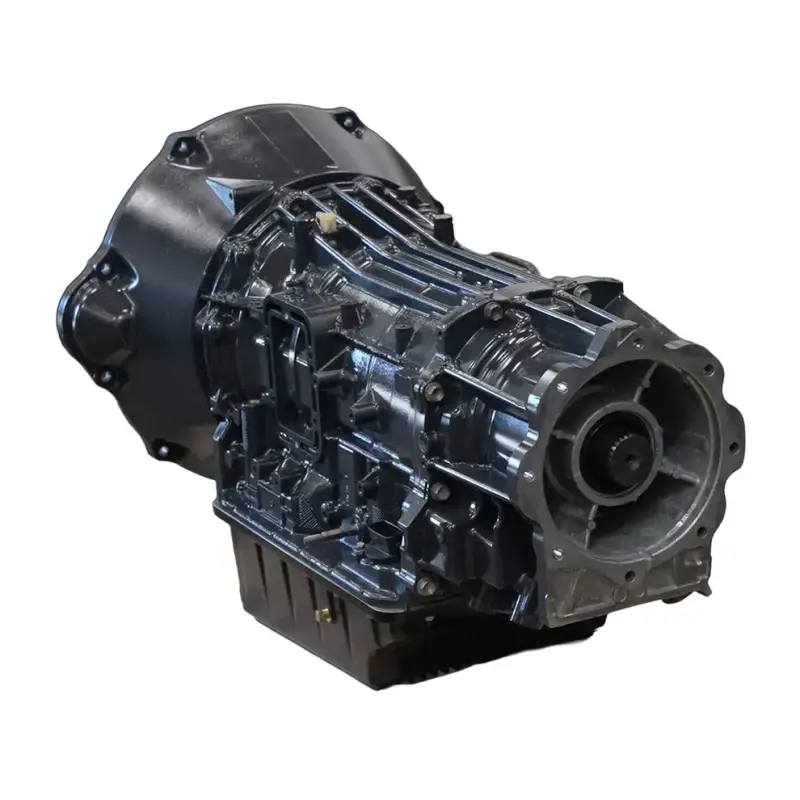

The 2019-2024 AS69RC is only found in the Ram 3500-5500 with the 6.7L diesel; many of these trucks are modified and therefore require a performance transmission to help deliver this power to the road. The Torquemaster is BD's top-tier AS69RC package, featuring increased friction counts in the K2, K3, and B1 clutch packs. Custom billet nitride K2 hub and apply piston resist spline wear, while the billet K3 hub and piston deliver durability with 40% more clutches than stock. The package includes BD's Deep Pan and ProForce 10D Billet Torque Converter.
Pricing:
$9,500.99
Description
IMPORTANT: This variant is for 4WD trucks without a factory PTO provision. If your truck has a right-hand PTO, order the 4WD Right Hand PTO (1065004PTOSS) instead.
Features:
Transmission:

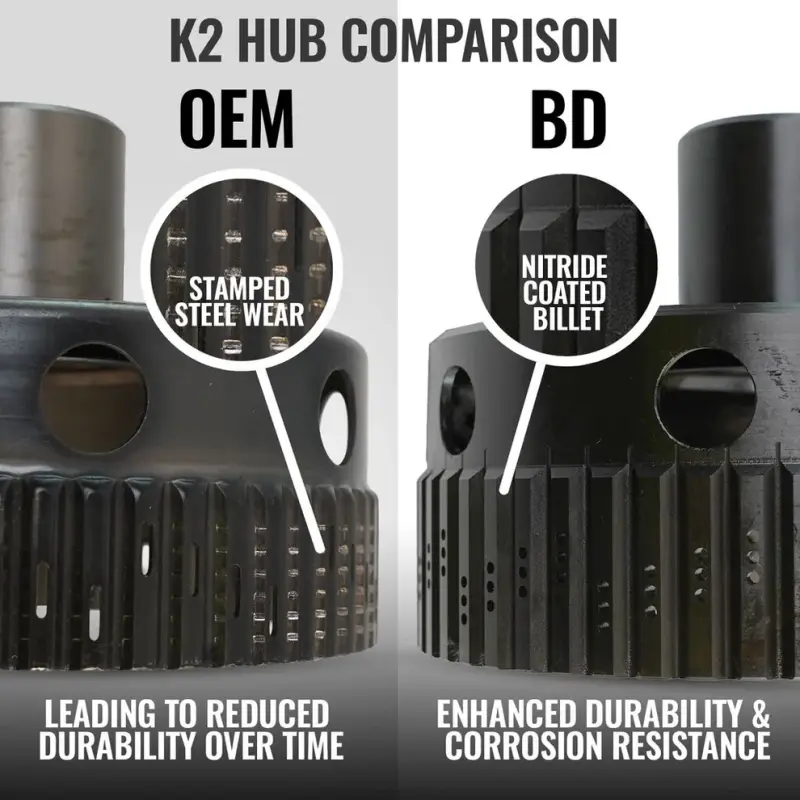

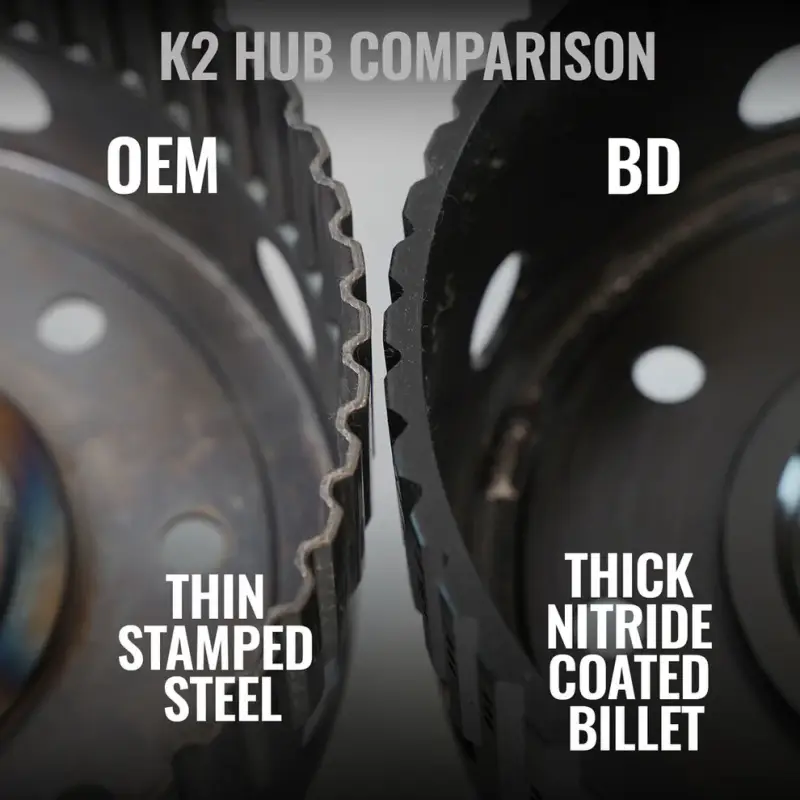

•BD exclusive billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions

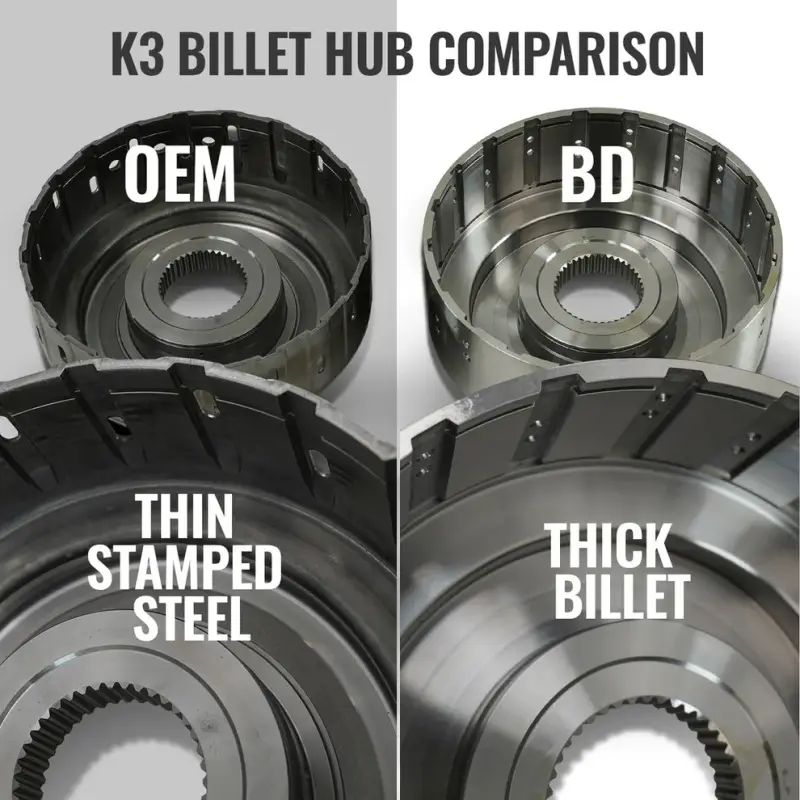

•Billet K3 drum increases clutch capacity and rigidity

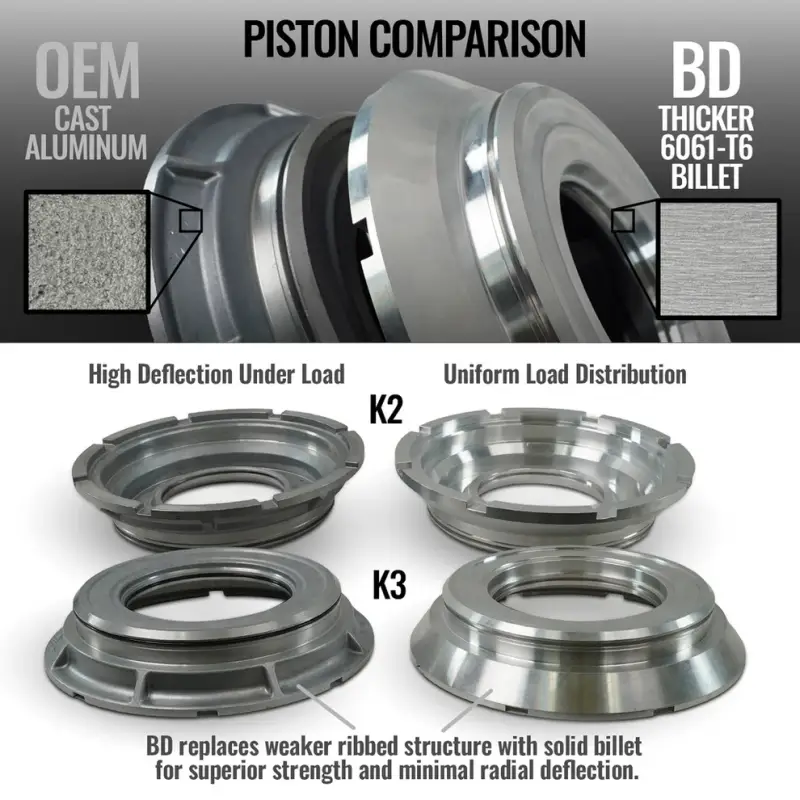

•Billet clutch apply pistons in K2 and K3
•More clutches vs. stock and competitors

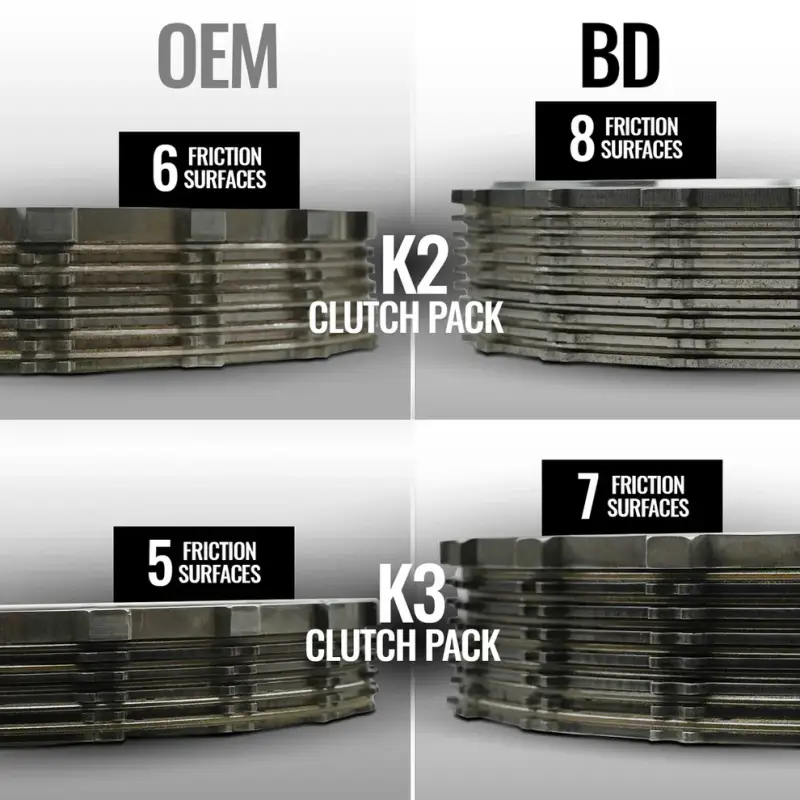

•Clutch Count K1: 7
•Clutch Count K2: 8 (33% increase over stock)
•Clutch Count K3: 7 (40% increase over stock)
•Clutch Count B1: 6 (20% increase over stock)
•Clutch Count B2: 9
•Increased valve body line pressure

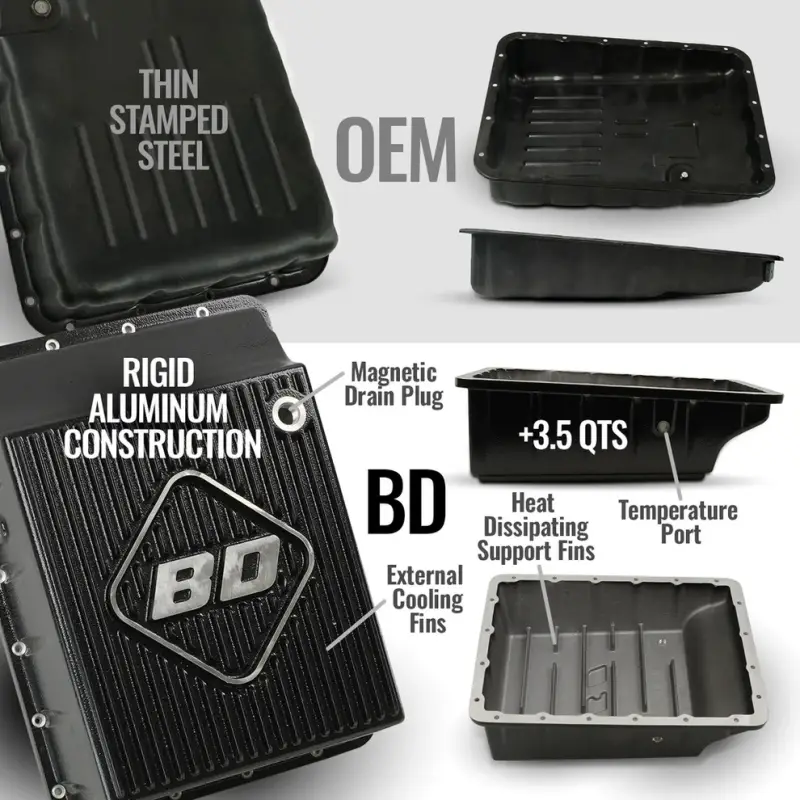

•BD deep sump pan increases fluid capacity by 3.5 qts

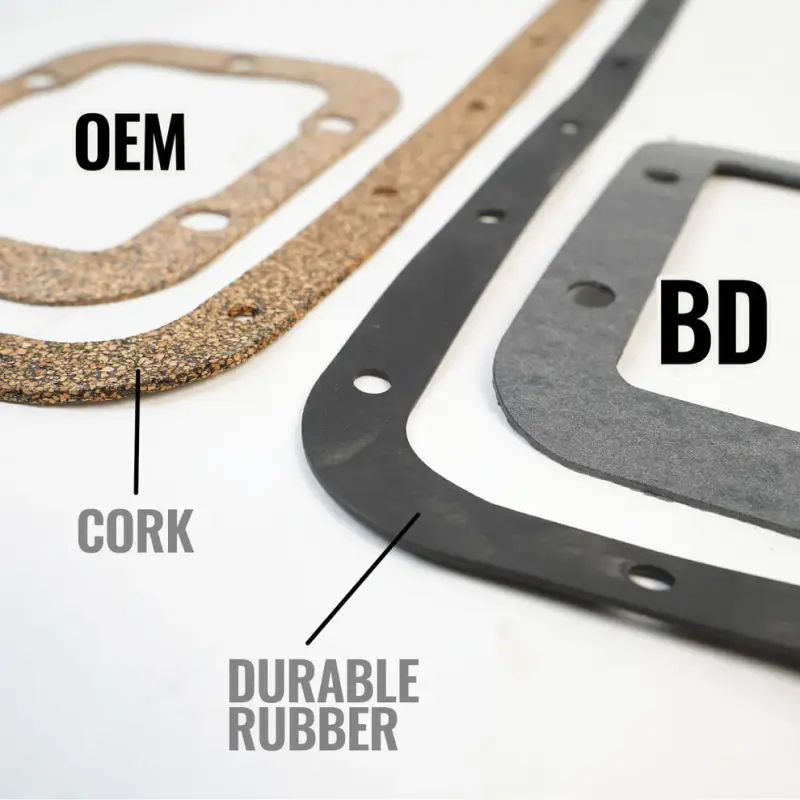

•Nitrile pan and PTO gaskets prevent leaks

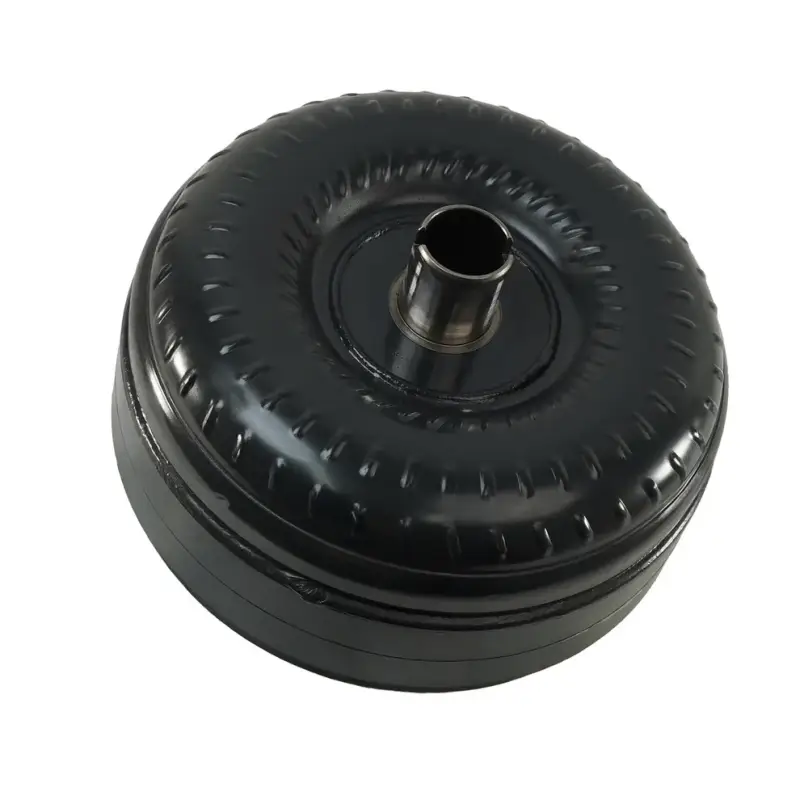

BD ProForce Torque Converter:
•Increased torque capacity (10 TCC plates vs OEM 6)
•Billet 4140 Cover, Piston, and Hub
•Billet 4140 Turbine Hub
•Upgraded TCC frictions & steels
•New Sprag, seals & O-rings
•Rebuilt Stator
Specifications
•Install Time: 8 Hours 30 Minutes
•Warranty: 36 Months Parts / 12 Months Labor
Fitment:
2019-2024 Ram 3500 / 4500 / 5500 w/ 6.7L Cummins
Features:
Transmission:
•BD exclusive billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions
•Billet K3 drum increases clutch capacity and rigidity
•Billet clutch apply pistons in K2 and K3
•More clutches vs. stock and competitors
•Clutch Count K1: 7
•Clutch Count K2: 8 (33% increase over stock)
•Clutch Count K3: 7 (40% increase over stock)
•Clutch Count B1: 6 (20% increase over stock)
•Clutch Count B2: 9
•Increased valve body line pressure
•BD deep sump pan increases fluid capacity by 3.5 qts
•Nitrile pan and PTO gaskets prevent leaks
BD ProForce Torque Converter:
•Increased torque capacity (10 TCC plates vs OEM 6)
•Billet 4140 Cover, Piston, and Hub
•Billet 4140 Turbine Hub
•Upgraded TCC frictions & steels
•New Sprag, seals & O-rings
•Rebuilt Stator
Specifications
•Install Time: 8 Hours 30 Minutes
•Warranty: 36 Months Parts / 12 Months Labor
Fitment:
2019-2024 Ram 3500 / 4500 / 5500 w/ 6.7L Cummins
