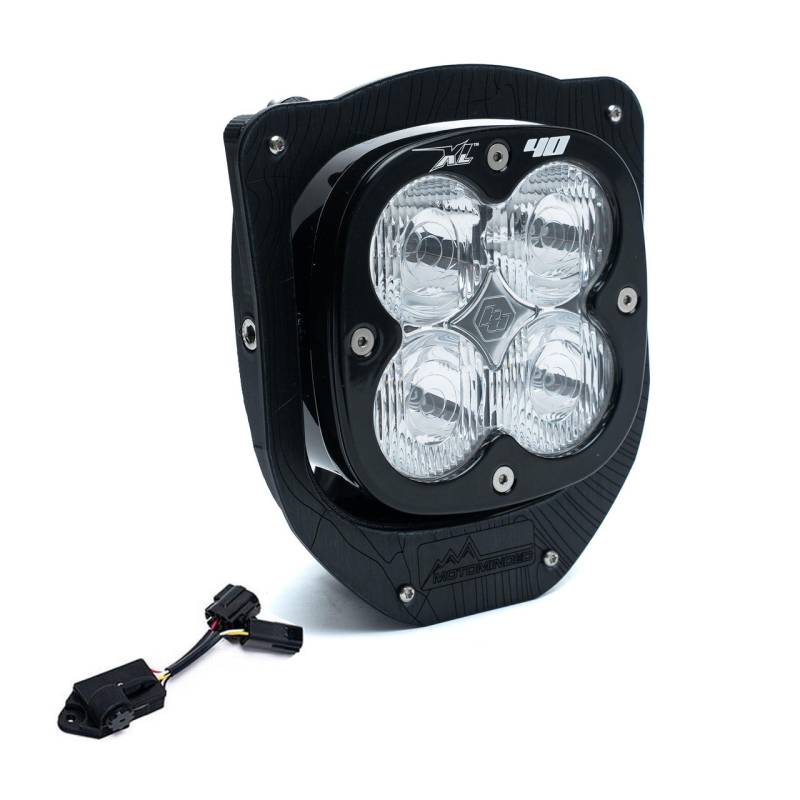

Baja Designs XL40 (D/C) LED Headlight Kit for Husqvarna (2024-25) FE-S/FE-W/FE/TE, w/ Dimmer

SKU: 82-1008

Baja Designs XL40 (D/C) LED Headlight Kit for Husqvarna FE-S/FE-W/FE/TE, w/ Dimmer

Upgrade your off-road lighting with the Baja Designs XL40 LED Headlight Kit with Dimmer — purpose-built for Husqvarna FE-S, FE-W, and TE motorcycles. Derived from the powerhouse XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes. The included dimmer lets riders dial in exactly the brightness they need, with a fully variable range from 95% down to 20% output.

Engineered for dirt bikes with lower-output OEM stators, the XL40 draws only 43.5W — making it the ideal high-performance upgrade for riders who previously lacked a compatible premium option. Paired with the signature XL Trail Lens, it delivers both vertical and horizontal beam coverage with excellent near-field and peripheral visibility. The Trail Lens redistributes center beam intensity to eliminate harsh hot spots — improving clarity through elevation changes, vertical transitions, and sharp corners. The result is a smooth, evenly distributed field of light that boosts confidence in demanding terrain.

This kit replaces the OEM headlight unit and includes a dimmer switch and the Motominded mount for easy installation. Backed by a 30-day satisfaction guarantee and Lifetime Limited Warranty.

Was: $600.99

Sale: $500.99

Save: 17%

Save: $100.00

Description
Video
Details
Shipping
Documents
Reviews

Description

Kit Includes:
•(1x) XL40 – Trail Lens Clear w/ 2024+ OEM Connector
•(1x) Dimmer switch – dimmable ranges between 95%-20% power output
•(1x) Motominded XL Bracket
•All Necessary Mounting Hardware

XL40 Specifications (per light):
•Lumens: 5,224 (Hi)/ 1,435 (Low)
•Watts/Amps: 43.5W/3.4A @ 12.8V

XL40 ELS Score:
•XL40, Trail lens, high beam: 92°/5.9/226’/5224
•XL40 Trail lens, low beam: 74°/5.9/119’/1435

The Baja Designs Advantage
•Satisfaction Guarantee – 30-Day Money Back Guarantee
•Limited Lifetime Warranty – Complete Purchase Protection
•uService – Replaceable Lenses And Optics
•ClearView – All The Light, Right Where You Need It
•MoistureBlock – Waterproof, Rain Proof, Submersible
•CopperDrive – Safely Driving LEDs at 100 Percent
•5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
•Product Type XL40
•Overvoltage Protection Built-In
•Mounting Hardware Included Yes
•Lighting Type Forward Projecting
•Lighting Technology LED
•Lighting Quantity 4
•Lighting Modes Beam
•Light Quantity 1
•Lens Material Hardcoated Polycarbonate
•Lens Color Clear
•Mounting Hardware Material Stainless Steel
•Universal or Specific Universal
•Wiring Harness Included Yes
•Wattage (W) 43.5
•Housing Material Powder Coated Cast Aluminum
•Housing Color Black
•Description Trail; Clear
•Brightness (Lumens) 5,224 (Hi) / 1,435 (Low)
•Bezel Material Powder Coated Cast Aluminum
•Beam Pattern Trail
•Average Rated Life (hr.) 49930
•Amperage Rating (A) 3.4 High: 92°/5.9/226’/5224; Low: 74°/5.9/119’/1435
•Amperage Rating (A) 3.4 High: 92°/5.9/226’/5224; Low; 74°/5.9/119’/1435

Standards & Compliance
•Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
•Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
•Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)

Dimensions
•Weight (lbs.) 2.45
•Length (in.) 4.43
•Height (in.) 4.43
•Depth (in.) 3.65

Fitment:
Husqvarna FE350S 2024-2025
Husqvarna FE501S 2024-2025
Husqvarna FE350W 2024-2025
Husqvarna FE501W 2024-2025
Husqvarna FE450 2024-2025
Husqvarna TE150 2024-2025
Husqvarna TE250 2024-2025
Husqvarna TE300 2024-2025
