Baja Designs XL40 (D/C) LED Headlight Kit for KTM (2017-19) 50-300 XC-W/XC-W TPI; 250-500 EXC-F, w/ KTM (2017-19) Shell

SKU: 82-0015

Baja Designs XL40 (D/C) LED Headlight Kit for KTM 50-300 XC-W/XC-W TPI; 250-500 EXC-F, w/ KTM Shell

Upgrade your off-road lighting with the Baja Designs XL40 (D/C) LED Headlight Kit — purpose-built for 2017–2019 KTM XC-W, XC-W TPI, and EXC-F motorcycles. Inspired by the performance of the XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes. Engineered for dirt bikes with lower-output OEM stators, it draws just 43.5W — a powerful upgrade without the large power draw.

Paired with the signature XL Trail Lens, the XL40 produces both vertical and horizontal beam patterns with exceptional near-field and peripheral visibility. The Trail Lens redistributes center beam intensity to eliminate harsh hot spots — improving clarity through vertical transitions, quick elevation changes, and tight corners. The result is a smooth, evenly distributed field of light that inspires confidence in the most demanding terrain.

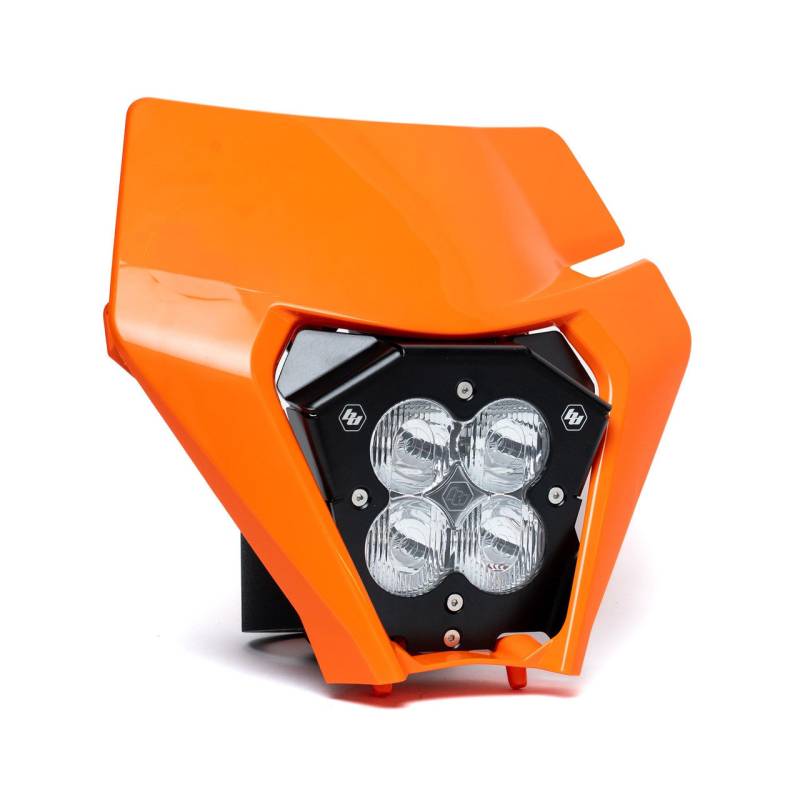

The XL40 comes pre-installed in a new KTM '17–19 headlight shell for plug-and-play installation. Backed by a 30-day satisfaction guarantee and Lifetime Limited Warranty.

Note: For Hi/Low functionality, the KTM/Husqvarna Hi/Low Harness (12-9016) is required and sold separately. The Hi-Beam Indicator will remain on when using the Hi/Low KTM/Husqvarna relay harness.

Was: $552.99

Sale: $459.99

Save: 17%

Save: $93.00

Description
Video
Details
Shipping
Documents
Reviews

Description

Kit Includes:
•(1x) XL40 (D/C) – Trail Lens Clear
•(1x) KTM 17-19 Headlight Shell
•All Necessary Mounting Hardware

XL40 Specifications (per light):
•Lumens: 5,224 (Hi)/ 1,435 (Low)
•Watts/Amps: 43.5W/3.4A @ 12.8V

XL40 ELS Score:
•XL40, Trail lens, high beam: 92°/5.9/226’/5224
•XL40 Trail lens, low beam: 74°/5.9/119’/1435

The Baja Designs Advantage
•Satisfaction Guarantee – 30-Day Money Back Guarantee
•Limited Lifetime Warranty – Complete Purchase Protection
•uService – Replaceable Lenses And Optics
•ClearView – All The Light, Right Where You Need It
•MoistureBlock – Waterproof, Rain Proof, Submersible
•CopperDrive – Safely Driving LEDs at 100 Percent
•5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
•Product Type XL40
•Overvoltage Protection Built-In
•Mounting Hardware Included Yes
•Lighting Type Forward Projecting
•Lighting Technology LED
•Lighting Quantity 4
•Lighting Modes Beam
•Light Quantity 1
•Lens Material Hardcoated Polycarbonate
•Lens Color Clear
•Mounting Hardware Material Stainless Steel
•Universal or Specific Universal
•Wiring Harness Included No
•Wattage (W) 43.5
•Housing Material Powder Coated Cast Aluminum
•Housing Color Black
•Description Trail; Clear
•Brightness (Lumens) 5,224 (Hi) / 1,435 (Low)
•Bezel Material Powder Coated Cast Aluminum
•Beam Pattern Trail
•Average Rated Life (hr.) 49930
•Amperage Rating (A) 3.4 High: 92°/5.9/226’/5224; Low: 74°/5.9/119’/1435

Standards & Compliance
•Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
•Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
•Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)

Dimensions
•Weight (lbs.) 2.45
•Length (in.) 4.43
•Height (in.) 4.43
•Depth (in.) 3.65

Fitment:
KTM 150 XC-W 2017-2019
KTM 250 XC-W TPI 2019
KTM 300 XC-W TPI 2019
KTM 300 XC-W TPI Six Days 2019
KTM 250 EXC-F 2017-2019
KTM 350 EXC-F 2017-2019
KTM 500 EXC-F 2017-2019
KTM 450 EXC-F Six Days 2019
