Warn ZEON XP 10-S Winch, 10,000 lb Synthetic Rope

The WARN ZEON XP 10-S is a 10,000 lb winch built for mid-size trucks, SUVs, and Jeeps. It comes with 100 ft of 3/8 in synthetic rope and a hawse fairlead.

Use it for self-recovery on the trail, pulling another rig out of mud, sand, or snow, clearing downed trees, or moving heavy loads around the ranch or job site.

ZEON XP is WARN's top-of-the-line truck winch, with new controls and feedback that let you work the winch with confidence. Every XP is assembled in Clackamas, Oregon. WARN has been building recovery and off-road equipment since 1948, and it designs, engineers, and tests its products at its Oregon headquarters.

Specifications

• Part Number: 110100
• Rated Line Pull: 10,000 lb
• Rope Material: Synthetic rope
• Rope Diameter: 3/8 in
• Rope Length: 100 ft
• Fairlead: Hawse
• Motor Type: Series Wound
• Motor Voltage: 12V DC
• Gear Ratio: 141:1
• Gearing: 3-Stage Planetary
• Brake Type: Cone
• Brake Activation: Automatic
• Free Spooling: Yes
• Remote Included: Yes
• Remote Type: Wire, Wireless
• Contactor/Solenoid: Yes
• Power In/Power Out: Yes
• Hook Hand Saver: Yes

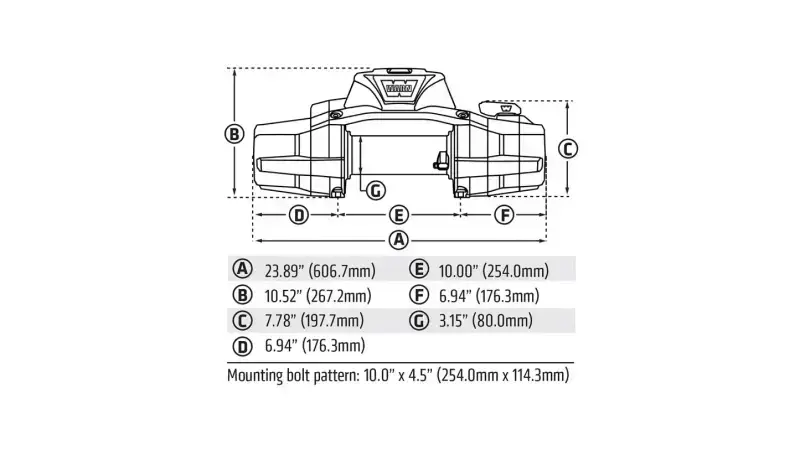

• Overall Length: 23.9 in
• Overall Width: 7.1 in
• Overall Height: 10.5 in
• Mounting Bolt Pattern Length: 4.5 in
• Mounting Bolt Pattern Width: 10 in
• Mounting Hole Quantity: 4
• D Shackle Included: No
• Winch Type: Electric

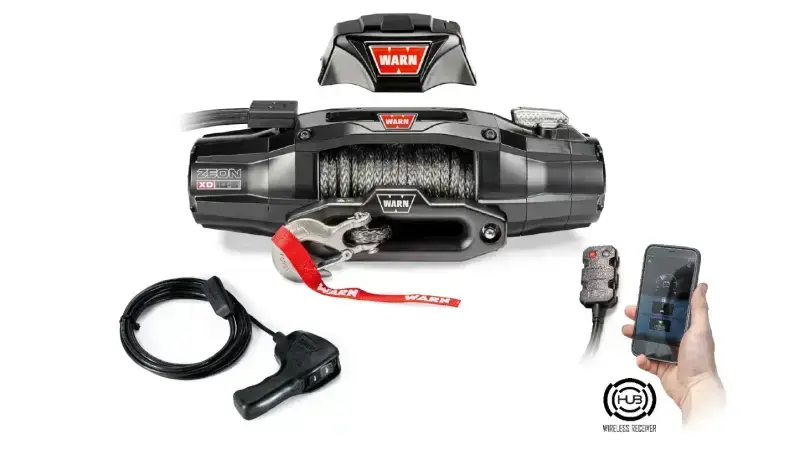

What's Included

• WARN ZEON XP 10-S winch
• 100 ft of 3/8 in synthetic rope
• Hawse fairlead
• Wire, Wireless remote

Fitment

• Requires a compatible winch mount, winch plate, or winch-ready bumper (sold separately)
• Mounting bolt pattern: 4.5 in x 10 in, 4 holes

Manuals & Warranty

• Zeon XD & XP - Winch Operation Guide
• Zeon XP - Installation Guide
• Zeon XP - Product Brochure
• Zeon XP - Quick Start Guide
• Zeon XP - Replacement Part List Only
