Warn M8274 10,000lb Winch with Steel Rope - 106170

106170
Warn M8274 10,000lb Winch with Steel Rope - 106170

The M8274–Warn Industries’ most iconic winch—is evolving. It will maintain all the things buyers love about the product: speed, durability, and its famous shape, but we’ve added more performance and more features. Comes with 125’ of 3/8” diameter aircraft-grade steel cable.

The M8274 is evolving. We took our most iconic winch and added more performance and more features. It is still the fastest of any WARN winch and has the longest rope length (150’), but we’ve added more power courtesy of a 6hp motor, a 10,000 lb. capacity, and contactor control. The legend continues.

•High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)—ideal for today’s larger, heavier vehicles
•IP68 waterproof Albright electrical contactor for the ultimate in reliability and control
•Restyled high-strength polymer control pack housing for a modern twist on classic styling
•Ergonomic stainless steel clutch T-handle is easier to use than before
•Two Oilite® bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
•Bolt-and-washer assembly replaces retaining ring on brake shaft
•Made in the USA in Clackamas, Oregon
Availability: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle
Was: $4,536.99
Sale: $3,212.99
Save: 29%
Save: $1,324.00

Qty:
Free Shipping

Description

Specifications:

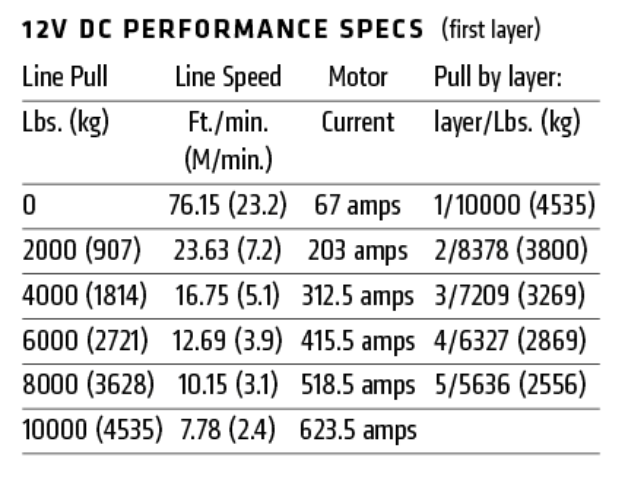

•Rated Line Pull 10,000 lbs. (4536 kg) single-line
•Motor 12V DC, 6HP Series Wound
•Electrical controls Contactor
•Remote Control Remote switch, 12’ (3.7m) lead
•Geartrain 3 Stage Spur Gear
•Gear ratio 134:1
•Clutch (freespooling) Sliding motor pinion gear
•Brake Automatic disc type

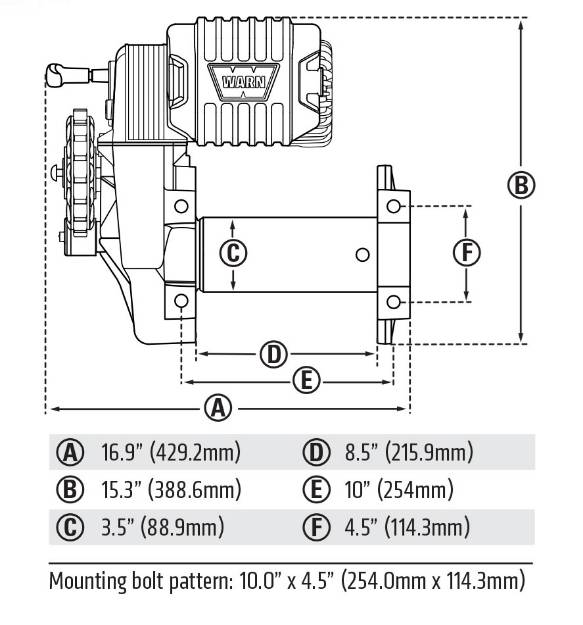

•Drum diameter/Length 3.5”/8.5” (9cm/22cm)
•Rope M8274: 3/8” x 125’ Steel rope
•Replacement Rope M8274: 3/8” x 125’ Steel rope - Replacement PN 106141
•Fairlead M874: Roller Fairlead
•Recommended Battery 650 CCA minimum for winching
•Battery leads 2 gauge, 72” (1.83m)
•Finish Powder coat with clear coat
•Weight M8274-S, M8274: 90lb (40.8kg)
•Warranty Limited lifetime (mechanical components); seven year (electrical components)

Details

  • 106170
  • 106170
  • Warn
  • This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 27.0 lbs.
  • W6.2500” x H17.5000” x L12.5000”
  • Free Shipping
