Warn ZEON XC 12 Winch, 12,000 lb, No Rope

The WARN ZEON XC 12 is a 12,000 lb winch built for full-size pickups and SUVs. It ships without rope so you can spool on the line you prefer.

Use it for self-recovery on the trail, pulling another rig out of mud, sand, or snow, clearing downed trees, or moving heavy loads around the ranch or job site.

ZEON XC takes the ZEON XD platform and packs it into a compact, low-profile body for tight mounting spaces. Every XC is assembled in Clackamas, Oregon. WARN has been building recovery and off-road equipment since 1948, and it designs, engineers, and tests its products at its Oregon headquarters.

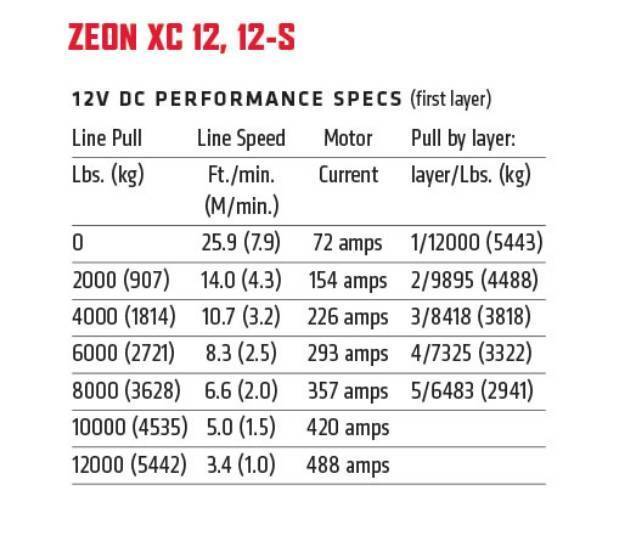

Specifications

• Part Number: 110312
• Rated Line Pull: 12,000 lb
• Rope Material: Not Included
• Rope Length: N/A ft
• Fairlead: Not Included
• Motor Type: Series Wound
• Motor Voltage: 12V DC
• Gear Ratio: 176:1
• Gearing: 3-Stage Planetary
• Brake Type: Cone
• Brake Activation: Automatic
• Free Spooling: Yes
• Remote Included: Yes
• Remote Type: Wire
• Contactor/Solenoid: Yes
• Power In/Power Out: Yes
• Hook Hand Saver: Yes

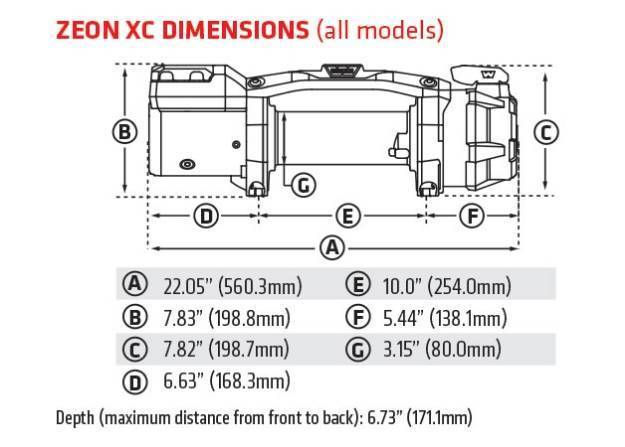

• Overall Length: 22 in
• Overall Width: 6.7 in
• Overall Height: 7.8 in
• Mounting Bolt Pattern Length: 4.5 in
• Mounting Bolt Pattern Width: 10 in
• Mounting Hole Quantity: 4
• D Shackle Included: No
• Winch Type: Electric

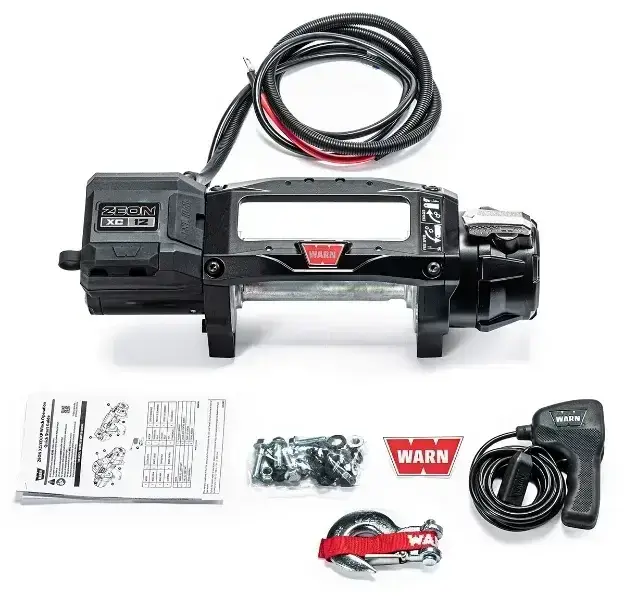

What's Included

• WARN ZEON XC 12 winch
• Not included fairlead
• Corded remote

Fitment

• Requires a compatible winch mount, winch plate, or winch-ready bumper (sold separately)
• Mounting bolt pattern: 4.5 in x 10 in, 4 holes

Manuals & Warranty

• ZEON XC Control Pack Relocation Kit Instructions
• Zeon XC - Winch Service Manual
• Truck, Jeep and SUV Winch Warranty
• The Basic Guide to Winching Techniques
