BD Diesel Towmaster Transmission & Converter Package AISIN AS69RC for Ram (2013-18) 3500/4500/5500 6.7L, 4WD
1064274SS
BD Diesel Towmaster Transmission & Converter Package AISIN AS69RC for Ram 3500/4500/5500 6.7L, 4WD

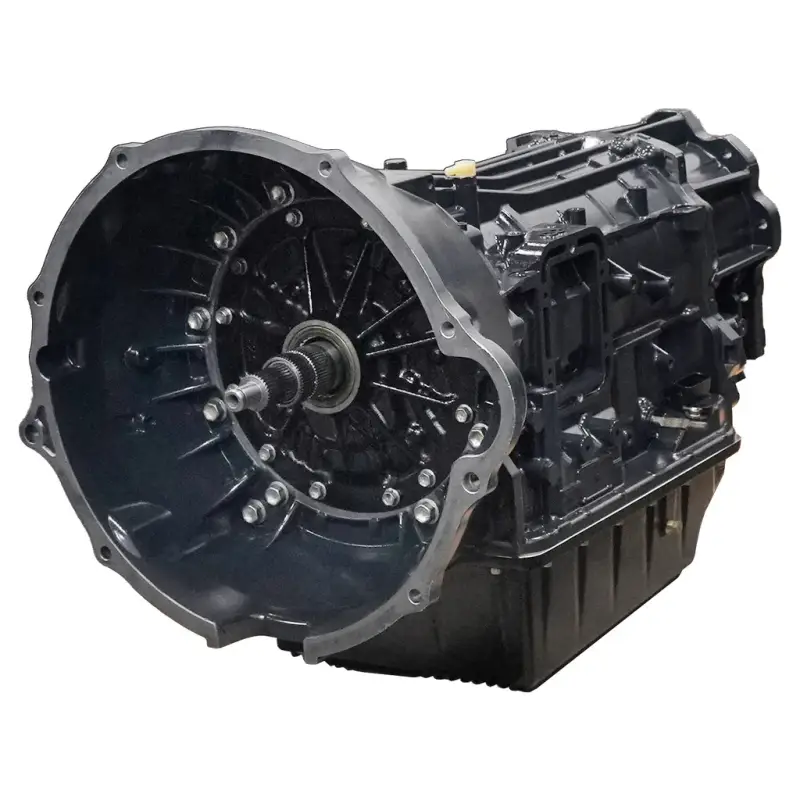

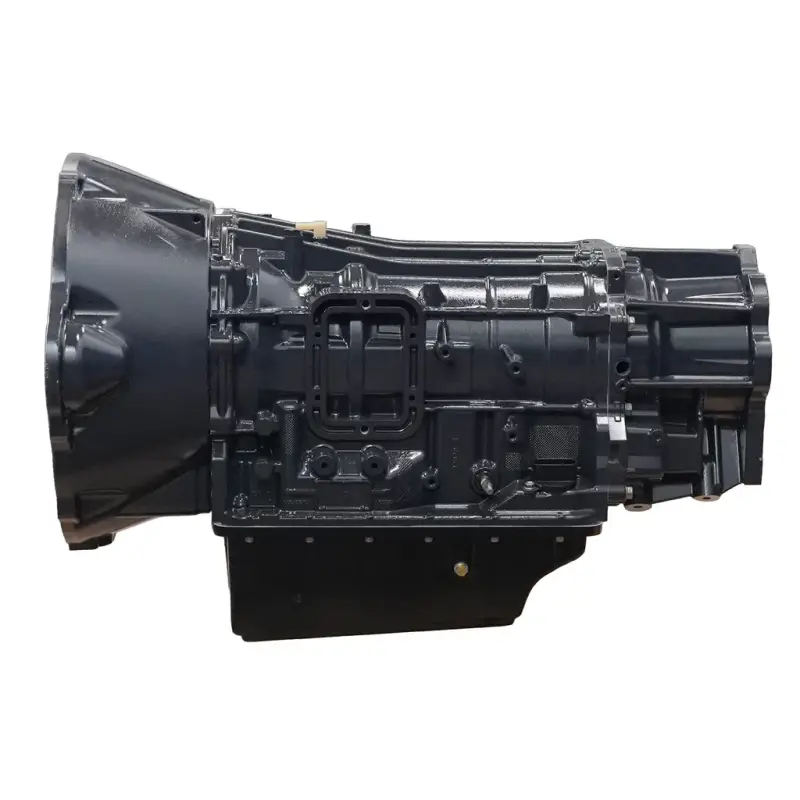

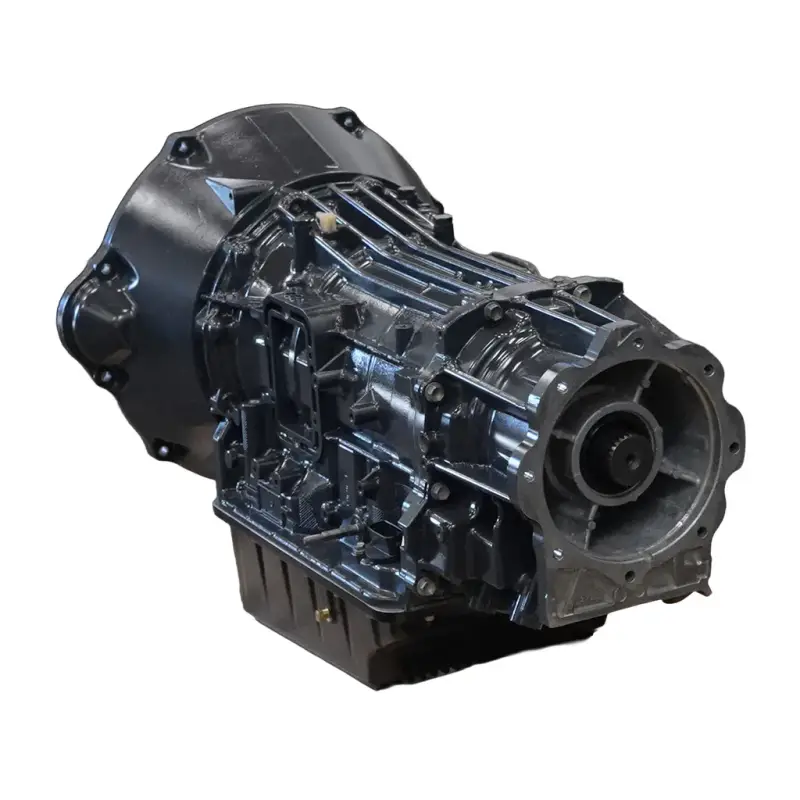

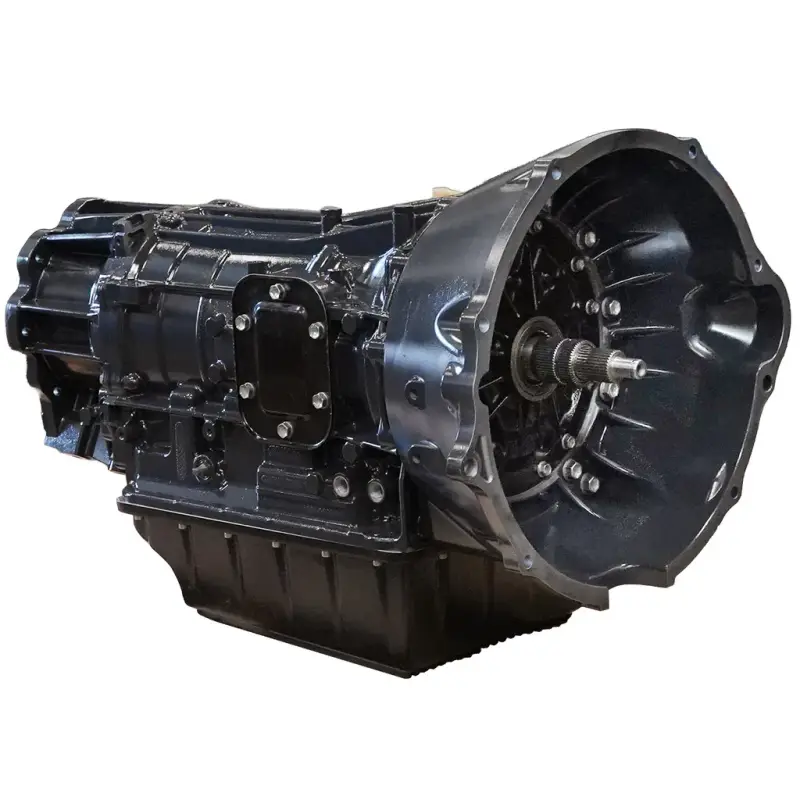

This Aisin Towmaster transmission is designed to handle the output of modified engines, featuring a proprietary, hardened billet K2 hub and billet K3 drum to eliminate the primary failure points of the transmission. Using these billet components the clutch capacity has been increased in K2, K3 and B1 clutch packs to increase torque capacity and durability. An upgraded valve body with a new stiffer pressure regulator spring to increase max line pressure and improve clutch apply. The deep sump pan enhances fluid cooling, and custom nitrile gaskets offer leak-free performance compared to OEM cork gaskets. Great for those with modified trucks looking to replace their transmission with a heavy-duty alternative, and the peace of mind knowing common failures have been corrected. The Towmaster Aisin includes an OE style ProForce torque converter.
This Aisin Towmaster transmission is designed to handle the output of modified engines, featuring a proprietary, hardened billet K2 hub and billet K3 drum to eliminate the primary failure points of the transmission. Using these billet components the clutch capacity has been increased in K2, K3 and B1 clutch packs to increase torque capacity and durability. An upgraded valve body with a new stiffer pressure regulator spring to increase max line pressure and improve clutch apply. The deep sump pan enhances fluid cooling, and custom nitrile gaskets offer leak-free performance compared to OEM cork gaskets. Great for those with modified trucks looking to replace their transmission with a heavy-duty alternative, and the peace of mind knowing common failures have been corrected. The Towmaster Aisin includes an OE style ProForce torque converter.
Was:
$10,201.99
Sale:
$8,500.99
Save:
17%
Save:
$1,701.00
Description
Features

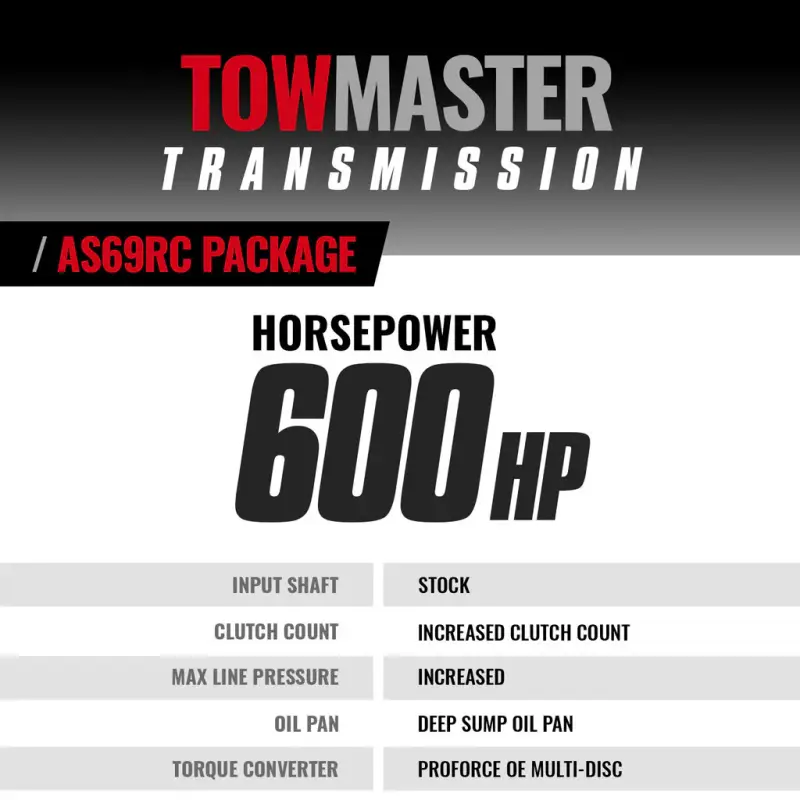

TRANSMISSION

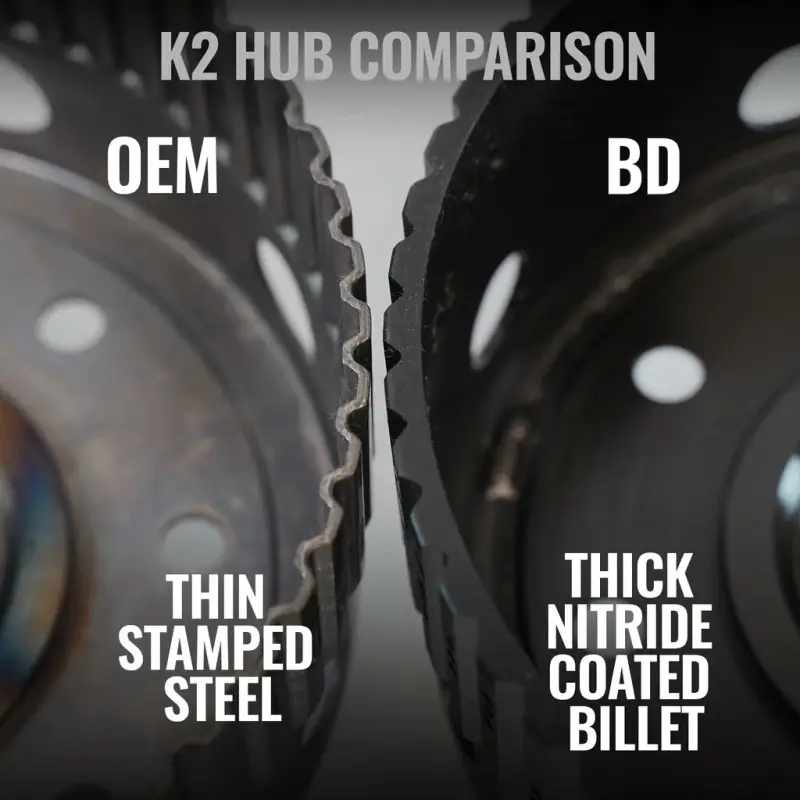

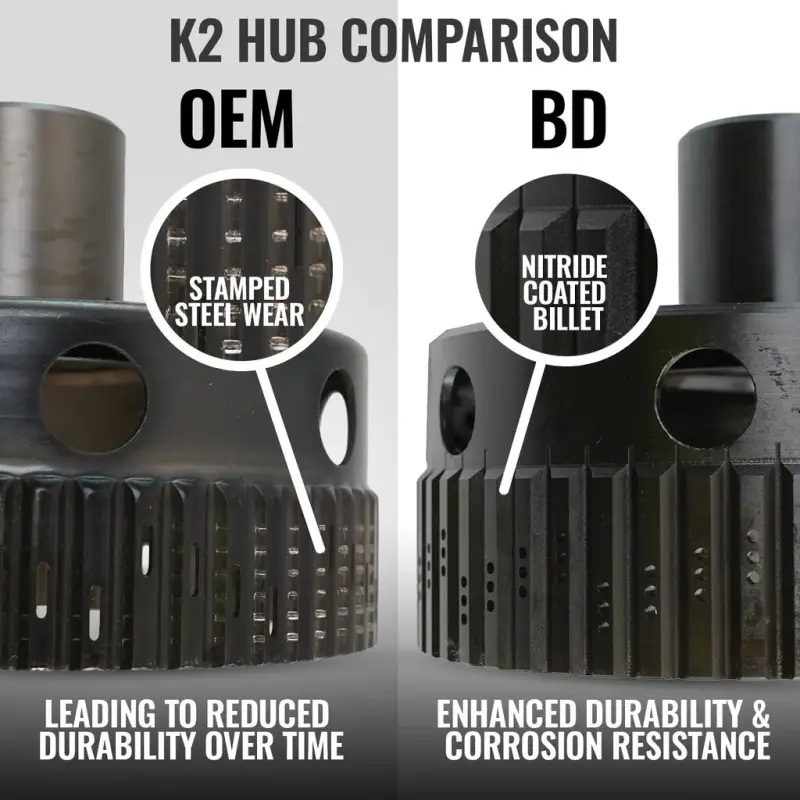

•BD Billet nitride coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions

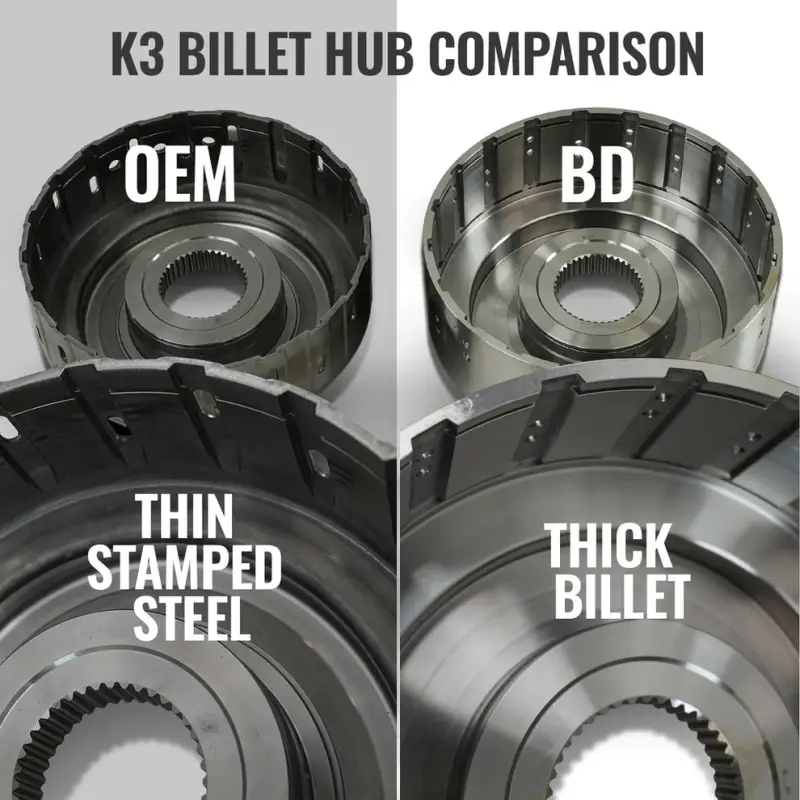

•Billet K3 Drum provides increased durability and strength

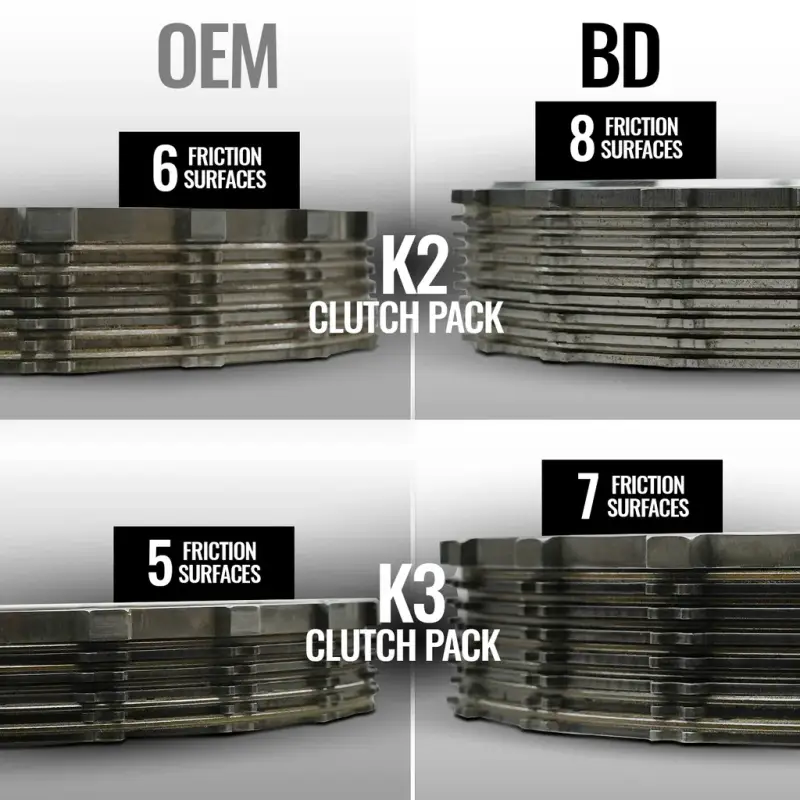

•More clutches compared to stock and competitors for increased clutch torque capacity and durability
•Clutch Count K1: 7
•Clutch Count K2: 8 (33% increase over stock)
•Clutch Count K3: 7 (40% increase over stock)
•Clutch Count B1: 6 (20% increase over stock)
•Clutch Count B2: 8
•Increased valve body line pressure for increased clutch holding capacity

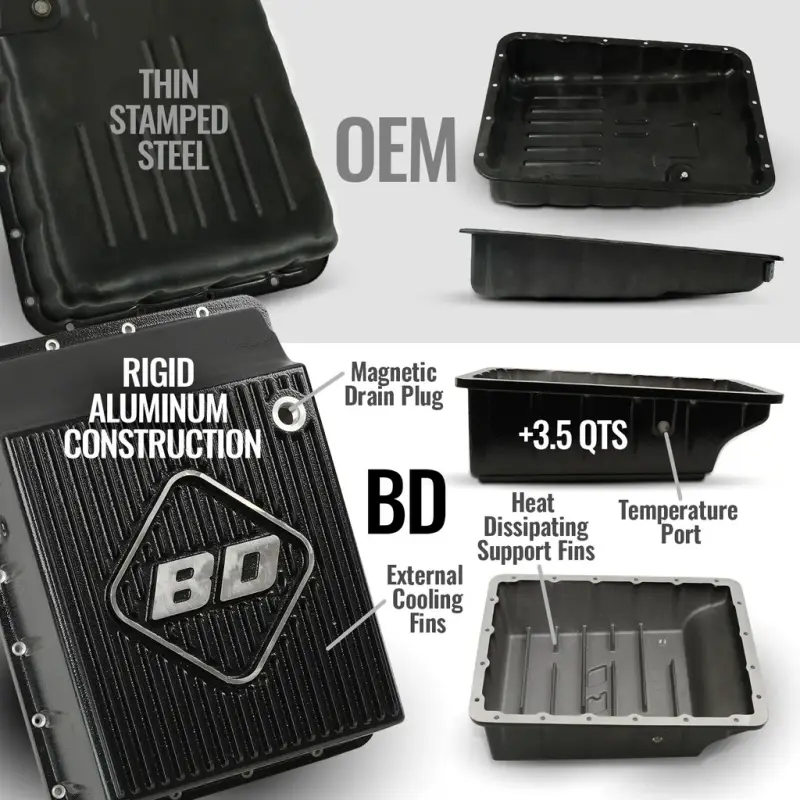

•BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling

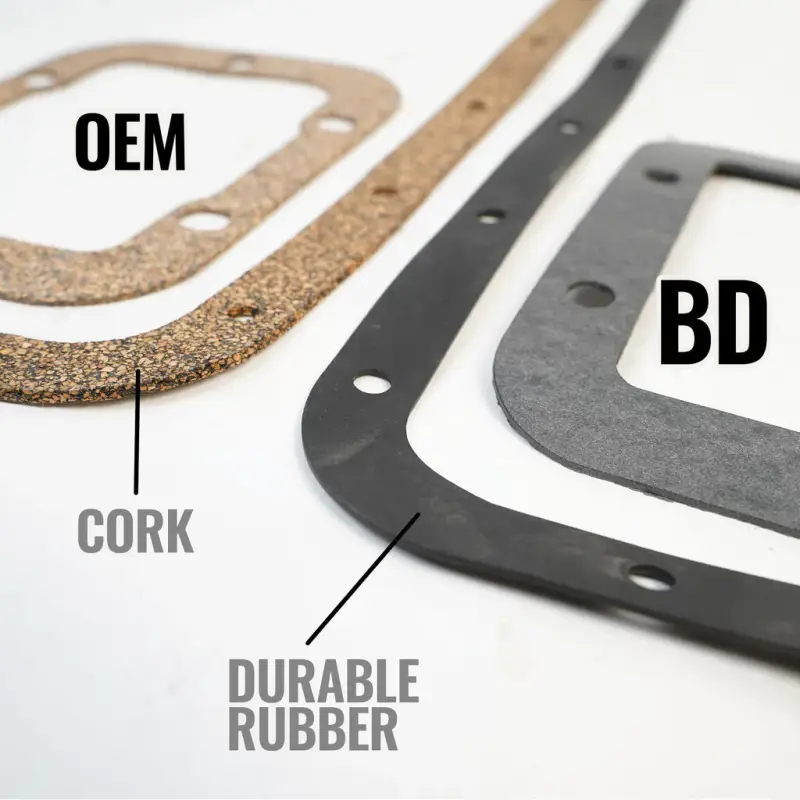

•Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets

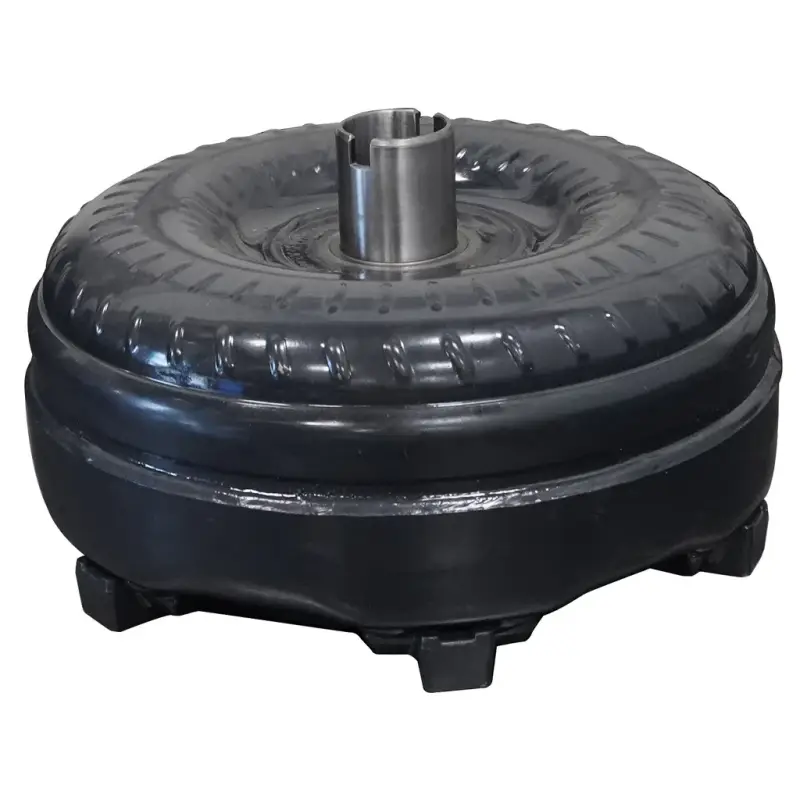

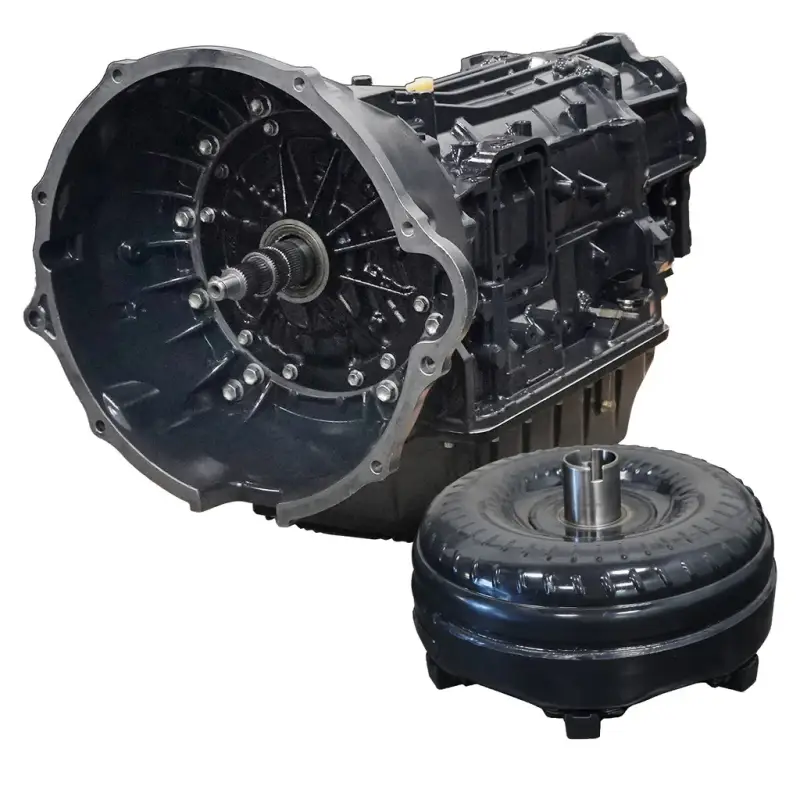

PROFORCE CONVERTER
•New Clutches for reliable, strong converter clutch apply (3 frictions and 3 steels)
•New sprag for reliable stator operation
•Cost-effective OEM replacement to accompany a transmission replacement
INSTALL TIME
8 Hours
WARRANTY
Parts
•24-Months
Labor
•12-Months
NOTE
2WD models come standard with a PTO provision on the Right Hand side of the transmission. Left Hand sided PTO provision is a special order from factory. Please confirm which side the PTO provision is on before ordering.
Replaces OEM Part #'s: (2WD) 68300149AB, R8300149AB
Replaces OEM Part #'s: (4WD) 68300150AB, R8300150AB
EMISSIONS
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
TRANSMISSION
•BD Billet nitride coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions
•Billet K3 Drum provides increased durability and strength
•More clutches compared to stock and competitors for increased clutch torque capacity and durability
•Clutch Count K1: 7
•Clutch Count K2: 8 (33% increase over stock)
•Clutch Count K3: 7 (40% increase over stock)
•Clutch Count B1: 6 (20% increase over stock)
•Clutch Count B2: 8
•Increased valve body line pressure for increased clutch holding capacity
•BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling
•Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets
PROFORCE CONVERTER
•New Clutches for reliable, strong converter clutch apply (3 frictions and 3 steels)
•New sprag for reliable stator operation
•Cost-effective OEM replacement to accompany a transmission replacement
INSTALL TIME
8 Hours
WARRANTY
Parts
•24-Months
Labor
•12-Months
NOTE
2WD models come standard with a PTO provision on the Right Hand side of the transmission. Left Hand sided PTO provision is a special order from factory. Please confirm which side the PTO provision is on before ordering.
Replaces OEM Part #'s: (2WD) 68300149AB, R8300149AB
Replaces OEM Part #'s: (4WD) 68300150AB, R8300150AB
EMISSIONS
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
