ReadyLIFT 6'' MAX3.3 Suspension System for Chevy/GMC (2019-24) 1500 (w/ Falcon 3.3 Shocks)

•Heavy-Duty Lift Components
•Boxed steel front and rear crossmembers
•Full-width 3/16” & 8” front skid plate
•1/4” boxed plate steel differential drop brackets with double gussets and a center rib for added strength
•5” fabricated rear lift blocks with integrated bump stop landings
•Factory Ride and Turning Radius Retained
Enjoy all the benefits of a lifted truck—aggressive stance, increased clearance—without sacrificing comfort or drivability.

Wheel & Tire Fitment:
•Recommended (no trimming):
20x9, 0 offset wheels with 35x12.50 tires
•Max Fitment (with trimming):
20x10, -18 offset wheels with 35x12.50 or 325/60R20 tires
Note: May require trimming of front valance, inner fender liners, and mud flaps

Thousands of miles of testing on highways, trails, and everything in between prove that this new ReadyLIFT system doesn’t just lift—it elevates performance. This is the lift kit that makes your GM 1500 drive better than stock.

NOTES:
•If used on a AT4 or Trail Boss you will get a net a 4" over factory stock height. If used on a AT4X or ZR2 you will net a 4" over factory stock height and will remove the Multimatic shocks and lose that functionality.
•Use of Auto 4 Hi feature not recommended. Not for use on Diesel as we don’t include an oil line relocation bracket or Denali models. Not compatible with Adaptive Ride Control or keeping Multimatic suspension. Not compatible with rear mono-leaf springs. Click here to learn how to determine if you have rear mono-leaf springs. Not compatible with Super Cruise. Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

20x9 0 offset - 35x12.50 tire.*Max with trimming: 20x10 -18 offset - 35x12.50 or 325/60R20*Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge and front rear well edge mud flap.
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

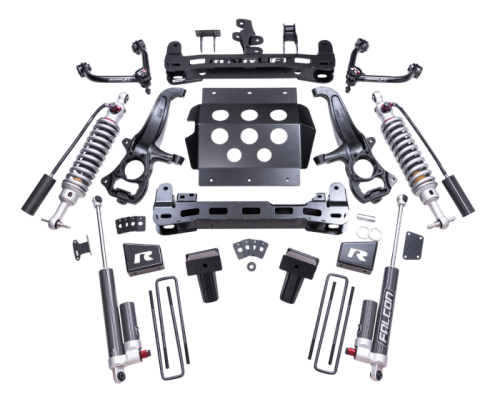

Kit Includes:
•UPPER CONTROL ARM KIT

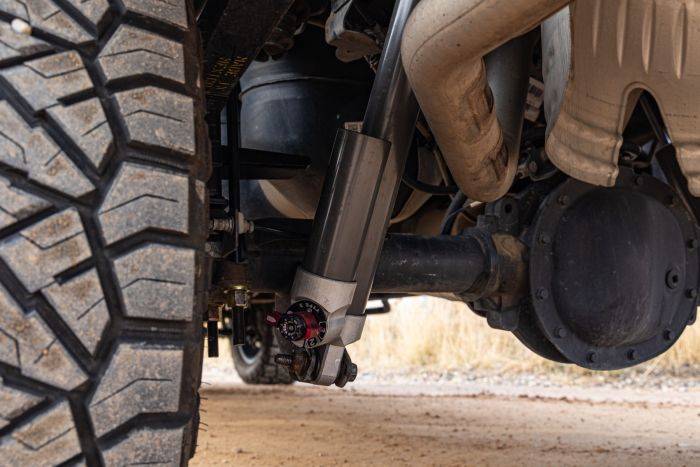

•FALCON REAR SHOCK
•FALCON FRONT RIGHT COILOVER GM 1500 6 IN
•FALCON FRONT LEFT COILOVER GM 1500 6 IN
•Front Cross Member
•Rear Cross Member

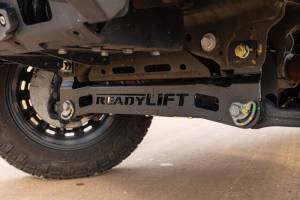

•Skid Plate
•Driver Diff Drop
•Passenger Diff Drop
•Passenger Diff Drop Spacer
•Rear Diff Drop
•Diff Drop Crush Sleeve
•Sway Bar Bracket Driver
•Sway Bar Bracket Passenger
•Cam Block Off Plate
•51071B-2 PRO COMP Driver Knuckle
•51071B-3 PRO COMP Passenger Knuckle
•Driver Fabricated Block (5" Tall/Tapered 5 degree/Offset pin)
•Pass. Fabricated Block (5" Tall/Tapered 5 degree/Offset pin)
•Rear Brake Line Bracket
•Rear ABS Bracket
•CV Axle Spacer (1/4" thick outer spacer)
•9/16-18 BARREL NUT & HEAVY WASHER
•GM 1500 1.1 SHK RR
•HARDWARE PACK
