Icon 1.25-3" Lift, Suspension System for Toyota (2025) 4Runner 4WD (Stage 4)
K53404
Icon 1.25-3" Lift, Suspension System for Toyota 4Runner 4WD (Stage 4)
ICON Vehicle Dynamics 2025 Toyota 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
ICON Vehicle Dynamics 2025 Toyota 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
Was:
$7,833.99
Sale:
$6,527.99
Save:
17%
Save:
$1,306.00
Description
Features
•Vehicle specific tuned 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
•Increased wheel travel and improved ride quality over stock
•Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
•Ride height adjustable coilovers provide 1.25-3" of front lift height over stock
•Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
•UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
•6061 aircraft grade aluminum CNC machined components
•Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
•Dual rate rear coil springs improve performance and ride quality while providing .75" of rear lift
•Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
•On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
•FK Rod End bearings for extended longevity and minimal deflection
•2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
•Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #1: Only fits 4WD models
•APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
•APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
•APPLICATION NOTE #150: Shocks are fully serviceable
•APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
•APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

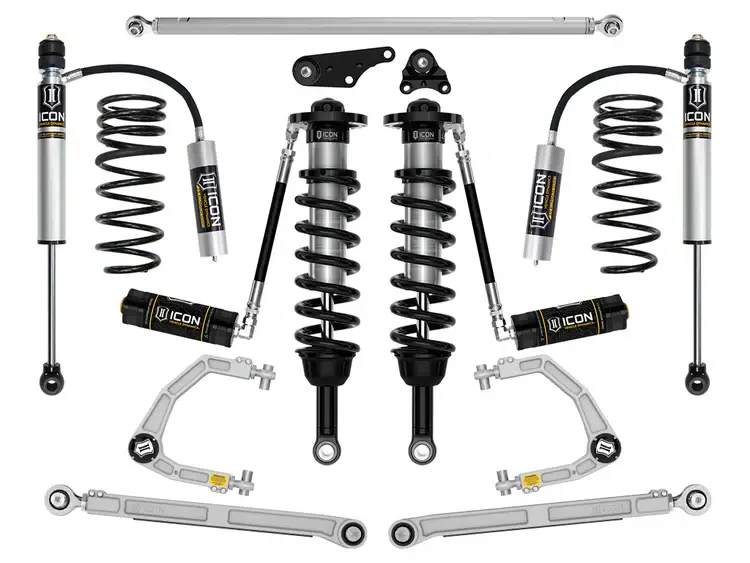

System Components
•58795 (qty: 1) | 25 4RUNNER 4WD FRONT 2.5 VS RR COILOVER KIT
•58552DJ (qty: 1) | 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT
•55160 (qty: 1) | 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT
•52753 (qty: 1) | 25 4RUNNER .75" DUAL RATE REAR SPRING KIT
•54003 (qty: 1) | 24-25 LC250/24-25 GX550/25 4RUNNER BILLET REAR LOWER LINK KIT
•54202 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
•56523R (qty: 1) | 25 4RUNNER 0-3" DRIVER REAR 2.0 VS RR
•56524R (qty: 1) | 25 4RUNNER 0-3" PASS REAR 2.0 VS RR
•Vehicle specific tuned 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
•Increased wheel travel and improved ride quality over stock
•Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
•Ride height adjustable coilovers provide 1.25-3" of front lift height over stock
•Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
•UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
•6061 aircraft grade aluminum CNC machined components
•Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
•Dual rate rear coil springs improve performance and ride quality while providing .75" of rear lift
•Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
•On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
•FK Rod End bearings for extended longevity and minimal deflection
•2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
Notes
•OEM Wheels & Tires Fitment: Yes
•Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
•Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
•Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #1: Only fits 4WD models
•APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
•APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
•APPLICATION NOTE #150: Shocks are fully serviceable
•APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
•APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
System Components
•58795 (qty: 1) | 25 4RUNNER 4WD FRONT 2.5 VS RR COILOVER KIT
•58552DJ (qty: 1) | 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT
•55160 (qty: 1) | 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT
•52753 (qty: 1) | 25 4RUNNER .75" DUAL RATE REAR SPRING KIT
•54003 (qty: 1) | 24-25 LC250/24-25 GX550/25 4RUNNER BILLET REAR LOWER LINK KIT
•54202 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
•56523R (qty: 1) | 25 4RUNNER 0-3" DRIVER REAR 2.0 VS RR
•56524R (qty: 1) | 25 4RUNNER 0-3" PASS REAR 2.0 VS RR
Details
- K53404
- K53404
- 840103435060
- ICON Vehicle Dynamics
- New
Categories
Shipping Information
- Item Requires Shipping
- 14.0 lbs.
- W4.0000” x H4.0000” x L41.0000”
