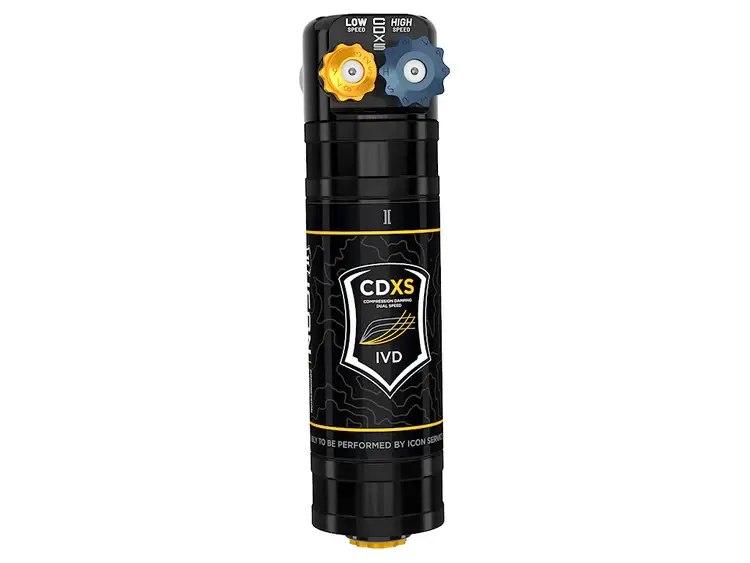

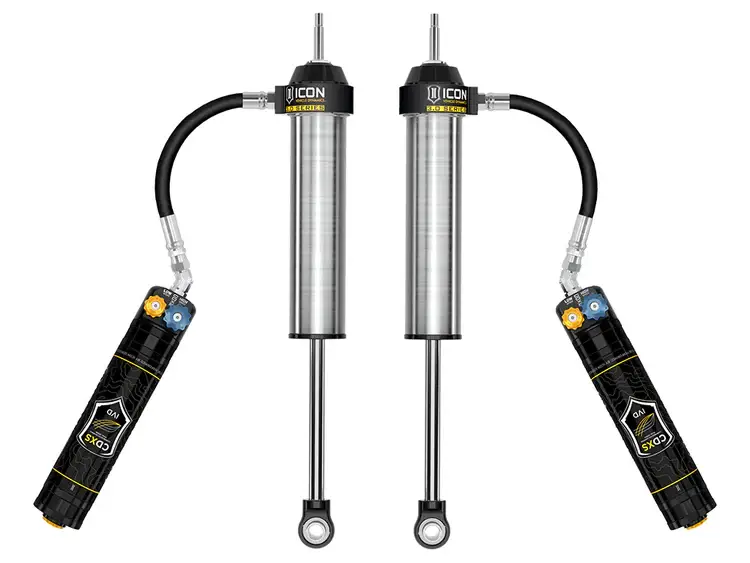

ICON 0-4" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDXS for Toyota (2023-25) Sequoia - 0-1.5” Lift for (2022-25) Tundra (Rear, Pair)
57845XP
ICON 0-4" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDXS for Toyota Sequoia - 0-1.5” Lift for Tundra (Rear, Pair)
ICON's 3.0 Series Rear Shocks with CDXS for 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or 4" over stock on Sequoia.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
ICON's 3.0 Series Rear Shocks with CDXS for 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or 4" over stock on Sequoia.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Was:
$2,856.99
Sale:
$2,379.99
Save:
17%
Save:
$477.00
Description
Features
•20% increase in rear suspension travel compared to stock
•Compatible with up to 1.5” of rear lift on most Tundra models or 3" of lift on Sequoia
•Vehicle specific design and tuning for superior shock damping and control
•3.0” Body diameter for increased oil volume and larger piston area

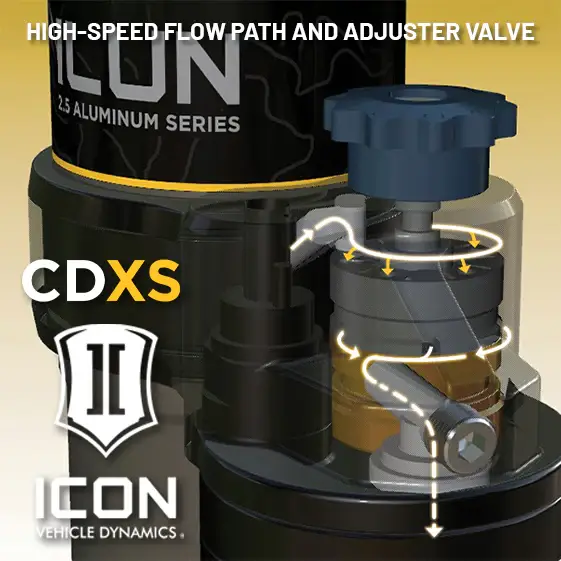

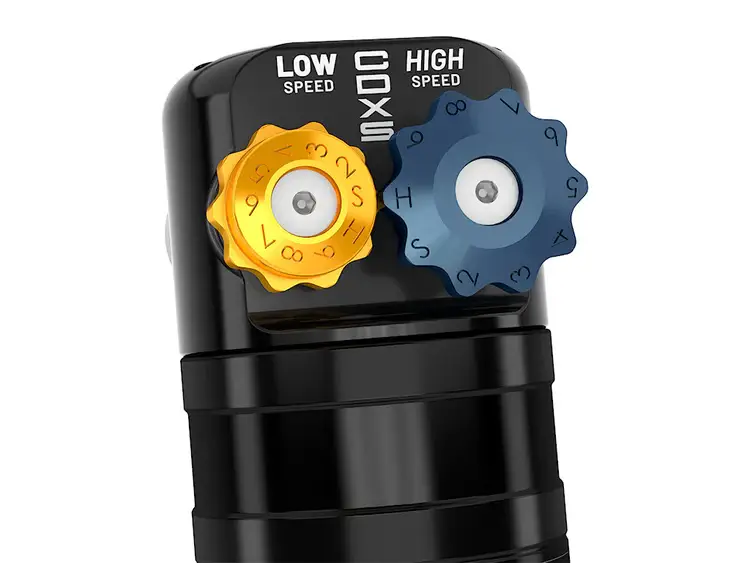

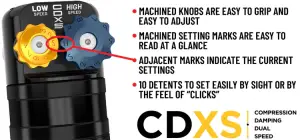

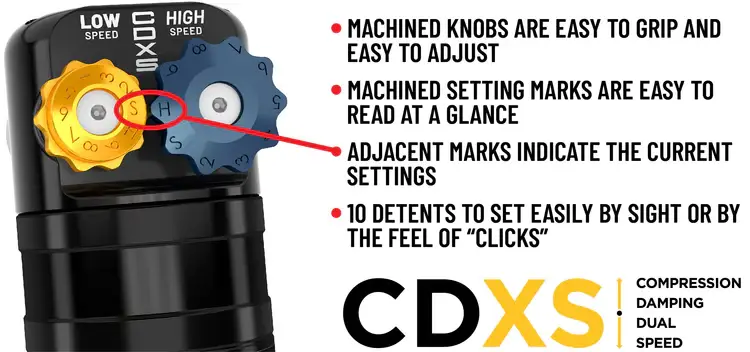

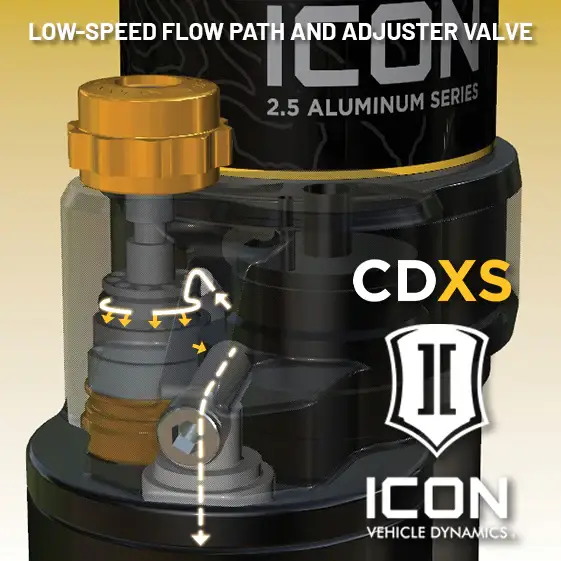

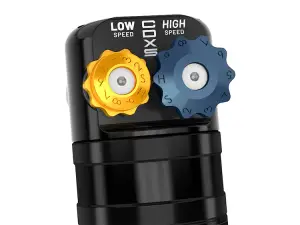

•ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
•CNC machined 6061 aluminum components with a black anodized finish
•PTFE lined spherical bearings for extended longevity and minimal deflection
•7/8” diameter induction hardened, chrome plated shock shafts
•Corrosion resistant CAD plated steel shock bodies
•Fully Rebuildable and Re-tunable
Notes
•APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
•TECH NOTE: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
•TECH NOTE: Compatible with 0-3.5” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
•TECH NOTE: Compatible with 0-4” of rear lift on non-TRD Sequoias equipped with rear coil springs or 0-2" lift on TRD Sequoias
•20% increase in rear suspension travel compared to stock
•Compatible with up to 1.5” of rear lift on most Tundra models or 3" of lift on Sequoia
•Vehicle specific design and tuning for superior shock damping and control
•3.0” Body diameter for increased oil volume and larger piston area
•ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
•CNC machined 6061 aluminum components with a black anodized finish
•PTFE lined spherical bearings for extended longevity and minimal deflection
•7/8” diameter induction hardened, chrome plated shock shafts
•Corrosion resistant CAD plated steel shock bodies
•Fully Rebuildable and Re-tunable
Notes
•APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
•TECH NOTE: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
•TECH NOTE: Compatible with 0-3.5” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
•TECH NOTE: Compatible with 0-4” of rear lift on non-TRD Sequoias equipped with rear coil springs or 0-2" lift on TRD Sequoias
Details
- 57845XP
- 57845XP
- 840103433370
- ICON Vehicle Dynamics
- New
Shipping Information
- Item Requires Shipping
- 60.0 lbs.
- W27.0000” x H12.0000” x L6.0000”
- Free Shipping
