ICON 6" Lift, Stage 7 Suspension System, Billet, CDXS for Toyota (2022-24) Tundra

Features
•2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

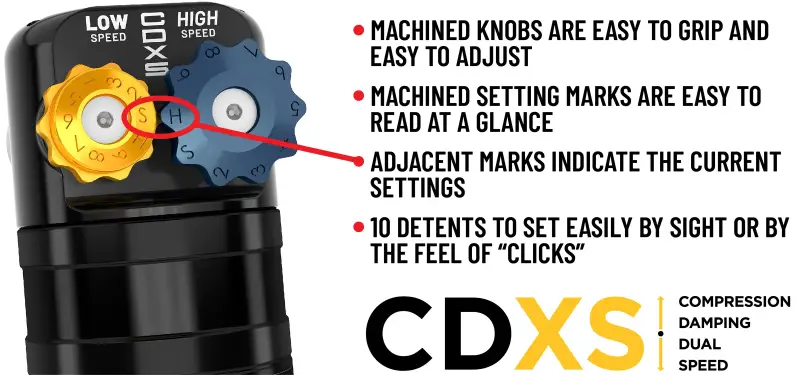

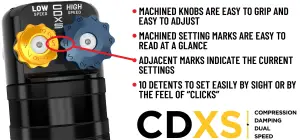

•All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
•System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
•Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
•Maintains factory track width
•Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
•Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
•Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
•Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
•Single piece high-strength ductile iron steering knuckles with built-in 4" drop
•Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
•Included sway bar drop brackets reduce bind in OE sway bar links
•Front and rear heavy-duty bump stop brackets
•High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
•ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
•Billet rear upper and high clearance lower links improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system

Notes
•OEM Wheels & Tires Fitment: No
•Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
•Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
•APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
•APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
•APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
•APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
•APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
•TECH NOTE: Requires minimum of 20" diameter wheels
•TECH NOTE: Models equipped with automatic leveling headlights also require part number 55153
•TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
•TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
•TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
•TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
•TECH NOTE: Provides 3" of rear lift on a Tundra equipped with TRD Off-Road or TRD Sport suspension packages and TRD Pro. A Tundra without TRD Off-Road or TRD Sport suspension packages will net 3.5" of rear lift.

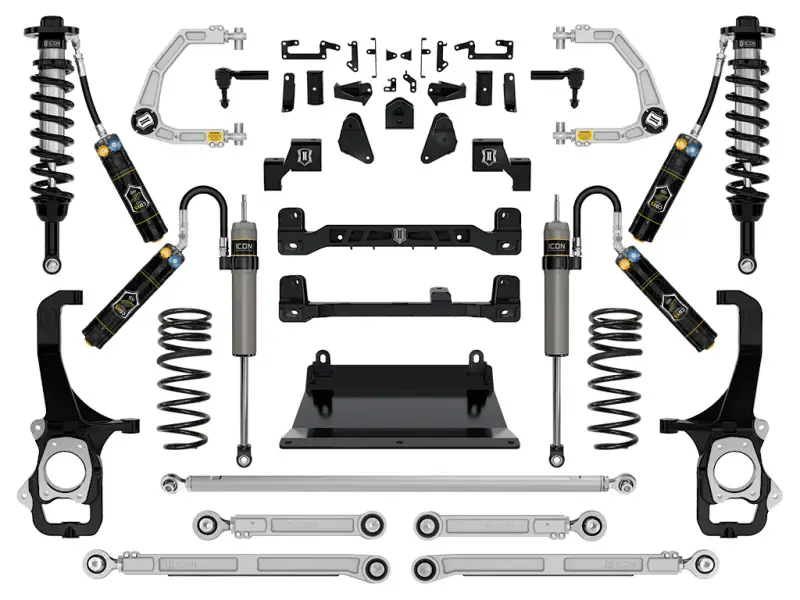

System Components
•51010 (qty: 1) | 22-24 TUNDRA FRONT BOX KIT 1
•51011 (qty: 1) | 22-24 TUNDRA FRONT BOX KIT 2
•51012 (qty: 1) | 22-24 TUNDRA REAR BOX KIT
•51014 (qty: 1) | 22-24 TUNDRA FRONT SKID PLATE
•58771X (qty: 1) | 22-24 TUNDRA 2.5 VS RR CDXS 6" COILOVER KIT
•51013 (qty: 1) | 22-24 TUNDRA REAR 3.5" LIFT TRIPLE RATE COIL SPRING KIT
•58561DJ (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT
•51017 (qty: 1) | 22-24 TUNDRA FRONT SKID PLATE
•57841XP (qty: 1) | 22-24 TUNDRA 3.5" REAR 2.5 VS CDXS RR PAIR
•54002 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA BILLET REAR LOWER LINK KIT
•54102 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT UPR LINK KIT
•54202 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
