SuperATV 6" Portal Gear Lift for Honda (2015-24) Rubicon (45% Gear Reduction, Billet Housing)
PGH6-3-15-451-B#AB
SuperATV 6" Portal Gear Lift for Honda Rubicon (3% Ge45r Reduction, Billet Housing)
Maximize Performance with GDP Portals

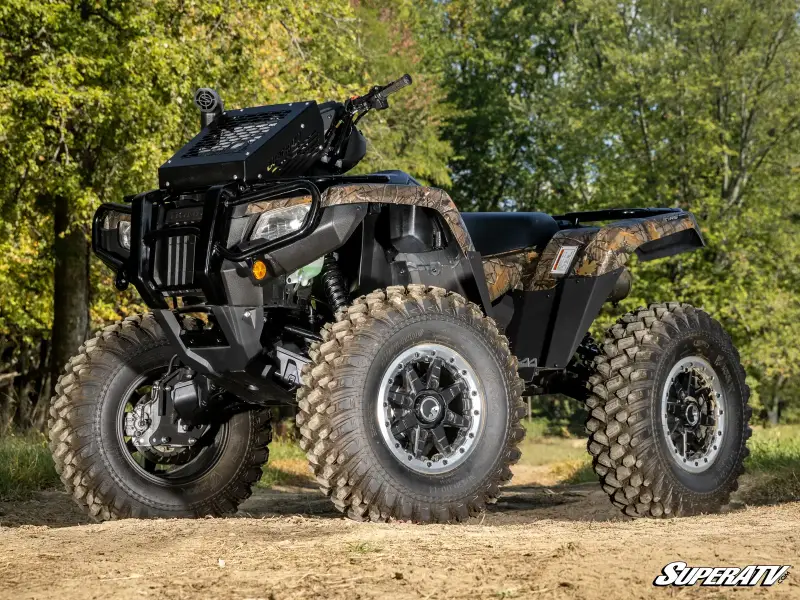

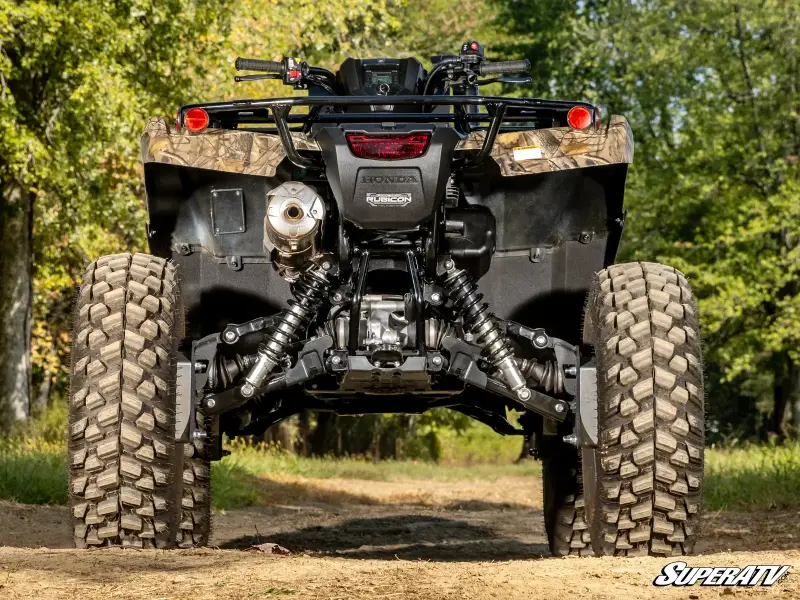

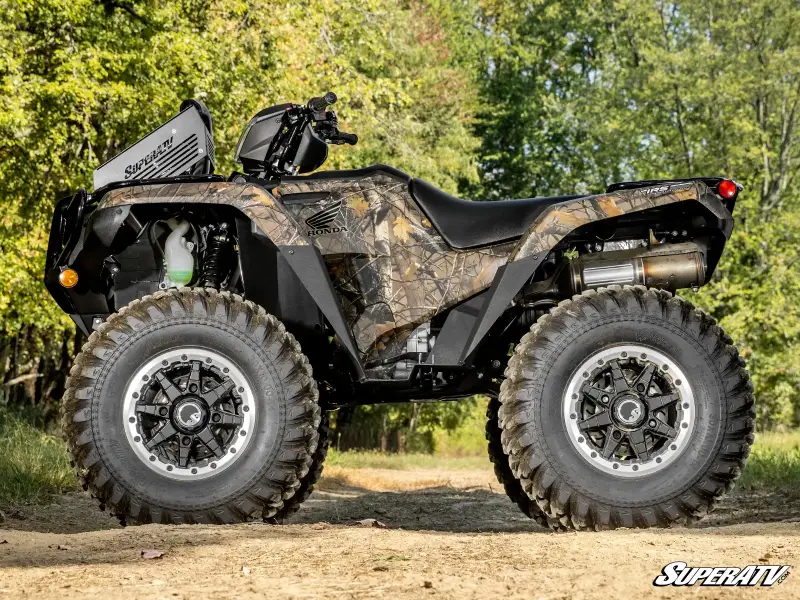

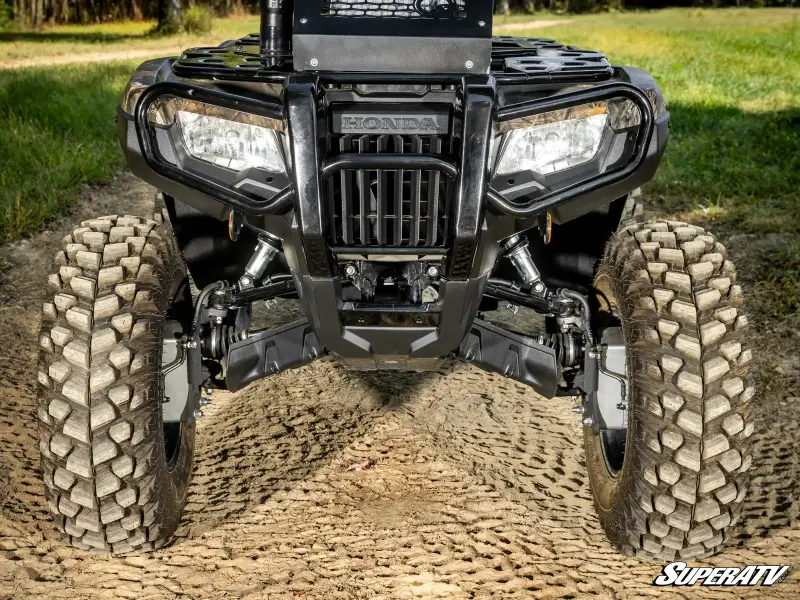

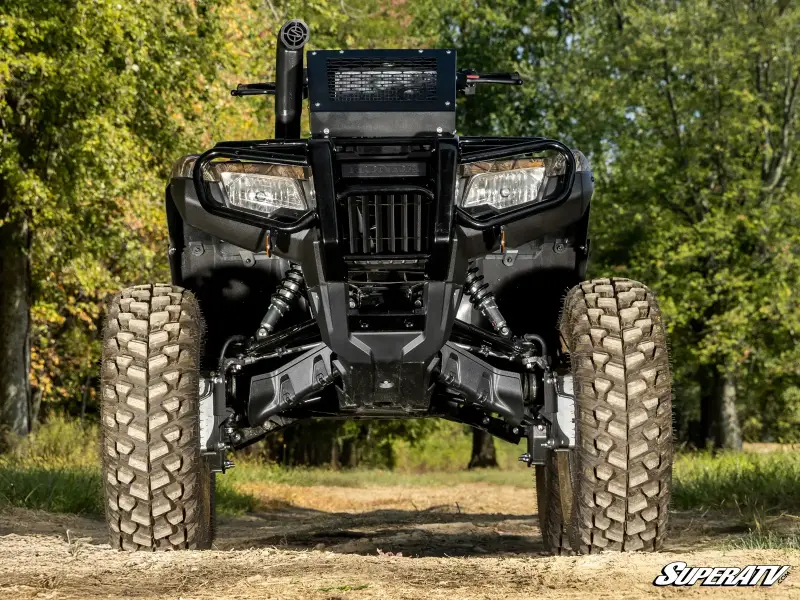

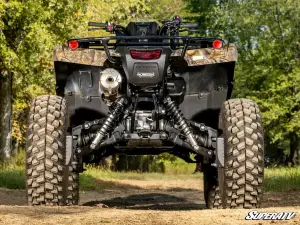

Take your Honda Rubicon beyond its limits with SuperATV’s 6” Portal Gear Lift. It gives you a lift and gear reduction in one package. And with your choice of a 30% or 45% gear reduction, you get the torque you need to conquer mud, rocks, and hills. You’ll also get more ground clearance and the ability to run bigger tires. If you want to dominate every ride, GDP Portals give you the power and performance to do it all.
Maximize Performance with GDP Portals
Take your Honda Rubicon beyond its limits with SuperATV’s 6” Portal Gear Lift. It gives you a lift and gear reduction in one package. And with your choice of a 30% or 45% gear reduction, you get the torque you need to conquer mud, rocks, and hills. You’ll also get more ground clearance and the ability to run bigger tires. If you want to dominate every ride, GDP Portals give you the power and performance to do it all.
Please Call for Availability
1-855-KTPERFORMANCE
Availability: Will ship approximately August 12, 2025
Description
Unmatched Torque and Power
A 30% or 45% gear reduction gives your Rubicon serious power. If you want to tackle deep mud, haul heavy loads, or run massive tires, go with the 45% reduction. If you want to maintain your top speed while boosting torque, the 30% reduction is your best bet.
Protect Your Drivetrain for the Long Haul
Extra power means extra strain—but these Honda Rubicon GDP Portals protect your drivetrain. The gear reduction is built into the hub, keeping your axles, differential, and transmission protected from excess wear. And since our Honda Rubicon portals maintain your stock suspension, your axles stay cooler and last longer.
Stronger, Smarter, Tougher
We don’t cut corners—our portals are built to last. Your choice of cast or 6061 billet aluminum housings, combined with Advanced steel backing plates, make them tough enough for anything the trail throws at you.
•Our housings are reinforced for gear retention and optimized for oil flow
•Advanced steel alloy backing plates are stronger than chromoly
•Enhance with Portal Blood—gear oil formulated for GDP Portals
•There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
•Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
•A sealed input gear and double-lipped output seal
•100% sealing coverage throughout so you can forget about oil leaks
•Double-angular contact output bearings to prevent premature wear
•Roller idler and drive bearings to maintain perfect gear meshing

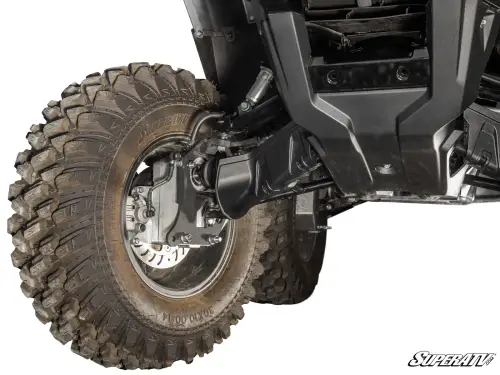

4” Portal Gear Lift Includes:
•(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
•(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
•(4) Specialized steel alloy backing plates
•(2) Steel caliper mounting plates
•(2) Caliper mounting plate shims
•Extended brake lines
•All required hardware, including recessed castle nut socket
Honda Rubicon Max Tire Size Recommendations
Tire Size Required Suspension Setup with 4" Portals
28" Stock
30" SuperATV Footwells
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Patent # 11,299,042
Patent # 11,318,787
FEATURES
•Available with billet or cast aluminum housing
•Cool, quiet, precision-ground gears made from 9310 alloy billet steel
•1.5 in. diameter 4340 hardened steel drive shaft
•Housings use gaskets or O-rings that don’t let anything through
•Universal hub fits all major bolt patterns
•Gear reduction reduces stress on your drivetrain
•Lighter than the competition
Fitment
Honda Rubicon 500 : 2015-2019
Honda Rubicon 520 : 2020+
NOTE: Only compatible on machines with IRS (Independent Rear Suspension)
Wheel Requirements
•14” or larger wheel required
•Cannot exceed 5” backspacing
•Not compatible with dual beadlock wheels
•1” wheel spacers required on stock wheels
A 30% or 45% gear reduction gives your Rubicon serious power. If you want to tackle deep mud, haul heavy loads, or run massive tires, go with the 45% reduction. If you want to maintain your top speed while boosting torque, the 30% reduction is your best bet.
Protect Your Drivetrain for the Long Haul
Extra power means extra strain—but these Honda Rubicon GDP Portals protect your drivetrain. The gear reduction is built into the hub, keeping your axles, differential, and transmission protected from excess wear. And since our Honda Rubicon portals maintain your stock suspension, your axles stay cooler and last longer.
Stronger, Smarter, Tougher
We don’t cut corners—our portals are built to last. Your choice of cast or 6061 billet aluminum housings, combined with Advanced steel backing plates, make them tough enough for anything the trail throws at you.
•Our housings are reinforced for gear retention and optimized for oil flow
•Advanced steel alloy backing plates are stronger than chromoly
•Enhance with Portal Blood—gear oil formulated for GDP Portals
•There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
•Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
•A sealed input gear and double-lipped output seal
•100% sealing coverage throughout so you can forget about oil leaks
•Double-angular contact output bearings to prevent premature wear
•Roller idler and drive bearings to maintain perfect gear meshing
4” Portal Gear Lift Includes:
•(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
•(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
•(4) Specialized steel alloy backing plates
•(2) Steel caliper mounting plates
•(2) Caliper mounting plate shims
•Extended brake lines
•All required hardware, including recessed castle nut socket
Honda Rubicon Max Tire Size Recommendations
Tire Size Required Suspension Setup with 4" Portals
28" Stock
30" SuperATV Footwells
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Patent # 11,299,042
Patent # 11,318,787
FEATURES
•Available with billet or cast aluminum housing
•Cool, quiet, precision-ground gears made from 9310 alloy billet steel
•1.5 in. diameter 4340 hardened steel drive shaft
•Housings use gaskets or O-rings that don’t let anything through
•Universal hub fits all major bolt patterns
•Gear reduction reduces stress on your drivetrain
•Lighter than the competition
Fitment
Honda Rubicon 500 : 2015-2019
Honda Rubicon 520 : 2020+
NOTE: Only compatible on machines with IRS (Independent Rear Suspension)
Wheel Requirements
•14” or larger wheel required
•Cannot exceed 5” backspacing
•Not compatible with dual beadlock wheels
•1” wheel spacers required on stock wheels
Details
- PGH6-3-15-451-B#AB
- PGH6-3-15-451-B#AB
- SuperATV
- Will ship approximately August 12, 2025
- New
Categories
Shipping Information
- Item Requires Shipping
- 135.0 lbs.
- W20.0000” x H3.0000” x L24.0000”
- Free Shipping
