ATS Co-Pilot Transmission Controller Dodge/Ram (2007.5-23) 6.7L Cummins (Tow Edition)

Co-Pilot TOW Edition Transmission Controller Kit for Dodge/Ram with 68RFE Transmission, Plug and Play Line Pressure Controller The 68-RFE is plagued by small clutch packs, weak hard parts, constant slip torque converter lock-up, and inadequate line pressure. Typically, these issues can result in the failure of the stock transmission with just a mild tune or heavy trailer. The Co-Pilot Tow Edition addresses these concerns.

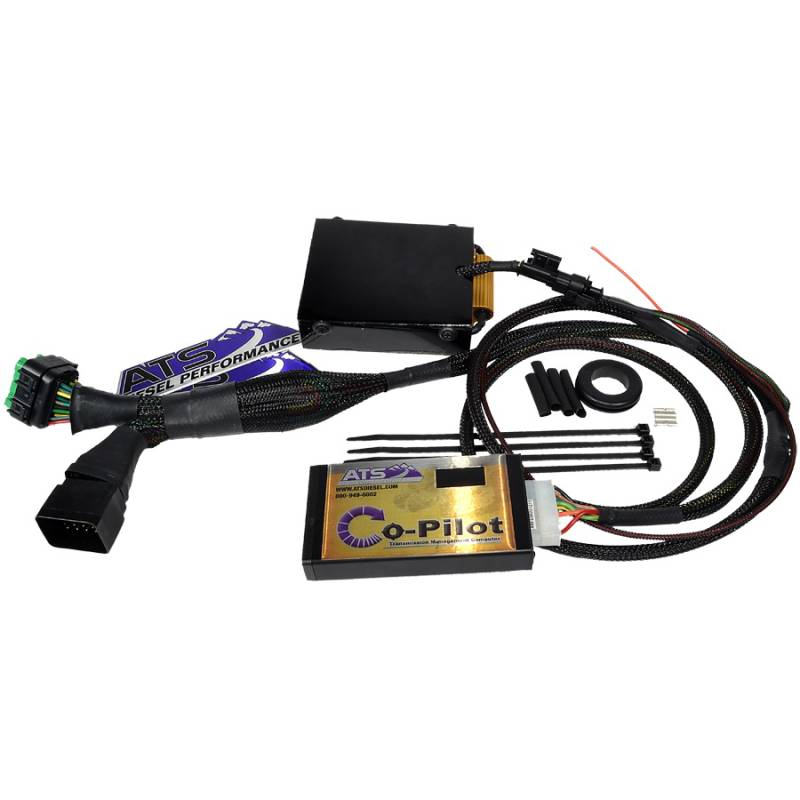

The Co-Pilot consists of a controller, harness and secondary electronics box. The harness plugs into the main transmission connector on the valve body. The harness is completely plug and play for easy installation. The controller mounts in the cab and allows the driver view critical transmission and engine inputs such as line pressure, commanded engine loan and actual engine load. To view the different sensor inputs all you do is depress the up or down arrows. These changes can be made on-the-fly or with the vehicle stopped. The secondary electronics box is mounted to the drivers side frame and requires no cutting or fitting.

The Co-Pilot controls line pressure, clutch timing and more aggressively applies the converter clutch under high torque situations. Line pressure is limited in a stock 68-RFE to 160 PSI. Unfortunately, this is not high enough to reliably prevent clutch slippage above 400hp. The Co-Pilot reads boost pressure and throttle position to quickly take control of line pressure when it is needed.
