Diamond T 10 Lug Dually Wheel Adapters for Chevy/GMC (1973-00) 2500 / 3500 (front & rear)
810GM73
Diamond T 10 Lug Dually Wheel Adapters for Chevy/GMC 2500 / 3500 (front & rear)

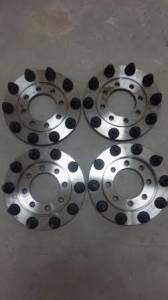

Diamond T Enterprises 8 lug to 10 lug hub-centric solid steel adapters milled to specifically fit 1973 to 2000 Chevy/GMC 3500 dually trucks. Mount 10 lug on 285.75mm semi wheels on your truck. The industries toughest adapters, made from solid steel - ideal for the abuse and loads required by your 1 ton dually. Adapters are 7/8" thick. Rear studs are designed to allow use of 2 aluminum wheels, 2 steel wheels, or 1 aluminum and 1 steel wheel.
Adapters are designed and manufactured in the USA!
8x6.5" hub diameter 115mm
Adapters have a current build time of 8-10 weeks
*Will not fit American Force Wheels
Diamond T Enterprises 8 lug to 10 lug hub-centric solid steel adapters milled to specifically fit 1973 to 2000 Chevy/GMC 3500 dually trucks. Mount 10 lug on 285.75mm semi wheels on your truck. The industries toughest adapters, made from solid steel - ideal for the abuse and loads required by your 1 ton dually. Adapters are 7/8" thick. Rear studs are designed to allow use of 2 aluminum wheels, 2 steel wheels, or 1 aluminum and 1 steel wheel.
Adapters are designed and manufactured in the USA!
8x6.5" hub diameter 115mm
Adapters have a current build time of 8-10 weeks
*Will not fit American Force Wheels
Availability: ETA on these adapters is currently 1-2 weeks.
Was:
$1,261.99
Sale:
$1,050.99
Save:
17%
Save:
$211.00
Description
Description
Step 1: Remove your factory wheel assembly.
-Loosen and remove factory lug nuts.
-Remove existing wheel and tire assembly
Step 2: Attach the adapter to the factory 8 lug hub assembly
-Please note front and rear adapters are different confirm before installation.
-Adapters must fit flat against the vehicle's hubs. Remove any rust and dirt from the hubs of brake rotors and drums. Remove any temporary retaining devices, like stud
clips, they may interfere with the flush fitment of your adapters against the brake hubs.
-Using the factory flat washer lug nuts, use an air gun or torque wrench to torque the factory flat washer lug nuts to 140lbs on to the adapter. -After tightening all 8
factory lug nuts to the adapter, inspect the installation.
-Make sure the adapter is sitting secure and flush with the hub of the truck.
Step 3: Install your 10 lug wheel
-Attach the 10 lug wheel to the adapter and slide it on to the large hub of the adapter.
-Using an air gun or torque wrench, torque the large 10 bolt lug nuts to the wheel.
-After tightening all 10 large lug nuts to the wheel, inspect the installation.
-Make sure the wheel is sitting secure and flush with the hub of the adapter.
Fitment
Year Make Model Engine: 1973 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1973 Chevy/GMC 3500 Gas
Year Make Model Engine: 1974 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1974 Chevy/GMC 3500 Gas
Year Make Model Engine: 1975 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1975 Chevy/GMC 3500 Gas
Year Make Model Engine: 1976 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1976 Chevy/GMC 3500 Gas
Year Make Model Engine: 1977 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1977 Chevy/GMC 3500 Gas
Year Make Model Engine: 1978 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1978 Chevy/GMC 3500 Gas
Year Make Model Engine: 1979 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1979 Chevy/GMC 3500 Gas
Year Make Model Engine: 1980 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1980 Chevy/GMC 3500 Gas
Year Make Model Engine: 1981 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1981 Chevy/GMC 3500 Gas
Year Make Model Engine: 1982 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1982 Chevy/GMC 3500 Gas
Year Make Model Engine: 1983 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1983 Chevy/GMC 3500 Gas
Year Make Model Engine: 1984 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1984 Chevy/GMC 3500 Gas
Year Make Model Engine: 1985 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1985 Chevy/GMC 3500 Gas
Year Make Model Engine: 1986 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1986 Chevy/GMC 3500 Gas
Year Make Model Engine: 1987 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1987 Chevy/GMC 3500 Gas
Year Make Model Engine: 1988 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1988 Chevy/GMC 3500 Gas
Year Make Model Engine: 1989 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1989 Chevy/GMC 3500 Gas
Year Make Model Engine: 1990 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1990 Chevy/GMC 3500 Gas
Year Make Model Engine: 1991 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1991 Chevy/GMC 3500 Gas
Year Make Model Engine: 1992 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1992 Chevy/GMC 3500 Gas
Year Make Model Engine: 1993 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1993 Chevy/GMC 3500 Gas
Year Make Model Engine: 1994 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1994 Chevy/GMC 3500 Gas
Year Make Model Engine: 1995 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1995 Chevy/GMC 3500 Gas
Year Make Model Engine: 1996 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1996 Chevy/GMC 3500 Gas
Year Make Model Engine: 1997 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1997 Chevy/GMC 3500 Gas
Year Make Model Engine: 1998 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1998 Chevy/GMC 3500 Gas
Year Make Model Engine: 1999 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1999 Chevy/GMC 3500 Gas
Year Make Model Engine: 2000 Chevy/GMC 3500 Diesel
Year Make Model Engine: 2000 Chevy/GMC 3500 Gas
Availability Remarks: ETA on these adapters is currently 1-2 weeks.
Step 1: Remove your factory wheel assembly.
-Loosen and remove factory lug nuts.
-Remove existing wheel and tire assembly
Step 2: Attach the adapter to the factory 8 lug hub assembly
-Please note front and rear adapters are different confirm before installation.
-Adapters must fit flat against the vehicle's hubs. Remove any rust and dirt from the hubs of brake rotors and drums. Remove any temporary retaining devices, like stud
clips, they may interfere with the flush fitment of your adapters against the brake hubs.
-Using the factory flat washer lug nuts, use an air gun or torque wrench to torque the factory flat washer lug nuts to 140lbs on to the adapter. -After tightening all 8
factory lug nuts to the adapter, inspect the installation.
-Make sure the adapter is sitting secure and flush with the hub of the truck.
Step 3: Install your 10 lug wheel
-Attach the 10 lug wheel to the adapter and slide it on to the large hub of the adapter.
-Using an air gun or torque wrench, torque the large 10 bolt lug nuts to the wheel.
-After tightening all 10 large lug nuts to the wheel, inspect the installation.
-Make sure the wheel is sitting secure and flush with the hub of the adapter.
Fitment
Year Make Model Engine: 1973 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1973 Chevy/GMC 3500 Gas
Year Make Model Engine: 1974 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1974 Chevy/GMC 3500 Gas
Year Make Model Engine: 1975 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1975 Chevy/GMC 3500 Gas
Year Make Model Engine: 1976 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1976 Chevy/GMC 3500 Gas
Year Make Model Engine: 1977 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1977 Chevy/GMC 3500 Gas
Year Make Model Engine: 1978 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1978 Chevy/GMC 3500 Gas
Year Make Model Engine: 1979 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1979 Chevy/GMC 3500 Gas
Year Make Model Engine: 1980 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1980 Chevy/GMC 3500 Gas
Year Make Model Engine: 1981 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1981 Chevy/GMC 3500 Gas
Year Make Model Engine: 1982 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1982 Chevy/GMC 3500 Gas
Year Make Model Engine: 1983 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1983 Chevy/GMC 3500 Gas
Year Make Model Engine: 1984 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1984 Chevy/GMC 3500 Gas
Year Make Model Engine: 1985 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1985 Chevy/GMC 3500 Gas
Year Make Model Engine: 1986 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1986 Chevy/GMC 3500 Gas
Year Make Model Engine: 1987 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1987 Chevy/GMC 3500 Gas
Year Make Model Engine: 1988 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1988 Chevy/GMC 3500 Gas
Year Make Model Engine: 1989 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1989 Chevy/GMC 3500 Gas
Year Make Model Engine: 1990 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1990 Chevy/GMC 3500 Gas
Year Make Model Engine: 1991 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1991 Chevy/GMC 3500 Gas
Year Make Model Engine: 1992 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1992 Chevy/GMC 3500 Gas
Year Make Model Engine: 1993 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1993 Chevy/GMC 3500 Gas
Year Make Model Engine: 1994 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1994 Chevy/GMC 3500 Gas
Year Make Model Engine: 1995 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1995 Chevy/GMC 3500 Gas
Year Make Model Engine: 1996 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1996 Chevy/GMC 3500 Gas
Year Make Model Engine: 1997 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1997 Chevy/GMC 3500 Gas
Year Make Model Engine: 1998 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1998 Chevy/GMC 3500 Gas
Year Make Model Engine: 1999 Chevy/GMC 3500 Diesel
Year Make Model Engine: 1999 Chevy/GMC 3500 Gas
Year Make Model Engine: 2000 Chevy/GMC 3500 Diesel
Year Make Model Engine: 2000 Chevy/GMC 3500 Gas
Availability Remarks: ETA on these adapters is currently 1-2 weeks.
Details
- 810GM73
- 810GM73
- 708744248008
- Diamond T Enterprises
- ETA on these adapters is currently 1-2 weeks.
- New
Categories
Shipping Information
- Item Requires Shipping
- 126.0 lbs.
- W14.0000” x H7.0000” x L28.0000”
- Free Shipping
