Warn Zeon XD 10-S - 110010
110010
Warn Zeon XD 10-S - 110010

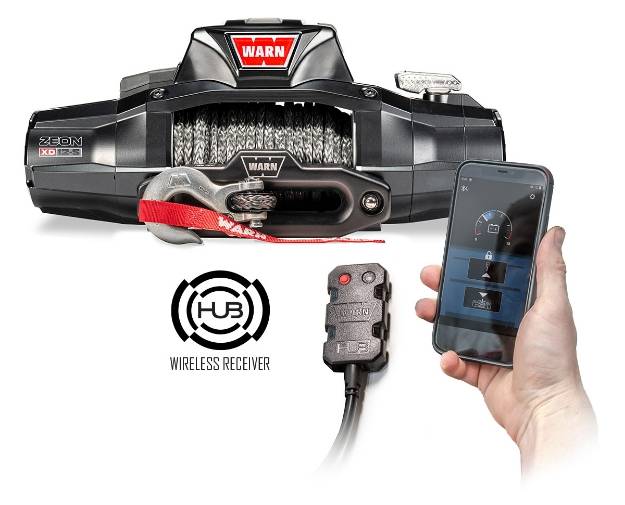

The ZEON XD 10-S winch has a pull capacity of 10,000 pounds. It comes with 100’ feet of 3/8” Spydura synthetic rope and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app.
Redesigned and retooled from the ground up for ultimate performance and durability— ZEON XD is there for the times it just has to work, in all conditions. And with the industry’s best warranty, fastest line-speed, and most robust waterproof sealing, ZEON XD is the ultra-reliable recovery tool you can count on when you need it most.
•Engineered, tested, and assembled in Clackamas, Oregon, USA.
•New high-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min— the fastest in its class.
•Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.
•Includes a durable waterproof corded remote with 12’ lead, and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app
•Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.
•Full metal armor protects components from impact and damage.
•WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
•Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
•Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
•Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
The ZEON XD 10-S winch has a pull capacity of 10,000 pounds. It comes with 100’ feet of 3/8” Spydura synthetic rope and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app.
Redesigned and retooled from the ground up for ultimate performance and durability— ZEON XD is there for the times it just has to work, in all conditions. And with the industry’s best warranty, fastest line-speed, and most robust waterproof sealing, ZEON XD is the ultra-reliable recovery tool you can count on when you need it most.
•Engineered, tested, and assembled in Clackamas, Oregon, USA.
•New high-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min— the fastest in its class.
•Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.
•Includes a durable waterproof corded remote with 12’ lead, and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app
•Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.
•Full metal armor protects components from impact and damage.
•WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
•Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
•Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
•Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
Availability: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Was:
$2,330.99
Sale:
$1,649.99
Save:
29%
Save:
$681.00
Description
Specifications:
•Rated Line Pull (Single Line) 10,000lbs (4536 kg)
•No Load Line Speed 40 ft/min (12.19m/min)
•Rated Load Line Speed 5 ft/min (1.52m/min)
•No Load Motor Current 64 Amps
•Rated load motor current 458 Amps
•Motor 12V DC, series wound (exclusive WARN high-performance design)
•Electrical controls Contactor
•Wiring Automotive OE-grade buss bars
•Corrosion Resistance 408 hour salt spray
•Ingress Protection IP68 submersion and IP69K spray testing (entire unit)
•Remote Control Corded remote with 12’ (3.7m) lead, plus HUB Wireless Receiver

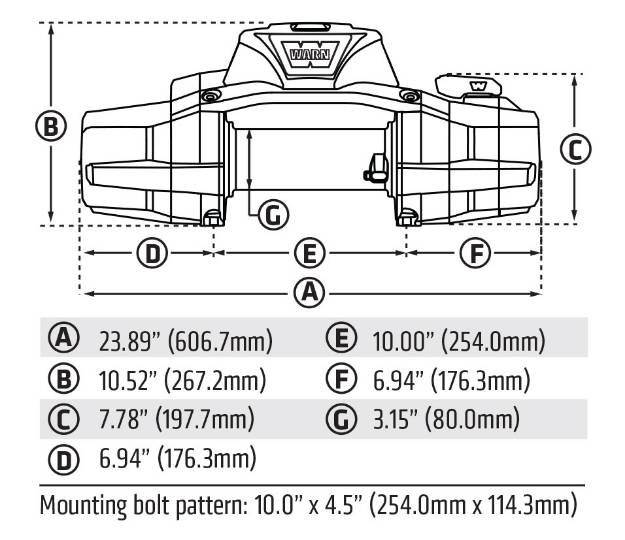

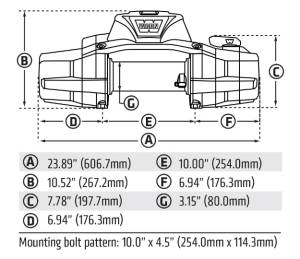

•Drum diameter/Length 3.15”/9.0” (80mm/229mm)
•Geartrain 3-stage planetary
•Gear Ratio 141:1
•Clutch (freespooling) Rotating ring gear with stainless steel clutch lever. Manual lever operation.
•Brake Automatic, six segment mechanical cone
•Rope 3/8” x 100’ (9.52mm x 30m) Spydura synthetic
•Fairlead Black anodized, forged aluminum hawse
•Recommended Battery 650 CCA minimum for winching
•Battery leads 2 gauge, 72” (1.83m)
•Zeon Finish Satin-black powder coat
•Final point of assembly Warn facility in Clackamas, Oregon, USA
•Warranty Limited lifetime mechanical, 7 years electrical
•Weight 85lbs (in box)
•Rated Line Pull (Single Line) 10,000lbs (4536 kg)
•No Load Line Speed 40 ft/min (12.19m/min)
•Rated Load Line Speed 5 ft/min (1.52m/min)
•No Load Motor Current 64 Amps
•Rated load motor current 458 Amps
•Motor 12V DC, series wound (exclusive WARN high-performance design)
•Electrical controls Contactor
•Wiring Automotive OE-grade buss bars
•Corrosion Resistance 408 hour salt spray
•Ingress Protection IP68 submersion and IP69K spray testing (entire unit)
•Remote Control Corded remote with 12’ (3.7m) lead, plus HUB Wireless Receiver
•Drum diameter/Length 3.15”/9.0” (80mm/229mm)
•Geartrain 3-stage planetary
•Gear Ratio 141:1
•Clutch (freespooling) Rotating ring gear with stainless steel clutch lever. Manual lever operation.
•Brake Automatic, six segment mechanical cone
•Rope 3/8” x 100’ (9.52mm x 30m) Spydura synthetic
•Fairlead Black anodized, forged aluminum hawse
•Recommended Battery 650 CCA minimum for winching
•Battery leads 2 gauge, 72” (1.83m)
•Zeon Finish Satin-black powder coat
•Final point of assembly Warn facility in Clackamas, Oregon, USA
•Warranty Limited lifetime mechanical, 7 years electrical
•Weight 85lbs (in box)
Details
- 110010
- 110010
- Warn
- This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
- New
Shipping Information
- Item Requires Shipping
- 27.0 lbs.
- W6.2500” x H17.5000” x L12.5000”
- Free Shipping
