SuperATV 8" Portal Gear Lift for Can-Am (2019-24) Outlander (Billet Housing, 60% Gear Reduction)

Tough Terrain will be Easy to Conquer
When the mud gets deep and the rocks get gnarly, your rig needs a little extra muscle. That’s where a gear reduction comes in. By lowering your gearing, you get back the low-end power big tires typically take away, so your machine can dig in and keep moving. Choose between a 45% or 60% reduction and let your Can-Am Outlander reach its full potential.

Protects Your Drivetrain
With the gear reduction built into the wheel hub, our GDP portals take the load off the rest of your drivetrain. They take on the tough work, protecting parts like your axles, differential, driveshaft, and transmission from straining to move large tires.

GDP Portals are Unmatched

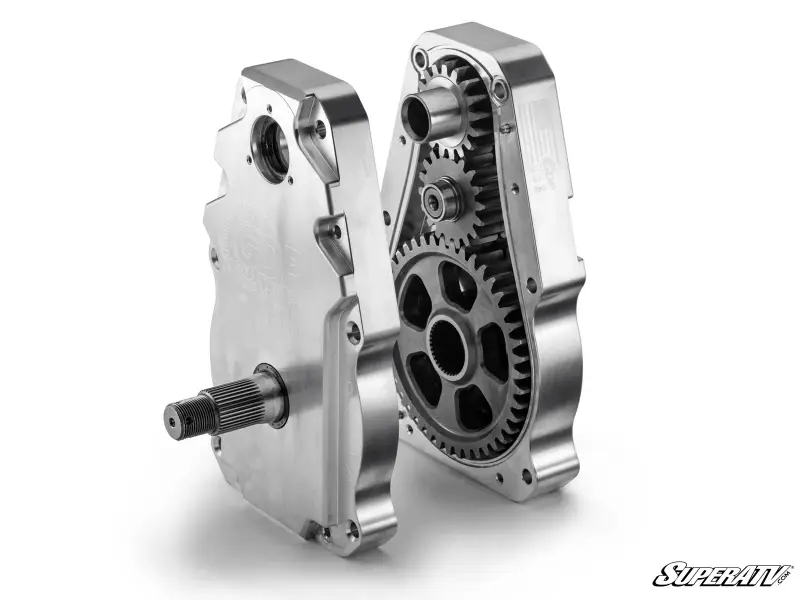

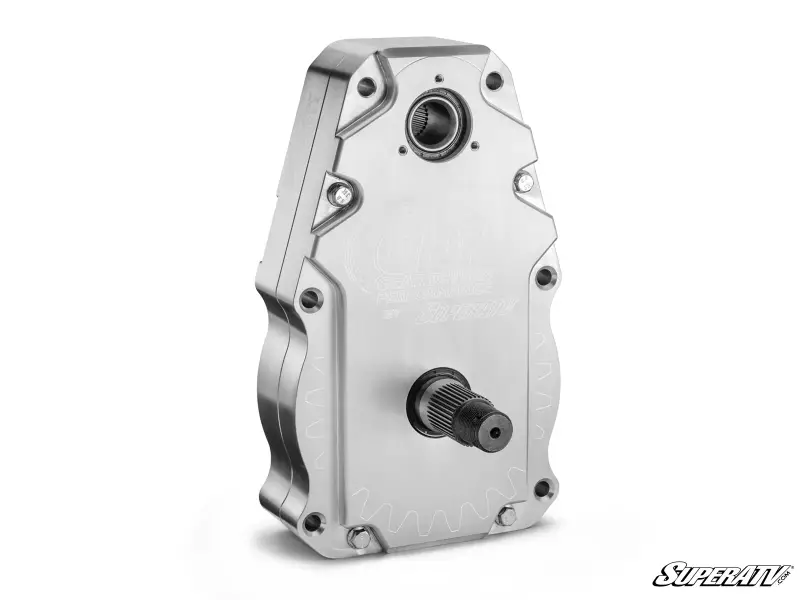

Our GDP 8” Portals are built to handle any abuse you put them through. You can choose between cast or billet aluminum. They’re both ultra-strong and ready to take a beating. Plus, the strong steel alloy plates give them extra armor.
•Our housings are reinforced for gear retention and optimized for oil flow
•Advanced steel alloy backing plates are stronger than chromoly
•Enhance with Portal Blood - gear oil formulated for GDP Portals
•There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:
•Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
•A sealed input gear and double-lipped output seal
•100% sealing coverage throughout so you can forget about oil leaks
•Double-angular contact output bearings to prevent premature wear
•Roller idler and drive bearings to maintain perfect gear meshing

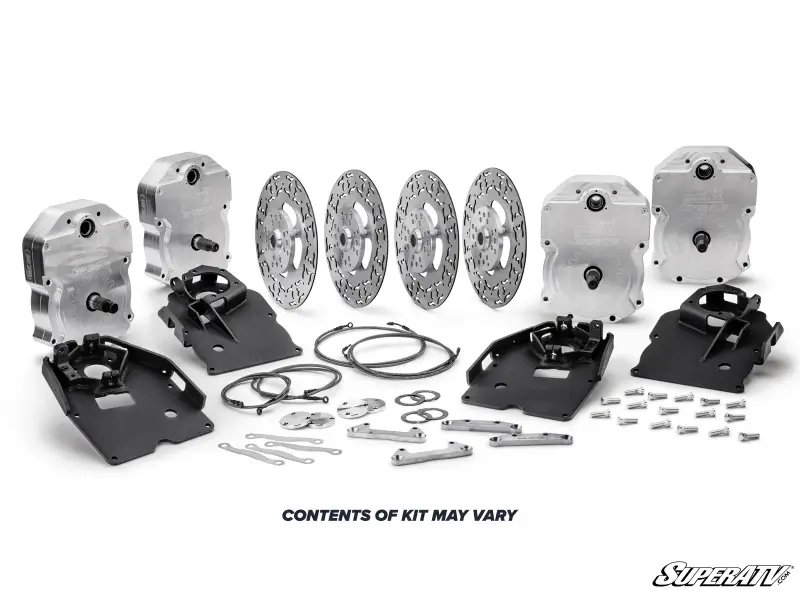

Can-Am Outlander 8” Portal Gear Lift Includes:
•(4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
•(4) Universal hubs and stainless steel slotted rotors with lugs
•(4) Specialized steel alloy backing plates
•(4) Steel caliper mounting brackets
•(16) Shims
•(12) Rear A-arm bushings
•(6) Steel sleeves
•Extended brake lines
•All required hardware, including recessed castle nut socket

Can-Am Outlander Max Tire Size
Max Tire Size Required Suspension
32" Stock suspension

Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Patent # 8,985,264, 11,015,681, 11,299,042, 11,554,662, 12,005,776

Features
•Available with billet or cast aluminum housings

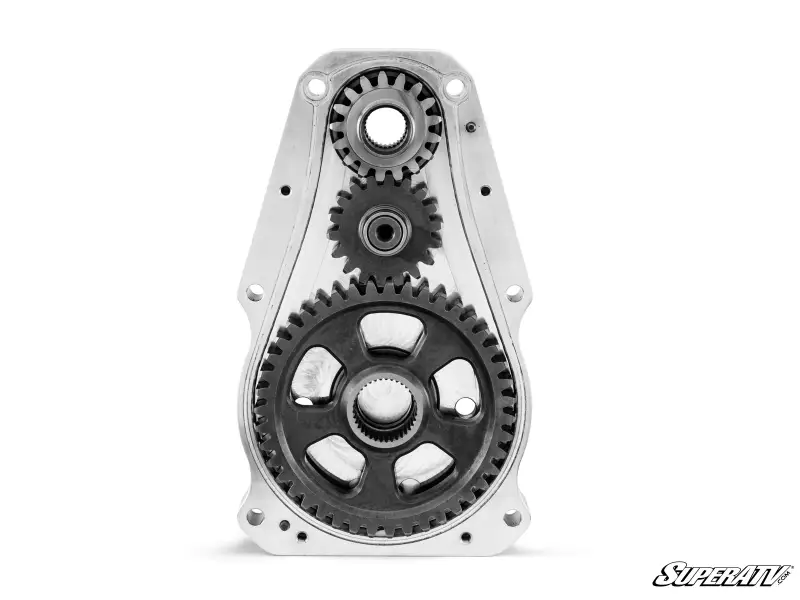

•Cool, quiet, precision-ground gears made from 9310 alloy billet steel
•1.5 in. forward and rear offset
•1.5 in. diameter 4340 hardened steel drive shaft
•Housings use gaskets or O-rings that don’t let anything through
•Universal hub fits all major bolt patterns
•Gear reduction reduces stress on your drivetrain

Fitment
Can-Am Outlander 650 : 2019-2024
Can-Am Outlander 650 DPS : 2019-2024
Can-Am Outlander 650 Mossy Oak : 2019-2024
Can-Am Outlander 650 XMR : 2019-2024
Can-Am Outlander 650 XT : 2019-2024
Can-Am Outlander 850 : 2019-2024
Can-Am Outlander 850 DPS : 2019+
Can-Am Outlander 850 Mossy Oak : 2019-2024
Can-Am Outlander 850 X MR : 2025+
Can-Am Outlander 850 XMR : 2019-2024
Can-Am Outlander 850 XT : 2019+
Can-Am Outlander 850 XTP : 2019-2024
Can-Am Outlander 1000R : 2019+
Can-Am Outlander 1000R DPS : 2019+
Can-Am Outlander 1000R X MR : 2025+
Can-Am Outlander 1000R XMR : 2019-2024
Can-Am Outlander 1000R XT : 2019+
Can-Am Outlander 1000R XTP : 2019-2024
Can-Am Outlander 1000R XT-P : 2025+
Can-Am Outlander 1000R XXC : 2019-2024
Can-Am Outlander Max 570 : 2019-2024
Can-Am Outlander Max 650 : 2019-2024
Can-Am Outlander Max 650 DPS : 2019-2024
Can-Am Outlander Max 650 XMR : 2019-2024
Can-Am Outlander Max 650 XT : 2019-2024
Can-Am Outlander Max 650 XT-P : 2019-2018
Can-Am Outlander Max 850 : 2019-2024
Can-Am Outlander Max 850 DPS : 2019+
Can-Am Outlander Max 850 XT : 2019+
Can-Am Outlander Max 850 XTP : 2019-2024
Can-Am Outlander Max Limited 1000R : 2025+
Can-Am Outlander Max 1000R : 2019-2024
Can-Am Outlander Max 1000R DPS : 2019+
Can-Am Outlander Max 1000R XMR : 2019-2024
Can-Am Outlander Max 1000R XT : 2019+
Can-Am Outlander Max 1000R XTP : 2019-2024
Can-Am Outlander Max 1000R XT-P : 2025+
Can-Am Outlander Max 1000R XXC : 2019-2024

Wheel Requirements:
•22” or larger wheel required
•Wheels cannot exceed 4" backspacing
