Flight Diesel FICM -Fuel Injection Control Module for Ford (2003-10) 6.0L Power Stroke
R1845117
Flight Diesel FICM -Fuel Injection Control Module for Ford 6.0L Power Stroke

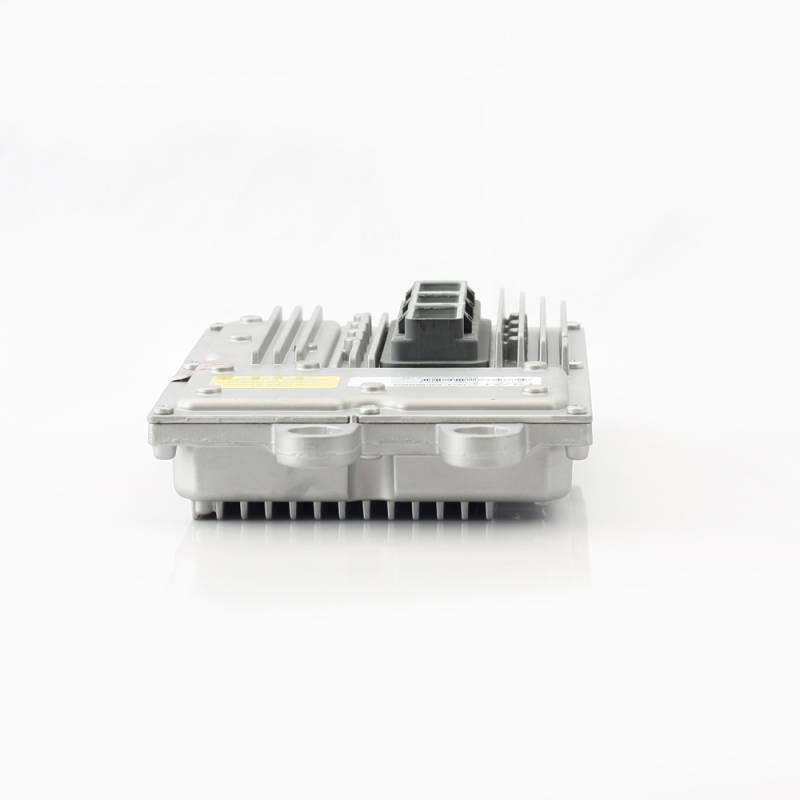

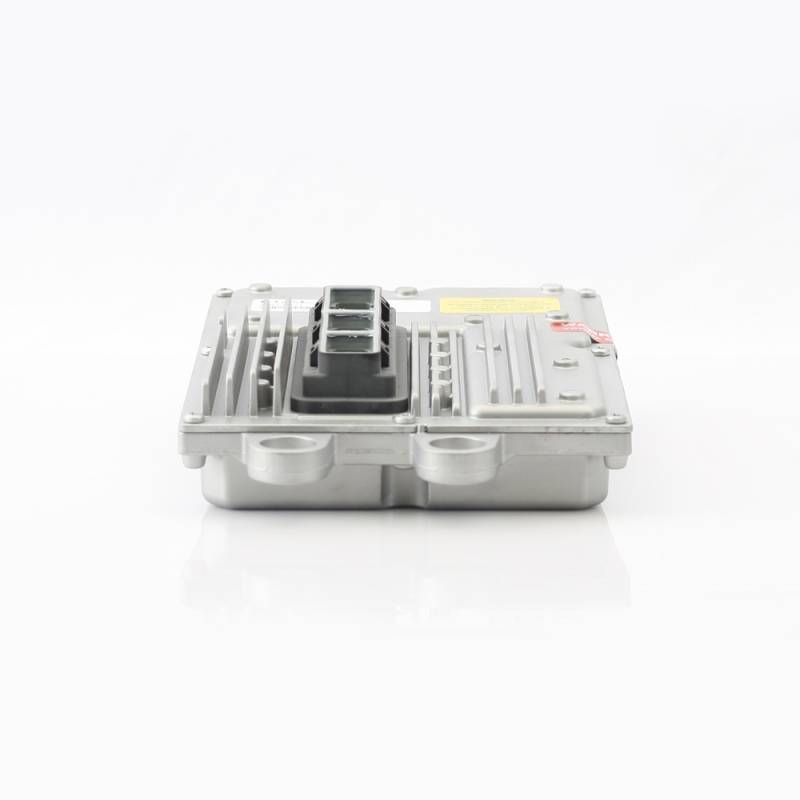

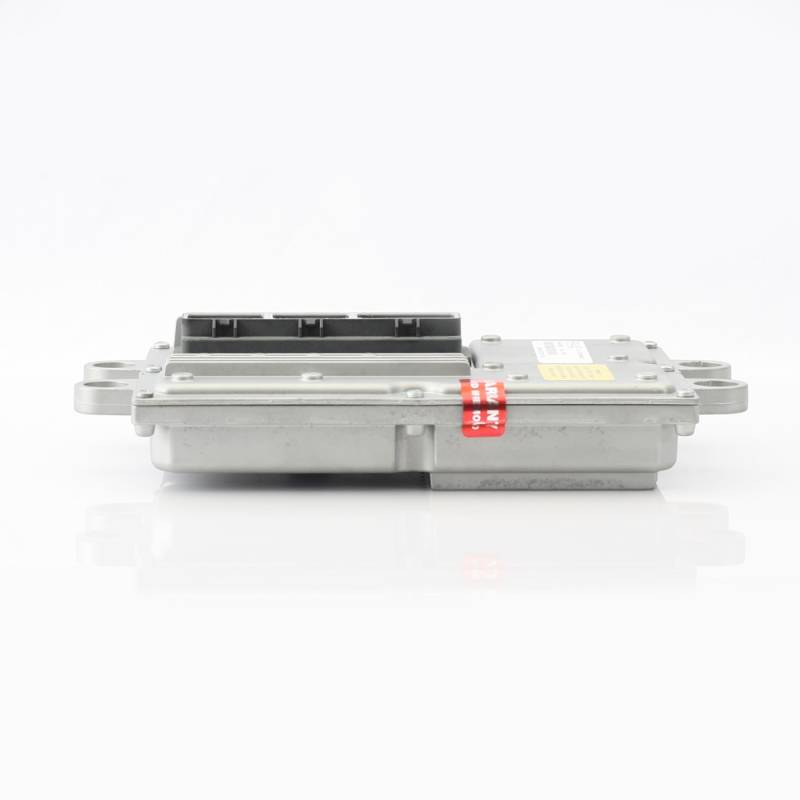

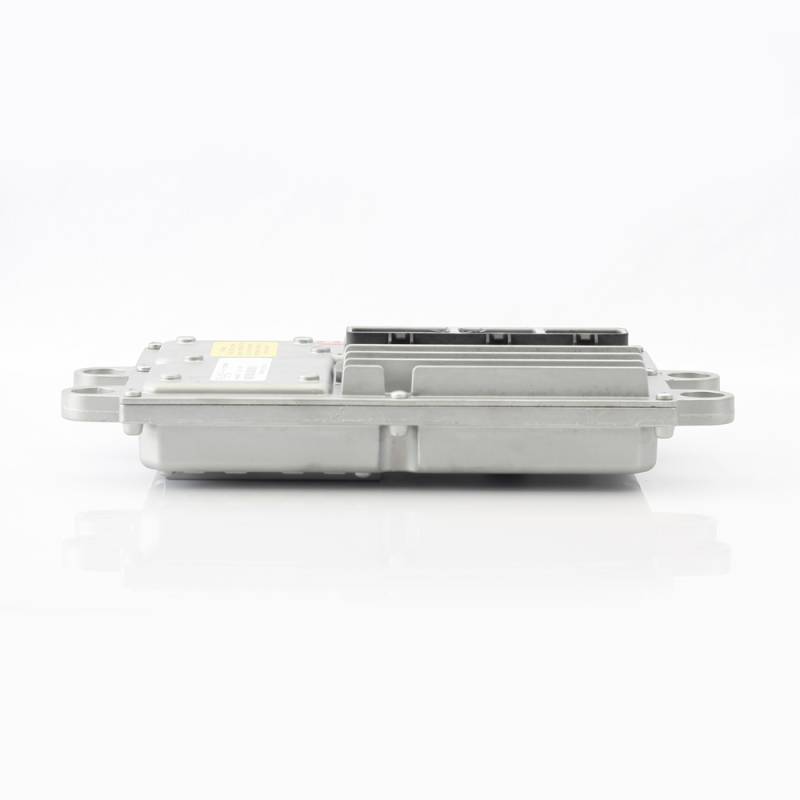

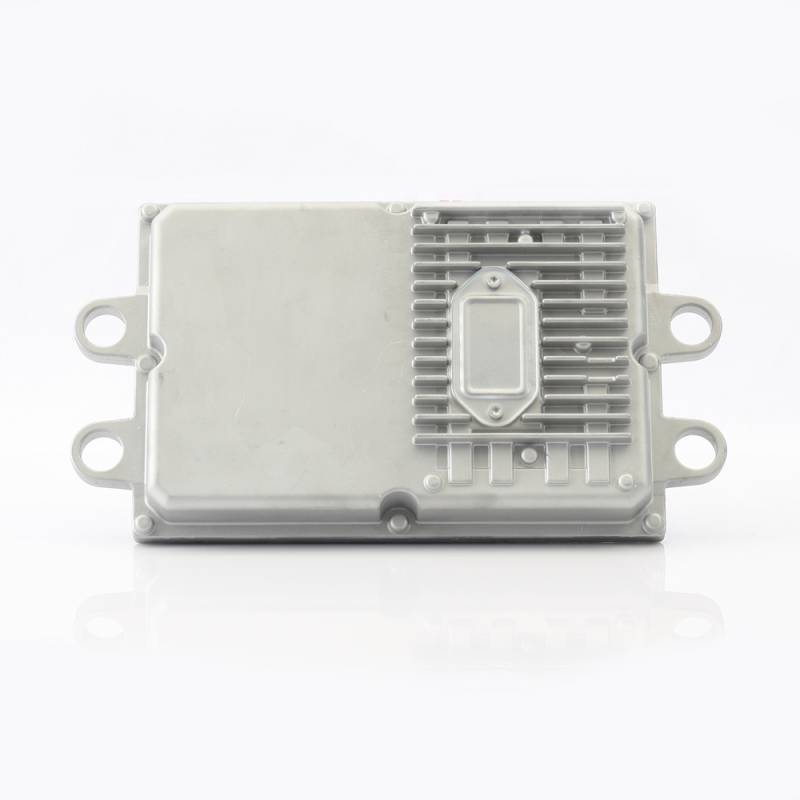

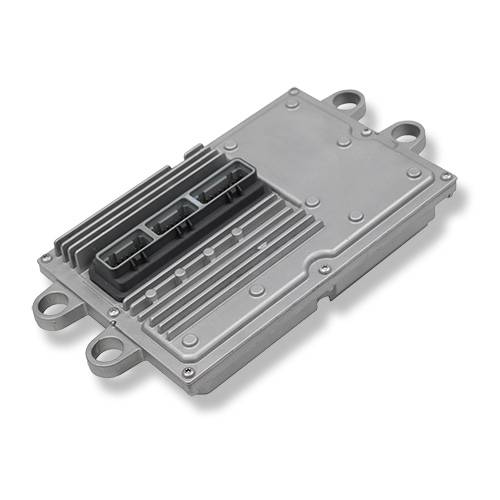

This is a remanufactured Ford 6.0L PowerStroke Fuel Injection Control Module (FICM).
•The remanufacturing process of these modules address the most common failures in the OEM design.
•The units have been modified to fit both older and newer applications and come pre-programmed, so you can plug it into your vehicle and get back on the road.
•The components that cause these failures are replaced in every module to ensure you get a quality, reliable product.
•Each module goes through full functional testing and tri-temperature testing, using actual injector simulation.
This is a remanufactured Ford 6.0L PowerStroke Fuel Injection Control Module (FICM).
•The remanufacturing process of these modules address the most common failures in the OEM design.
•The units have been modified to fit both older and newer applications and come pre-programmed, so you can plug it into your vehicle and get back on the road.
•The components that cause these failures are replaced in every module to ensure you get a quality, reliable product.
•Each module goes through full functional testing and tri-temperature testing, using actual injector simulation.
Was:
$411.99
Sale:
$357.99
Save:
13%
Save:
$54.00
Description
•100% replacement of failure prone components
•Tri-temperature tested
•Pre-Programed - Ready for Install
Fitment:
2003-2007 Ford 6.0L Power Stroke F-Series
2003-2005 Ford 6.0L Excursion
2004-2010 Ford 6.0L E-Series
2003-2010 Ford F650, F750 with VT365
Reference numbers: 4C3Z12B599ABRM, 1845117C2, 1845117C6, 3C3Z12B599AARM, 4C3Z12B599AARM, 4C3Z12B599ABRM
COMMON FICM FAULT CODES
FICM has detected an open injector circuit. Defective stator, harness, FICM.
P0264: Cylinder 2 Injector Circuit Low
P0267: Cylinder 3 Injector Circuit Low
P0270: Cylinder 4 Injector Circuit Low
P0273: Cylinder 5 Injector Circuit Low
P0276: Cylinder 6 Injector Circuit Low
P0279: Cylinder 7 Injector Circuit Low
P0282: Cylinder 8 Injector Circuit Low
FICM has detected a short in an injector circuit. Injector circuit short to ground. Defective stator, harness, FICM.
P0262: Cylinder 1 injector circuit high
P0265: Cylinder 2 injector circuit high
P0268: Cylinder 3 injector circuit high
P0271: Cylinder 4 injector circuit high
P0274: Cylinder 5 injector circuit high
P0277: Cylinder 6 injector circuit high
P0280: Cylinder 7 injector circuit high
P0283: Cylinder 8 injector circuit high
Maximum or minimum pulse width exceeded. Cylinder weak due to mechanical problem or injectors not contributing correct volume of fuel.
P0263: Cylinder 1 contribution balance
P0266: Cylinder 2 contribution balance
P0269: Cylinder 3 contribution balance
P0272: Cylinder 4 contribution balance
P0275: Cylinder 5 contribution balance
P0278: Cylinder 6 contribution balance
P0281: Cylinder 7 contribution balance
P0284: Cylinder 8 contribution balance
Miscellaneous faults.
P0611: FICM performance - FICM memory fault will set if a RAM or ROM fault exists. Loss of FICM power or other internal FICM failure
P1378: FICM system voltage low - FICM detects power below 7 volts. Low batteries, loose connection/resistance in circuit, defective relay.
P1379: FICM system voltage high - FICM detects power exceeding 16 volts. Charging system fault.
P0148: Fuel delivery error - Engine RPM exceeded requested RPM.
P2552: FICM circuit - Throttle/fuel inhibit circuit.
U0105: Lost communication with FICM - Check Can2H/Can2L circuits. FICM or PCM issue.
U0306: Software compatibility issues with FICM - Reprogramming of FICM and PCM may be necessary.
Before replacing any damaged component you should always first determine what caused the component to fail and repair that before continuing.
Static electricity can damage electronic components. By following a few safety procedures you can reduce the risk of damage from static electricity.
Avoid contact with the electrical connectors
By frequently touching a known good ground during installation you can discharge any static electricity that you may have developed.
Core:
*CORE MUST BE IN "OFF ENGINE CONDITION" FOR FULL CREDIT*
The purchase of this part includes a separate core charge. While we would appreciate getting the return back as soon as possible, you have 12 months to return the core for a refund. You will no longer be eligible to return the core, or receive a refund, after 1 year from your original purchase. Please see our core policy or contact us with any questions.
Warranty:
•1 Year
•Unlimited Mileage
•Tri-temperature tested
•Pre-Programed - Ready for Install
Fitment:
2003-2007 Ford 6.0L Power Stroke F-Series
2003-2005 Ford 6.0L Excursion
2004-2010 Ford 6.0L E-Series
2003-2010 Ford F650, F750 with VT365
Reference numbers: 4C3Z12B599ABRM, 1845117C2, 1845117C6, 3C3Z12B599AARM, 4C3Z12B599AARM, 4C3Z12B599ABRM
COMMON FICM FAULT CODES
FICM has detected an open injector circuit. Defective stator, harness, FICM.
P0264: Cylinder 2 Injector Circuit Low
P0267: Cylinder 3 Injector Circuit Low
P0270: Cylinder 4 Injector Circuit Low
P0273: Cylinder 5 Injector Circuit Low
P0276: Cylinder 6 Injector Circuit Low
P0279: Cylinder 7 Injector Circuit Low
P0282: Cylinder 8 Injector Circuit Low
FICM has detected a short in an injector circuit. Injector circuit short to ground. Defective stator, harness, FICM.
P0262: Cylinder 1 injector circuit high
P0265: Cylinder 2 injector circuit high
P0268: Cylinder 3 injector circuit high
P0271: Cylinder 4 injector circuit high
P0274: Cylinder 5 injector circuit high
P0277: Cylinder 6 injector circuit high
P0280: Cylinder 7 injector circuit high
P0283: Cylinder 8 injector circuit high
Maximum or minimum pulse width exceeded. Cylinder weak due to mechanical problem or injectors not contributing correct volume of fuel.
P0263: Cylinder 1 contribution balance
P0266: Cylinder 2 contribution balance
P0269: Cylinder 3 contribution balance
P0272: Cylinder 4 contribution balance
P0275: Cylinder 5 contribution balance
P0278: Cylinder 6 contribution balance
P0281: Cylinder 7 contribution balance
P0284: Cylinder 8 contribution balance
Miscellaneous faults.
P0611: FICM performance - FICM memory fault will set if a RAM or ROM fault exists. Loss of FICM power or other internal FICM failure
P1378: FICM system voltage low - FICM detects power below 7 volts. Low batteries, loose connection/resistance in circuit, defective relay.
P1379: FICM system voltage high - FICM detects power exceeding 16 volts. Charging system fault.
P0148: Fuel delivery error - Engine RPM exceeded requested RPM.
P2552: FICM circuit - Throttle/fuel inhibit circuit.
U0105: Lost communication with FICM - Check Can2H/Can2L circuits. FICM or PCM issue.
U0306: Software compatibility issues with FICM - Reprogramming of FICM and PCM may be necessary.
Before replacing any damaged component you should always first determine what caused the component to fail and repair that before continuing.
Static electricity can damage electronic components. By following a few safety procedures you can reduce the risk of damage from static electricity.
Avoid contact with the electrical connectors
By frequently touching a known good ground during installation you can discharge any static electricity that you may have developed.
Core:
*CORE MUST BE IN "OFF ENGINE CONDITION" FOR FULL CREDIT*
The purchase of this part includes a separate core charge. While we would appreciate getting the return back as soon as possible, you have 12 months to return the core for a refund. You will no longer be eligible to return the core, or receive a refund, after 1 year from your original purchase. Please see our core policy or contact us with any questions.
Warranty:
•1 Year
•Unlimited Mileage
Details
- R1845117
- R1845117
- Flight Diesel
- New
Shipping Information
- Item Requires Shipping
- 14.0 lbs.
- W13.0000” x H6.0000” x L12.0000”
- Free Shipping
