Tekonsha P3 trailer brake controller, (1, 2, 3 or 4 axle trailers)

90195
LCD display features a distinctive look with multiple color and contrast options and includes a highly advanced, easy-to-understand roadside diagnostics display. Proportional braking with boost feature for fast and smooth stopping.

Features:
-Applies power to the trailer brakes in proportion to vehicle's deceleration when brakes are applied
-No level adjustment necessary - it adjusts itself to varying terrain as you drive
-Works proportionally in reverse - great for backing into tough spots
-Designed for use with electric over hydraulic trailer brake systems
-Works equally well on standard electric trailer brakes
-Digital display depicts voltage delivery to trailer during braking
-Continual diagnostics check for proper connection, shorted magnet condition and much more
-Easy to read and understand diagnostic display
-"Boost" feature gives users the ability to apply more initial trailer braking power when towing heavier trailers
-Power-saving mode reduces drain on battery when vehicle is not in use
-Unique pocket mount allows for flexible mounting options
-Quick and easy disconnect feature allows user to remove and store the control when not in use

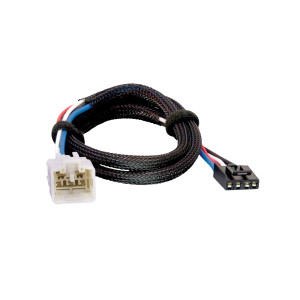

-The P3, along with the Tekonsha Prodigy and Primus, offers a replacement wiring harness (sold separately) to move the controller easily from one vehicle to another
-Rotary style manual brake adjustment lever is easily accessible under the controller unit
-Customize the LCD display by choosing language, color and contrast options
-Language options: English, French, and Spanish
-Color options: blue, light blue, cyan, green, light green, orange, magenta, pink, and white
-Limited lifetime warranty

Specs:
-Dimensions: 3-5/8" (W) x 4-5/8" (L) x 1-3/8" (H)
-Boost levels increase power up 0%, 13% and 25%
-180 degree vertical plane operating range
-Can be mounted between -90 degree (straight down) and 90 degree (straight up)
-Made for up to four-axle trailer brake systems (8 Brakes)
-Diagnostic Troubleshooting displays: Battery Voltage, Stop Lamp Voltage, Output Voltage, Output Current
-Diagnostic Warning Signs: Open Ground, Overload, Output Shorted, Power Loss, and No Trailer Connected


Required: For vehicles without brake control adapters
20 amp. Circuit Breaker (9506P) for 2-4 Brake applications
30 amp. Circuit Breaker (38630) for 6-8 Brake applications
Was: $175.00
Sale: $144.15
Save: 18%
Save: $30.85
Qty:
Free Shipping!

Description

The P3 controller is designed for use with electric and/or electric over hydraulic trailer braking systems. A simple switch on the unit allows the user to toggle back and forth between the two systems. The Tekonsha P3's LCD display features a distinctive look with multiple color and contrast options and includes a highly advanced, easy-to-understand roadside diagnostics display. The P3 advanced diagnostics not only notify you of potential problems, it can tell you where to begin trouble shooting.

Details

  • 90195
  • 90195
  • 783192015686
  • Tekonsha
  • New

Shipping Information

  • Item Requires Shipping
  • 1.0 lbs.
  • W8.0000” x H4.0000” x L10.0000”
  • Free Shipping!
