Nathan AirChime P5 540, Tain Horn Kit
HK-P5-540
Mellow, deep, and insanely loud. These are just three ways to describe this kit. In fact this train horn kit provides the most popular freight train horn of the 60s, the AirChime P5, paired with a reliable, fast-filling 5 gallon air system. The construction of these horns includes rubber gaskets to help prevent wear and tear on the diaphragm through use. These horns will provide years and years of service with the least servicing of any railway horns. If you want loud and like the sound of deep horns, this is the kit for you!

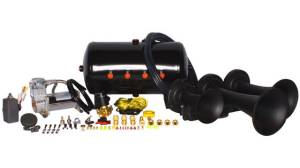

Kit Includes
Nathan AirChime P5
Viair 400C Compressor
HornAir 5 Gallon 8 Port Air Tank
Viair 110/150 PSI Pressure Switch
Replacement Air Filters
20' of 1/2in D.O.T. Approved Airline
12 Volt Air Valve
Detailed Instructions
The standard finish on this horn is unpolished die-cast aluminum. The horns are easily painted, or powder coated but they are not supplied this way.
Kit Includes
Nathan AirChime P5
Viair 400C Compressor
HornAir 5 Gallon 8 Port Air Tank
Viair 110/150 PSI Pressure Switch
Replacement Air Filters
20' of 1/2in D.O.T. Approved Airline
12 Volt Air Valve
Detailed Instructions
The standard finish on this horn is unpolished die-cast aluminum. The horns are easily painted, or powder coated but they are not supplied this way.
Pricing:
$3,767.99
Description
* Railroad-Use Train Horn!
* Heavy Duty 400C Air Compressor
* Extra Large Five Gallon Air Tank
* 1 Year Manufacturer's Warranty
* Max Honk Time: 5 Seconds
Nathan Airchime P5
Length: 19.5 in (495.3 mm)
Width: 19.75 in (501.65 mm)
Height: 10 in (254 mm)
Port: 1/2in NPT
5 Gallon 8 Port Tank
Length: 20.5 in (520.7 mm)
Diameter: 9.5 in (241.3 mm)
Height: 11.5 in (292.1 mm)
Weight: 20 lbs (9.07 Kg)
Viair 400C Compressor
Voltage: 12 volts
Max Amperage: 26 amps
Max Duty Cycle: 33% @ 100 PSI
Max Working Pressure: 150 PSI
Length: 9 in (228.6 mm)
Width: 4 in (101.6 mm)
Height: 7 in (177.8 mm)
Weight: 8 lbs (3.63 Kg)
WARNING: HORNS PRODUCE EXTREME LOUDNESS
Use this product in a safe and responsible manner, at a distance of at aleast 100 feet from others.
Proper Hearing protection must be worn when using this airhorn. Hearing loss or permanent damage may result from unsafe use.
Never operate this product in a closed environment or close to pedestrians or others.
It is the consumer's responsibility to comply with local noise ordinances and D.O.T. sound level laws.
* Heavy Duty 400C Air Compressor
* Extra Large Five Gallon Air Tank
* 1 Year Manufacturer's Warranty
* Max Honk Time: 5 Seconds
Nathan Airchime P5
Length: 19.5 in (495.3 mm)
Width: 19.75 in (501.65 mm)
Height: 10 in (254 mm)
Port: 1/2in NPT
5 Gallon 8 Port Tank
Length: 20.5 in (520.7 mm)
Diameter: 9.5 in (241.3 mm)
Height: 11.5 in (292.1 mm)
Weight: 20 lbs (9.07 Kg)
Viair 400C Compressor
Voltage: 12 volts
Max Amperage: 26 amps
Max Duty Cycle: 33% @ 100 PSI
Max Working Pressure: 150 PSI
Length: 9 in (228.6 mm)
Width: 4 in (101.6 mm)
Height: 7 in (177.8 mm)
Weight: 8 lbs (3.63 Kg)
WARNING: HORNS PRODUCE EXTREME LOUDNESS
Use this product in a safe and responsible manner, at a distance of at aleast 100 feet from others.
Proper Hearing protection must be worn when using this airhorn. Hearing loss or permanent damage may result from unsafe use.
Never operate this product in a closed environment or close to pedestrians or others.
It is the consumer's responsibility to comply with local noise ordinances and D.O.T. sound level laws.
Details
- HK-P5-540
- HK-P5-540
- 00817562021929
- HornBlasters
- New
Categories
Shipping Information
- Item Requires Shipping
- 76.0 lbs.
- W29.0000” x H21.0000” x L31.0000”
- Free Shipping
