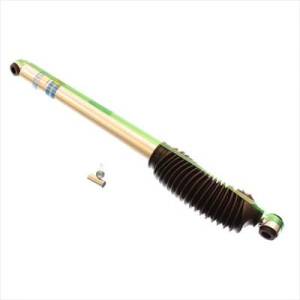

BILSTEIN 5100 Series, 33-185569 46mm Monotube Shock Absorber

Bilstein's 5125 Series offers Bilstein technology for custom lifted applications. 5125 Series shocks feature Bilstein's superior single tube high gas pressure design for the upmost in consistent fade-free performance and long life. Features include: Monotube gas pressure construction, Self-Adjusting Deflecting Disc Valving, High-Flow Piston Reduces Harshness, Independent Rebound & Compression Tuning, Larger Working Piston Area for Exact Damping, Superior Control for Large Diameter Tires, Available by travel lengths for custom applications.

Bilstein 5125 Series Shock Absorber
Collapsed Length (IN): 17.91
Extended Length (IN): 29.7
Travel Length (IN): 11.79
Compression: 700
Rebound: 2550
Lower Mount: 5/8" Eye
Upper Mount: 5/8" Eye
Shaft Diameter: 14mm
Reservoir: No
Finish: Zinc plated
Body Design: 46mm ID smooth body (Non-coilover)
Internal Design: Mono tube
Boot Included: Yes
Mounting Parts Included: 1/2" sleeves
